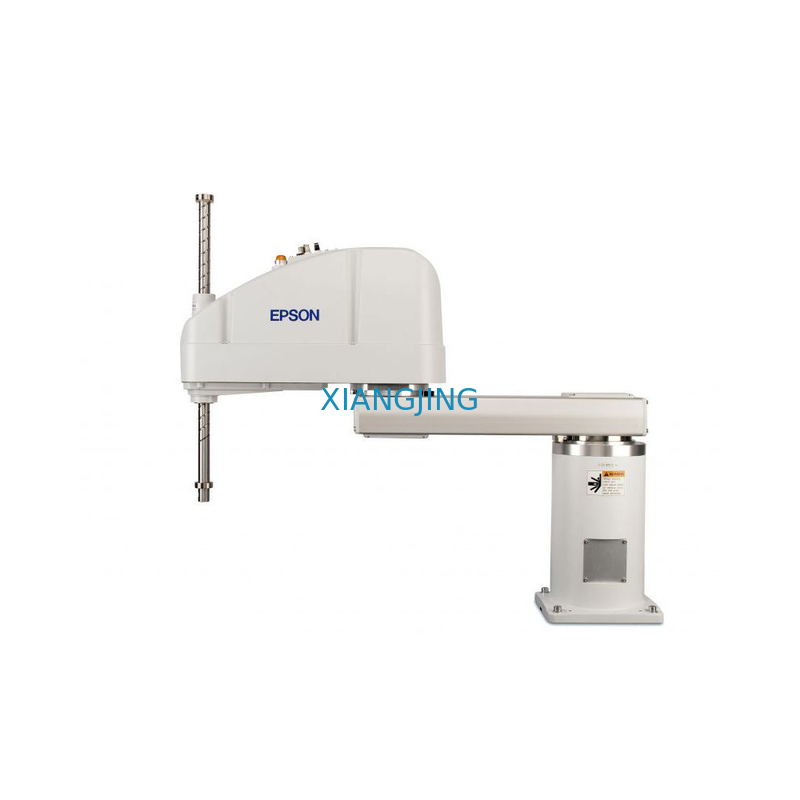

G10 - 854s G10 Epson Scara Robot Arm For High Speed Multi Effector Assembly Kitting
Product Details:
| Brand Name: | Epson |
| Model Number: | G10/G20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50+units+month |
|
Detail Information |
|||
| The Third Joint Top Pressure: | 250 N | Origin Return: | No Need To Reset The Origin |
|---|---|---|---|
| User Circuit: | 15 Pin (D-Sub Analog Interface), 9 Pin (D-Sub Analog Interface) | User Gas Circuit: | ∅4mm × 2, ∅6mm × Two |
| Installation Environment: | Standard/clean And Anti-static * 3/protection * 4 | Applicable Controller: | RC700-A |
| Safety Standards: | CE, KC, UL | ||
| High Light: | Epson Scara Robot Arm,G10 - 854s Epson Robot Arm,G10 Epson Robot Arm |
||
Product Description
G10 series provides high-performance robots for demanding high load applications. The G10 high rigid arm, coupled with our PowerDrive servo technology, achieves Epson's desired high performance. In addition, since the Epson G10 also has industry-leading ease of use, the G series has become the main reason for customers to favor robots.
High performance
Large range of motion, Max-E design can achieve large space utilization
0.37 second cycle time, which can improve the total throughput of parts
Excellent acceleration/deceleration rate, smooth start/stop
High speed up to nearly 11000 mm/s, allowing parts to run quickly and accurately
Unique high rigid arm design, low residual vibration
High load and high performance
The maximum payload can reach 10kg, and the rated payload is 5kg
Higher duty cycle and overall performance than competitive products
Diversified arm types and configurations
Both 650 and 850 mm arm lengths are available, enabling customers to choose the best working arm
Table top, ceiling and side wall installation model
Models conforming to ISO cleanliness (ISO14644-1:2015) and ESD standards are suitable for semiconductor and electrostatic sensitive applications, such as hard disk drive assembly
The Z-axis provides 180 mm (150 mm, clean) and 420 mm (390 mm, clean) arm lengths
Powerful controller and development software
Epson RC+has industry-leading ease of use, which can shorten development time
Double layer controller can realize G10 robot solution with high performance or low cost
Integrated options can maximize system performance and reduce overall development time (see the options page for more information)
High performance processing power is many times faster than competitors' products
Applicable to various applications and industries
Automobile - mirror/glass assembly, headlight and tail lamp assembly and test, gearbox assembly, clutch assembly, fuel injection nozzle assembly, instrument panel assembly, hood and trunk lock assembly
Consumer products - home appliance assembly, paint brush assembly, electric toothbrush assembly, saw assembly, speaker manufacturing, weed trimmer assembly, connector assembly
Industrial products - Casting machine loading/unloading, smoke detector assembly, optical fiber connector assembly, bulb assembly, hydraulic valve testing
Telecommunications - mobile phone assembly and testing, radio assembly and testing
Pharmaceutical - customized prescription drug filling, tablet packaging, protein crystal structure analysis
Solar energy - panel assembly
Packaging - meat packaging, cutting and binding of packaging boxes, packaging of plastic parts, straw packaging, product packaging
Semiconductor - assembly and testing of customized chips, circuit welding, automatic testing of circuit boards, assembly of aerospace electronic components
Food - meat processing, vegetable picking and cutting, product packaging
Electronics - PC board inspection, automatic cleaning of circuit board components
