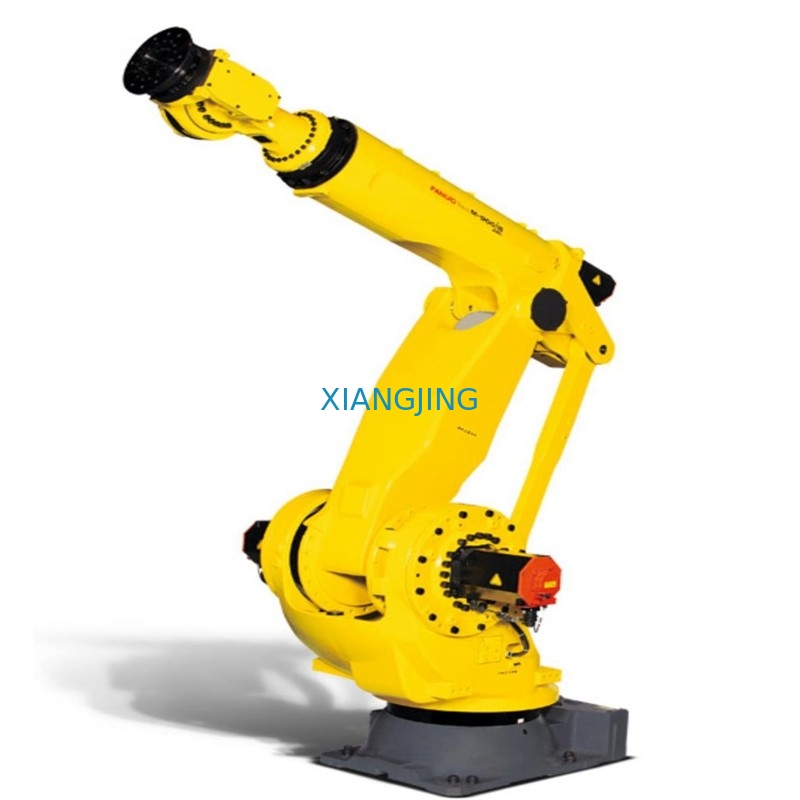

M-900 IB 280 6 Axis Robot Robotic Handling And Drilling Robot For Industrial Field
Product Details:
| Place of Origin: | Japan |
| Brand Name: | FANUC |
| Model Number: | M-900iB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 2 weeks |
|
Detail Information |
|||
| Product Name: | Used Industrial Robot | Axis: | 6 |
|---|---|---|---|
| Brand: | Fanuc | Payload: | 280KG |
| Reach: | 3103mm | ||
| High Light: | M-900 Handling And Drilling Robot,IB 280 6 axis industrial robot,Robotic Handling And Drilling Robot |
||
Product Description
6 axis robot M-900 iB 280 robotic total station handling and drilling robot for industrial field
Based on the extremely capable M-900iB/360, the M-900iB/280 features a completely redesigned J3 arm to provide maximum stiffness. The M-900iB/280 has been tested to ISO 9283 rigidity standards and exhibits a very high level of static compliance. This makes it ideally suited to operations where pressure is applied to the tool and accuracy essential.
Main Features
1. The stiffness specialist
The M-900iB/280 has been purposely developed for flow drill screwing and roller hemming, as well as a range of other applications that demand enhanced rigidity from a robot.2. Various mounting options
This model comes with ceiling, floor, angle and wall mounting options where space is a concern.3. Stiff but flexible
Six axes provide the tool dexterity required to reduce cycle times on operations such as roller hemming.|
Product name
|
6 axis robot M-900 iB 280 robotic total station handling and drilling robot for industrial field
|
|
Controlled axes
|
6
|
|
Max. payload at wrist
|
280kg
|
|
Repeatability
|
±0.1mm
|
|
Reach
|
2655mm
|
|
Mass (without controller)
|
2670kg
|
|
Drive method
|
Electric servo drive by AC servo motor
|
|
Installation
|
Floor Inverted, Angle
|
|
Matching controller / Input power capacity
|
FANUC R-30iB Controller
FANUC R-30iB Mate Cabinet Controller FANUC R-30iB iPendant Touch Controller FANUC R-30iB A-Cabinet Controller FANUC R-30iB B-Cabinet Controller |
|
Robot Motion Speed
|
|
|
J1
|
110 °/s
|
|
J2
|
105°/s
|
|
J3
|
100°/s
|
|
J4
|
110°/s
|
|
J5
|
110°/s
|
|
J6
|
180°/s
|
|

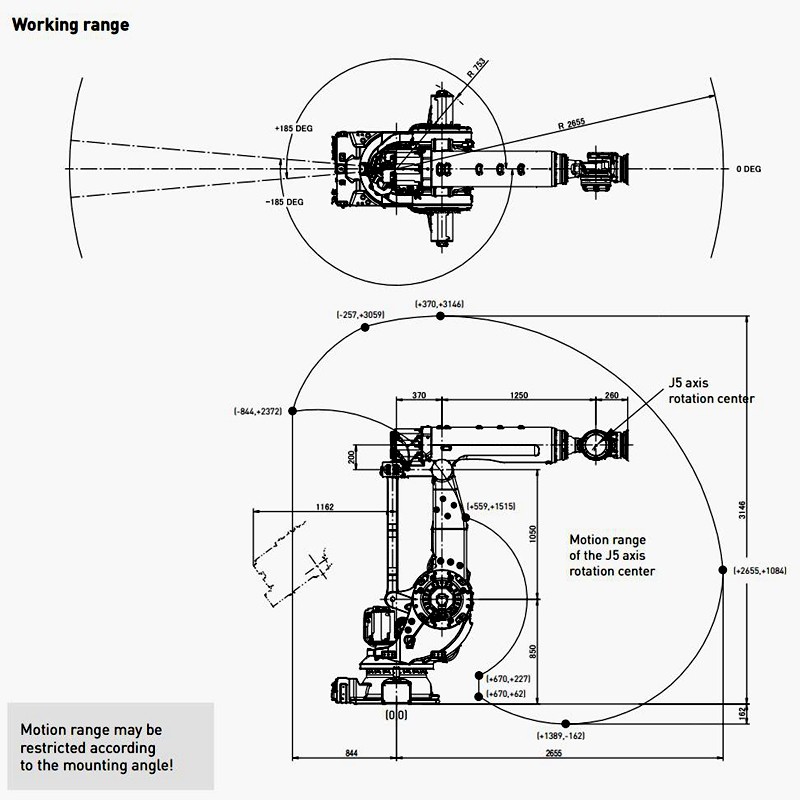

Robot Motion Range
|
|
|
J1
|
±360°
|
|
J2
|
±180°
|
|
J3
|
±180°
|
|
J4
|
±720°
|
|
J5
|
±250°
|
|
J6
|
±720°
|
|
Application
|

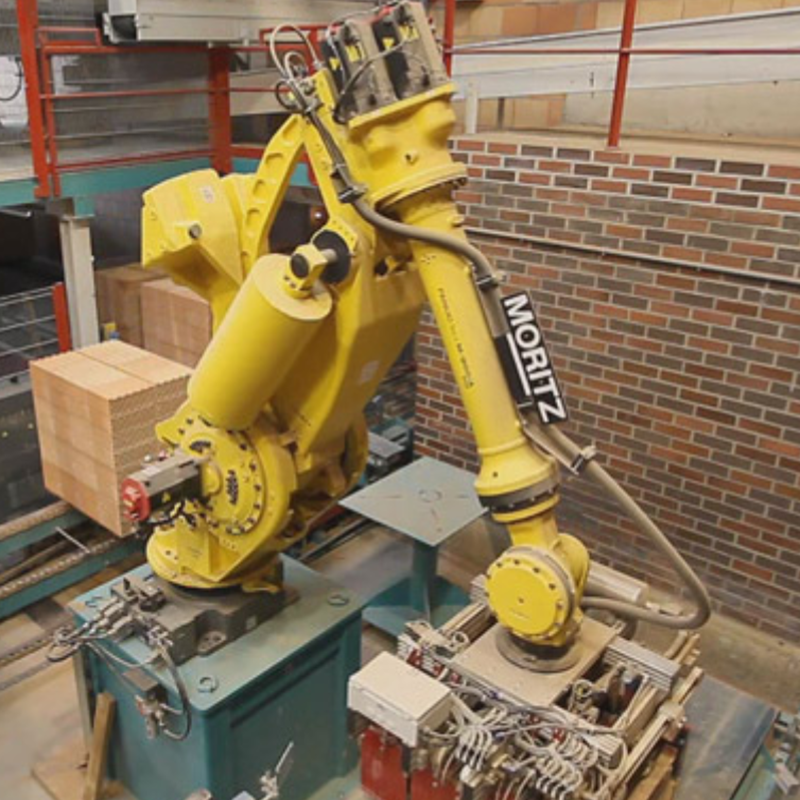

Palletizing, Assembly, Machine Loading, Machine Tending, Milling, Part Transfer ARC Welding Dispensing Robots
|
Infinite possibilities
1. Roboguide simulations
Using RoboGuide software we model your production activities. That way you see exactly what you get, how it works and the benefits for productivity, cost and cycle times.
2. Heavy payload 6 axis robot with very high structural rigidity and a wide envelope for large part handling.
3. At between 150 and 700 kg, the M-900 6 axis robot series offers one of the highest payloads on the market. Designed to handle single or multiple heavy parts and available with reaches extending to 3.7 m, the M-900 series is ideal for almost every application. Varied mounting options make this series very versatile and enable it to make maximum use of the work envelope.

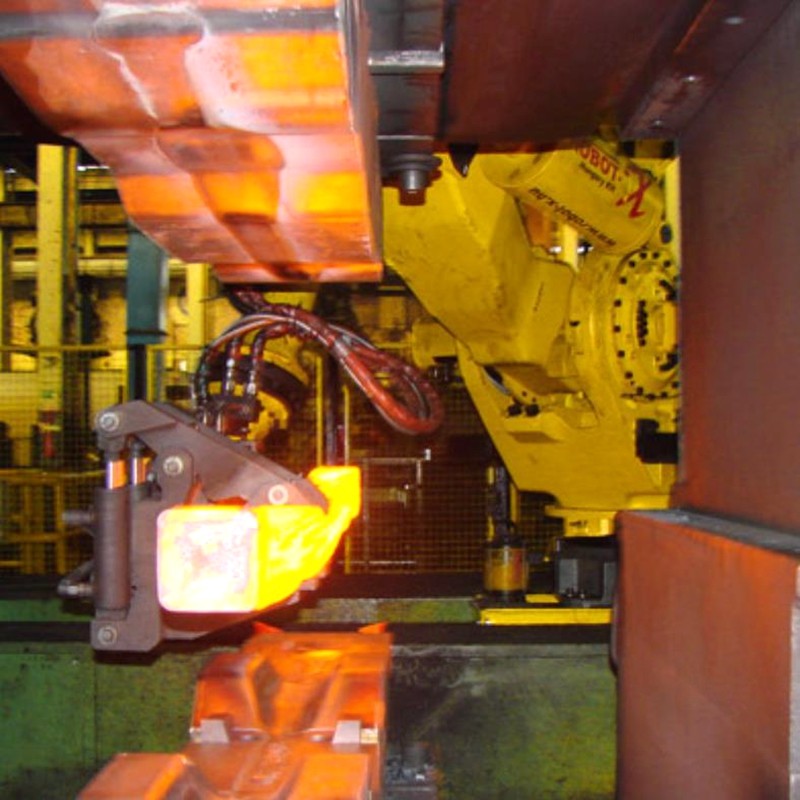

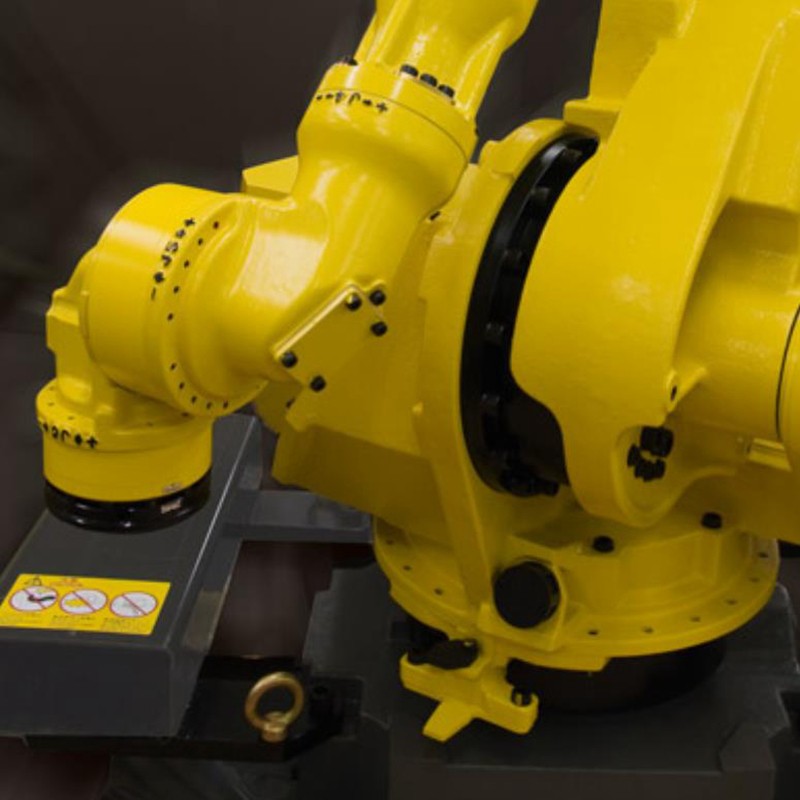

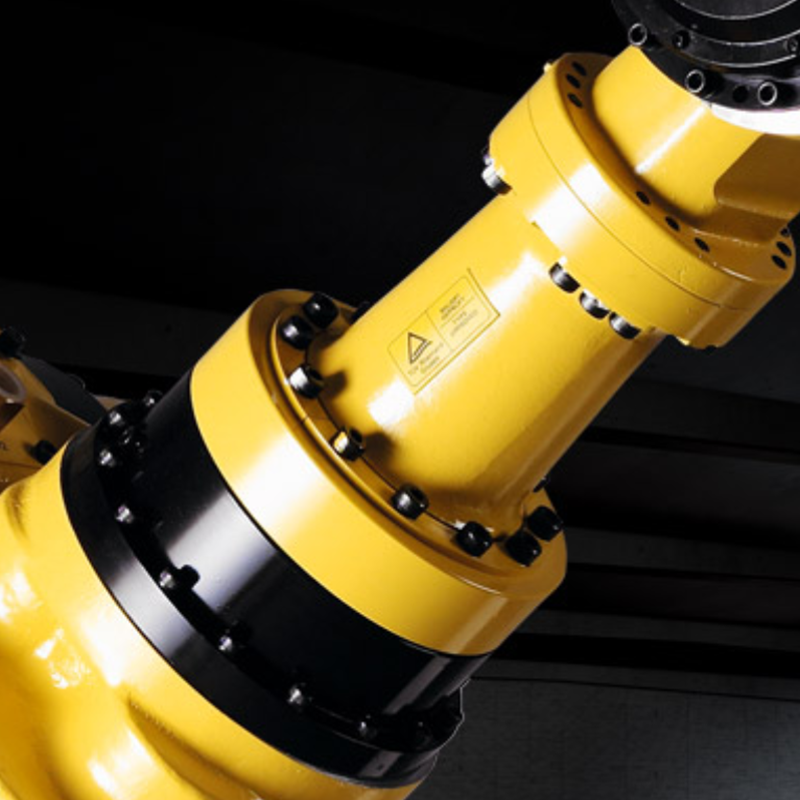

Detailed Images
