IRB4600 CNC Painting Used Industrial Robots With IRC5 Single Cabinet 6 Axis
Product Details:
| Place of Origin: | China |
| Brand Name: | ABB |
| Certification: | UL / IEC62619 / IEC62477 / EC62040 / CE / UN38.3 / ETL |
| Model Number: | IRB4600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $53,000.00/sets 1-9 sets |
| Packaging Details: | IRB4600 CNC painting robot with IRC5 Single cabinet controller robot arm 6 axis industrial Packed with fumigation wooden box |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Use: | Medical Treatment | Product Name: | Robot Arm 6 Axis Industrial IRB4600 CNC Robot And Mechanical |
|---|---|---|---|
| Brand: | ABB | Model: | IRB4600 |
| Axis: | 6 | Protection: | IP 67 |
| Mounting: | Any Angle | Controller: | IRC5 Single Cabinet, |
| Reach (m): | 2.05 | Payload (kg): | 20KG |
| Mass: | 425kg | Port: | Shanghai |
| High Light: | IRB4600 Used Industrial Robots,CNC Painting Robot 6 Axis IRB4600,IRC5 Used Industrial Robots |
||
Product Description

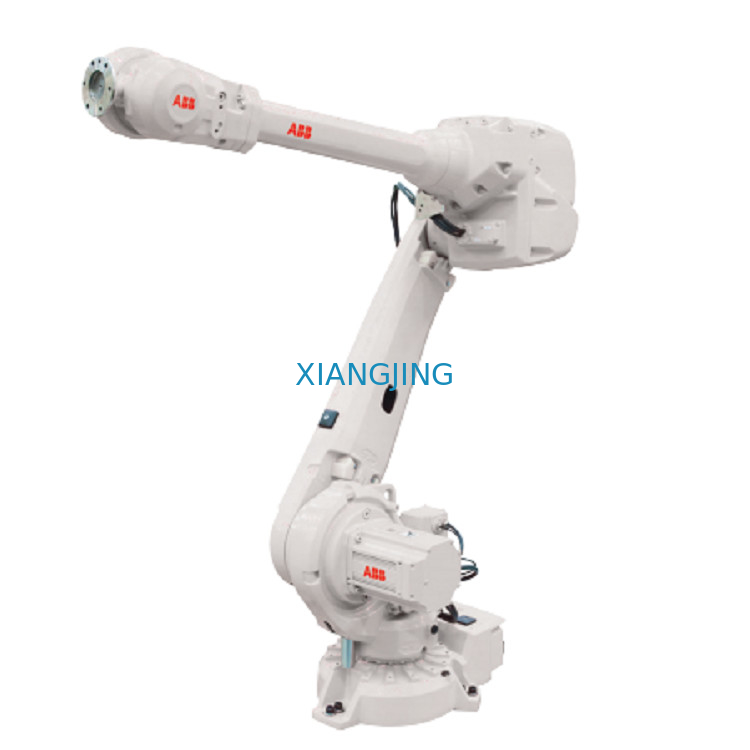

Used IRB4600 CNC painting robot with IRC5 Single cabinet controller robot arm 6 axis industrial
New Design. New Features. New Technologies.
IRB 4600 is a highly productive general purpose robot optimized for short cycle times where compact robots can help create high density cells. The IRB 4600 enables more compact manufacturing cells with increased production output and higher quality - and that means improved productivity
Thanks to the new compact and optimized design resulting in a low weight, the IRB 4600 can cut the cycle times of the industry benchmark by up to 25%. The maximum acceleration achievable is highest in its class, together with high maximum speeds. With the high acceleration it is possible to use to avoid obstacles or to follow the path. The benefit is increased production capacity and higher productivity.
Ultra-wide working range
You can position the IRB 4600 in the most favourable way with regard to reach, cycle time and auxiliary equipment. Flexible mounting with floor, tilted, semishelf or inverted mounting is very useful when you are simulating the best position for your application.
Compactness
The small footprint, the slim swing base radius around axis 1, the fine elbow behind axis 3, the small lower and upper arms, and the compact wrist all contribute to the most compact robot in its class. With the IRB 4600 you can create your production cell with reduced floorspace by placing the robot closer to the served machines, which also increases your output and your productivity.
ABB has the most comprehensive protection program on the market and it will be even further enhanced with the IRB 4600. Foundry Plus includes IP 67, resistant paint, rust protected mounting flange and protection for molten metal spits on non-moving cables on the rear of the robot and extra protection plates over the floor cable connections on the foot.
Optimize and go sharp
To get the IRB 4600 ready for the targeted applications you have access to high performing Workpiece Positioners, Track Motions, and the Motor and Gear Unit range.
To simulate your production cell to find the optimal position for the robot and program it offline, RobotStudio is available on subscription together with PowerPacs for several applications.
|
Robot version |
Position repeatability RP (mm) |
Path repeatability RT (mm)* |
| IRB 4600 60/2.05 |
0.06 |
0.46 |
| IRB 4600 45/2.05 |
0.05 |
0.13 |
| IRB 4600 40/2.55 |
0.06 |
0.28 |
| IRB 4600 20/2.50 |
0.05 |
0.17 |
|
Robot versions |
Reach (m) |
Payload (kg) |
Armload (kg) |
|
|
IRB 4600 60/2.05 |
2.05 |
60 |
20 |
|
|
IRB 4600 45/2.05 |
2.05 |
45 |
20 |
|
|
IRB 4600 40/2.55 |
2.55 |
40 |
20 |
|
|
IRB 4600 20/2.50 |
2.51 |
20 |
11 |
|
|
Number of axes |
6+3 external (up to 36 with MultiMove) |
|||
|
Protection |
Standard IP67, as option Foundry Plus 2 |
|||
|
Mounting |
Floor, shelf, inverted or tilted |
|||
|
Controller |
IRC5 Single cabinet, |
|||
