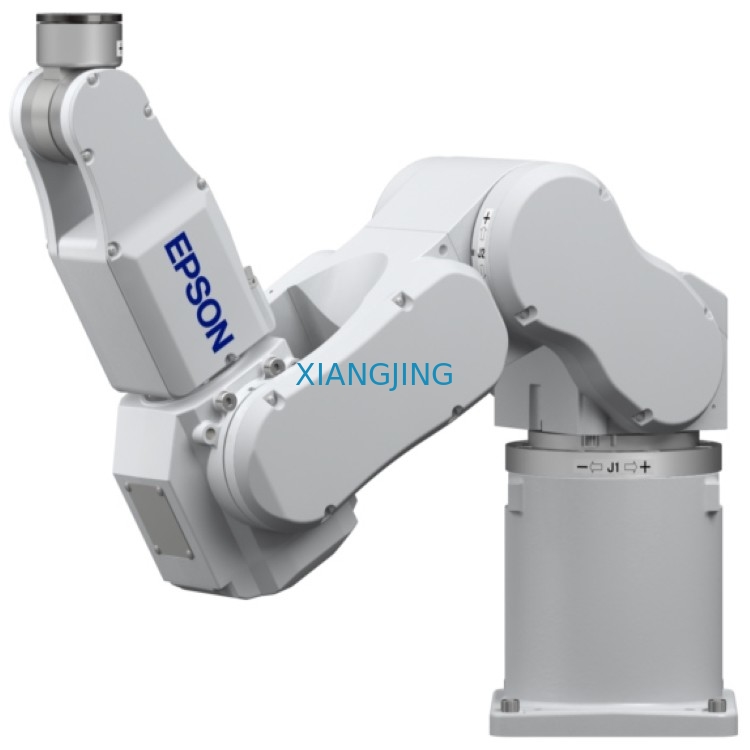

C4 Series EPSON Robot Arm 6 Axis With 4kg Payload Painting Robot
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | EPSON |
| Certification: | CE |
| Model Number: | C4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-9 sets |
| Packaging Details: | Robotic arm light and compact prosix C4 series 6 axis robot with 4kg payload painting robot packing with fumigation wooden frame |
| Supply Ability: | 99 Piece/Pieces per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition: | New |
| Weight: | 27kg, 27 Kg | Power: | 380V |
| Warranty: | 1 Year | Repeat Positioning Accuracy: | + / - 0.02mm |
| Load (kg): | Max 4 / Rated 1 | Cycle Time: | 0.37 Sec |
| Installation Type: | Table, Ceiling , Angle | Cleanliness And ESD Standard: | ISO 3 Clean & ESD |
| Subscriber Line: | Wire: 9/Air: 4 | Temperature: | 5- 40 Deg C |
| Humidity: | 10 - 80% (non Condensing) | Braking: | All 6 Axes Have |
| After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service | Local Service Location: | None |
| After-sales Service Provided: | Online Support | Port: | Shanghai |
| High Light: | C4 EPSON Robot Arm,EPSON used Robotic arm,EPSON Robot Arm 6 Axis |
||
Product Description
used Robotic arm light and compact prosix C4 series 6 axis robot with 4kg payload painting robot
Key Features:
- Compact, flexible six-axis robot Especially useful within narrow workspaces
- Extensive mounting options Floor, wall, ceiling and sunken mounting are possible
- Reduced vibration QMEMS technology allows faster, more accurate operation
- Fully integrated Complete Epson solution including robot, controller and software
- Strength without weight Impressive lifting capability without added weight or bulk
High Speed - Exceptional Flexibility
- Fast Cycle Times with crisp motion
- Best in Class Motion Range
- Compact design for maximum flexibility
- ISO Clean & ESD Compliant Models
High Performance
- Industry leading cycle times
- Faster than many competitors SCARA's
- Up to 4Kg payloads while maintaining fast cycle times
- High precision with repeatabilities you come to expect from Epson
- QMEM's velocity feedback system for crisp motion
- SlimLine body design and ultra compact wrist provide maximum flexibility
- Best in class motion range to get to areas other small robots can't reach
Best in Class Controllers and Development Software
- Epson RC+ leads the industry in ease of use to save development time
- New RC700 Controller provides high peformance at a lower cost
- Integrated options to maximize system performance and reduce overall development time (see options page for more details)
- High performance processing power many times faster than competitors models
- Customers can now select their own PC for use with our RC700 PC-Driven controllers to achieve maximum performance for minimum cost
Fully Integrated Options
- Vision Guidance
- .NET Connectivity with RC+ 7.0 API
- DeviceNet, Profibus, EtherNet/IP, CC-Link Fieldbus Connectivity
- GUI Builder
- Additional Axes Control
- Conveyor Tracking
- Clean/ESD Models Available
