6 Axis Used EPSON Robot Arm C8L Manipulator Industrial Welding Robot
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Epson |
| Certification: | CE |
| Model Number: | C8L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-9 sets |
| Packaging Details: | Robotic arm price 6 axis C8L Manipulator with long distance Industrial welding robot packing with fumigation wooden frame |
| Supply Ability: | 99 Piece/Pieces per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC | Condition: | New |
| Weight: | 52 Kg | Power: | 380V |
| Warranty: | 1 Year | Product Name: | Cnc Robot Arm C8Lrobot Arm 6 Axis With Long Distance 6 Dof Robot |
| Repeat Positioning Accuracy: | +/-0.030mm | Payload: | 3kg/8kg |
| Cycle Time: | 0.38 Sec(3Kg Load ) | Installation Type: | Table, Ceiling |
| Protection Type: | IP67 Rated | Software: | EPSON RC+ 7.0 |
| Robot Cable: | 3M (Standard), 5m (Optional), 10m (Optional) | Guide Force Connection: | Guide Force Connector 6 Pin (Future) |
| Clean Type And Antistatic Type: | ISO 3 And Antistatic | After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
| Local Service Location: | None | After-sales Service Provided: | Online Support |
| Port: | Shanghai | ||
| High Light: | 6 axis EPSON Robot Arm,Epson industrial welding robot,C8L manipulator used robotic arm |
||
Product Description
used Robotic arm price 6 axis C8L Manipulator with long distance Industrial welding robot
| Axes | 6 |
| Payload | 8.0 kg |
| Reach | 901 mm |
| Repeatability | 0.03 mm |
| Robot Mass | 49 kg |

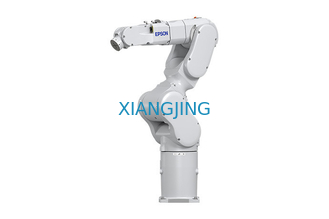

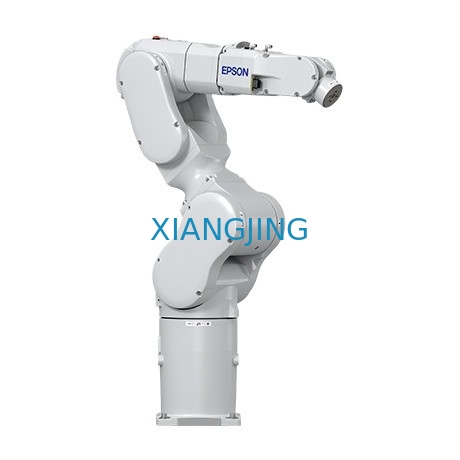

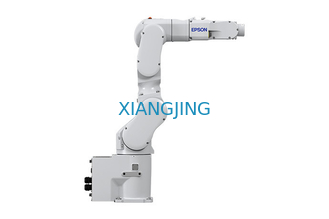

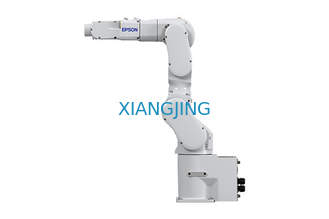

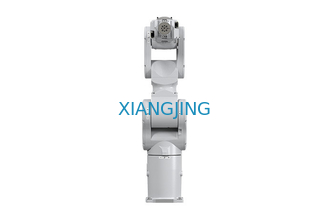

The Epson C8L robot is a 6-axis robot arm, it offers a 8.0 kg payload and 901 mm reach. The repeatability of the Epson C8L robot is 0.03 mm.
Arm Length / Reach:Horizontal Reach (to mounting face): 981mm
Horizontal Reach (to wrist center): 901mmRepeatability:+/-0.030mmPayload (Kg):Max 8 / Rated 3Cycle Time:0.38 sec (3 Kg Payload)Motion Range:
- J1 (Turning): +/-240 deg
- J2 (Lower Arm): -158 to +65 deg
- J3 (Upper Arm): -61 to +202 deg
- J4 (Wrist Roll): +/-200 deg
- J5 (Wrist Bend): +/-135 deg
- J6 (Wrist Twist): +/-360 deg
- J4: 0.47 kg•m2
- J5: 0.47 kg•m2
- J6: 0.15 kg•m2
- Mounting Type: Tabletop, Ceiling
- Clean & ESD: ISO 3 Clean & ESD
- Protected Models: IP67 Rated
Motor Wattage:
- J1: 1000 Watts
- J2: 750 Watts
- J3: 400 Watts
- J4: 100 Watts
- J5: 100 Watts
- J6: 100 Watts

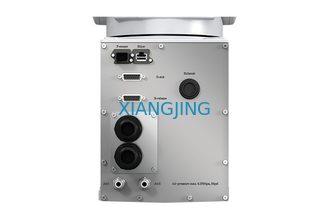

- Electric: 15 (D-Sub Connector)
- Ethernet: 8pin RJ45 (Cat5e or equivalent)
- Force Guide Connection: 6 pin for Force Guidance Connector (future)
- Air: 2 (6mm)
Humidity: 10 - 80% (non condensing)Weight:52 Kg (56Kg IP67 model)Robot Cables:3M (standard), 5M (optional), 10M (optional)Safety Regulations:
- ANSI/RIA R15.06-1999
- CE
- JIS B 8433
- Machinery Directive: EN ISO 12100-1,EN ISO 12100-2, EN ISO 10218, EN 60204-1,EN ISO 13849-1
- EMC Directive: EN55011,EN61000-6-2
- JIS B 8433-1
- Korean KC Mark compliant
- RoHS Directive
- REACH
Robot Options:
- Vision Guide (CV2 or PV1)
- DeviceNet, EtherNEt/IP, Profibus, CC-Link
- Conveyor Tracking
- Force Sensing
- .NET Support (EPSON RC+ 7.0 API)
- GUI Builder
High Performance
- Industry leading cycle times
- Tiny footprint and weight 2-3x less than competitors
- Up to 8Kg payloads while maintaining fast cycle times
- High precision with repeatability you come to expect from Epson
- Residual Vibration Technology for crisp motion and faster positioning
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
Specification
|
item
|
value
|
|
Applicable Industries
|
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
|
|
After Warranty Service
|
Video technical support, Online support, Field maintenance and repair service
|
|
Local Service Location
|
None
|
|
Showroom Location
|
None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC
|
|
Condition
|
New
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
Epson
|
|
Weight
|
52 kg
|
|
Power
|
380V
|
|
Certification
|
CE
|
|
Warranty
|
1 Year
|
|
|
Online support
|
|
Product name
|
Cnc robot arm C8Lrobot arm 6 axis with long distance 6 dof robot
|
|
Repeat positioning accuracy
|
+/-0.030mm
|
|
Payload
|
3kg/8kg
|
|
Cycle time
|
0.38 sec(3Kg Load )
|
|
Installation type
|
Table, Ceiling
|
|
Protection type
|
IP67 rated
|
|
Software
|
EPSON RC+ 7.0
|
|
Robot cable
|
3M (Standard), 5m (Optional), 10m (Optional)
|
|
Guide force connection
|
Guide force connector 6 pin (Future)
|
|
Clean type and Antistatic type
|
ISO 3 and Antistatic
|
Packing & Delivery
Robotic arm price 6 axis C8L Manipulator with long distance Industrial welding robot packing with fumigation wooden frame
