IRB1200 Used ABB Robot Pick And Place Handing With Gripper
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ABB |
| Certification: | CE |
| Model Number: | IRB1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | ONE Industrial Robots FD-V6S As OTC Welding Equipment Of 7 Axis Robot Arm Robotic Welding Machine packing with fumigation wooden frame. |
| Delivery Time: | 6-8working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 999 sets/month |
|
Detail Information |
|||
| Name: | USED Robot ABB IRB1200 6 ROBOT For 3c And Welding | Brand: | ABB |
|---|---|---|---|
| Model: | IRB1200 | Production Year: | 2000-2015 |
| Warranty: | 3 Month | Reach: | 0.7m |
| Payload: | 52kg | Reapetability: | 0.04 Mm |
| Axis: | 6 | ||
| High Light: | Handing Used ABB Robot,IRB1200 Used Robot Arm,Gripper Used ABB Robot |
||
Product Description

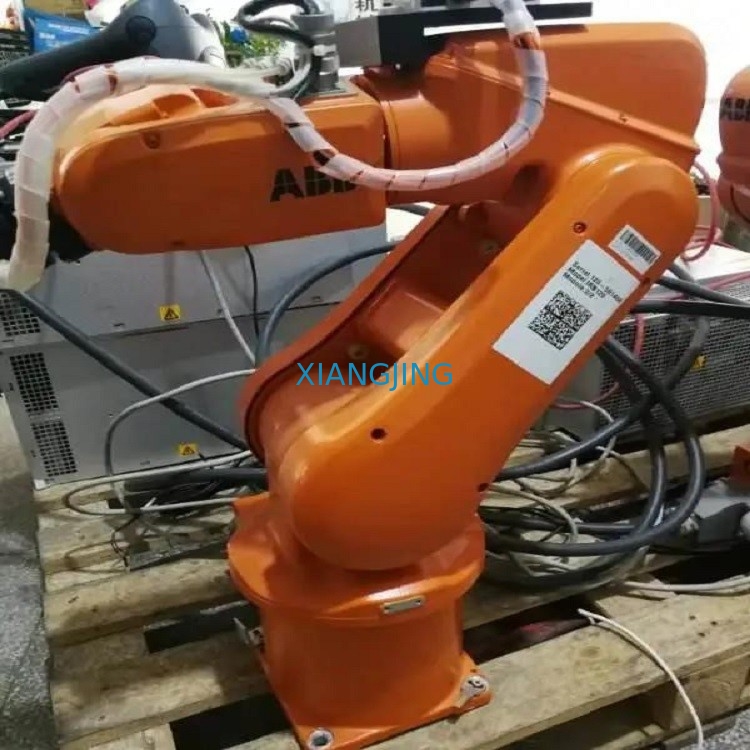

used universal robot arm IRB1200 humanoid robotic arm small robot arm 6 axis with IRC5 compact/IRC5 single cabinet controller
Features and benefits:
- 15% smaller cells that have 10% shorter cycle times
- Available with Food Grade Lubrication
- Optionally with SafeMove functionality
- Available with Foundry Plus 2 protection for harsh environments
- IP40 protection as standard; Clean Room, IP67 and Foundry Plus 2 protection are also available options
- 4 air ducts, 10 customer signals and Ethernet routed internally from wrist flange to foot
- Mountable at any angle
- Large usable working area in a compact footprint
Product Description
| Robot version | Reach (m) | Payload (kg) | Armload(kg) |
| IRB 1200-7/0.7 | 0.7 | 7 | 0.3 |
| IRB 1200-5/0.9 | 0.9 | 5 | 0.3 |
| Protection | Standard robot (IP40) or IP67, Foundry Plus 2 based on IP67, Food Grade Lubricant and Clean Room (ISO class 3) based on IP67 | ||
| Mounting | Any angle | ||
| Controllers | IRC5 compact/IRC5 single cabinet | ||
| Integrated signal and power supply | 10 Signals on wrist | ||
| Integrated air supply | 4 air on wrist (5 Bar) | ||
| Integrated ethernet | One 100/10 Base-TX ethernet port | ||
| Robot version | IRB 1200-7/0.7 | IRB 1200-5/0.9 |
| 1 kg picking cycle | ||
| 25 x 300 x 25 mm | 0.42 s | 0.42 s |
| Max. TCP Acceleration | 35 m/s*s | 36 m/s*s |
| Acceleration time 0-1 m/s | 0.06 s | 0.06 s |
| Position repeatability | 0.02 mm | 0.025 mm |
