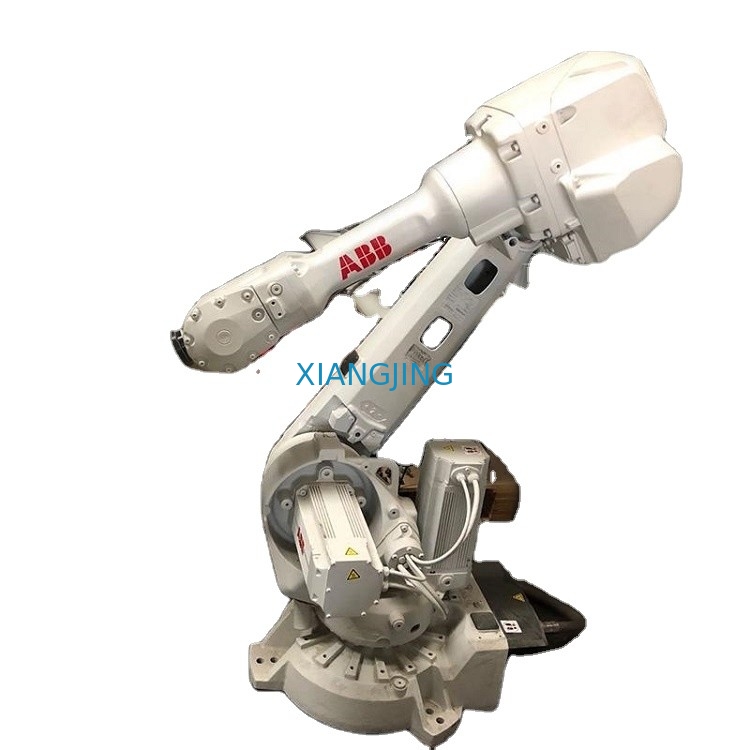

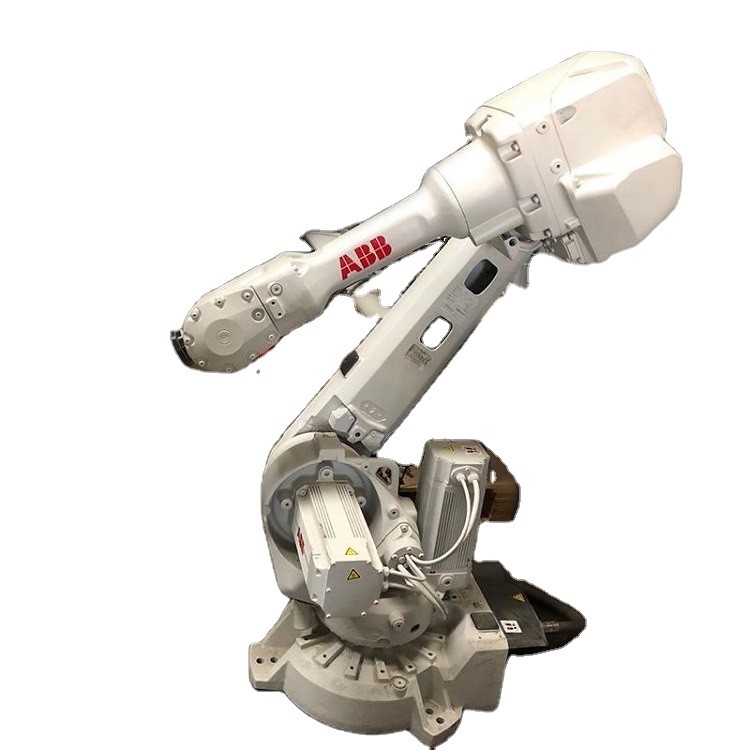

Industrial 6 Axis Used ABB Robot IRB2600 For Packing As Palletizing Robot
Product Details:
| Place of Origin: | Switzerland |
| Brand Name: | ABB |
Payment & Shipping Terms:
| Price: | $33,500.00/sets 1-4 sets |
|---|---|
| Packaging Details: | 6 Axis Robotic Arm ABB IRB2600 Of Industrial Robot For Packing As Palletizing Robot And Packing Machine packing with fumigation wooden frame, WG:1705KG<br>Controller and other parts packing with brown box, WG:75KG<br>Total WG:1780KG(>VG) |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM |
|---|---|---|---|
| Type: | IRB2600-20/1.65 | Reach: | 1650MM |
| Payload: | 20KG | Robot Base: | 676 X 511MM |
| Height: | 1382MM | Weight: | 272KG |
| Position Repeatability: | 0.04MM | Path Repeatability: | 0.13MM |
| Protection: | Standard IP67; Optional Foundry Plus 2 | Controller: | IRC5 Single Cabinet |
| Port: | Shanghai | ||
| High Light: | Industrial Used ABB Robot,6 Axis used Robotic Arm,ABB Industrial Robot IRB2600 |
||
Product Description
6 Axis used Robotic Arm ABB IRB2600 Of Industrial Robot For Packing As Palletizing Robot And Packing Machine
Main applications: Arc Welding Assembly Material Handling Machine Tending Material Removal Cleaning / Spraying Dispensing Packing
Sharp accuracy With the best accuracy in its class, the IRB 2600 can help you increase output with higher process speeds and lower scrap rates, resulting in improved productivity. This is particularly useful in process applications, such as arc welding. The high accuracy is achieved by use of the patented TrueMove™ motion control software. Short cycle times Thanks to the compact and optimized design resulting in a low weight, the IRB 2600 can cut the cycle times of the industry benchmark by up to 25 %. The patented QuickMove™ motion control software ensures that the maximum acceleration achievable is highest in its class, together with high maximum speeds. The benefit is increased production capacity and high productivity.
Large working range
The combination of large working range and flexible mounting makes it possible to reach machines to be served without interfering with auxiliary equipment. By optimizing the robot placement, you’ll benefit from higher productivity. Flexible mounting is also very useful when you are simulating the best position for your application. 2 as option. The IRB 2600 has the same small foot print as IRB 4600. With the IRB 2600 you can create your production cell with reduced floorspace by placing the robot closer to the served machines. The robots’ design makes it easier for the lower arm to reach straight downwards. Best protection available ABB has the most comprehensive protection program for industrial robots on the market. The IRB 2600 has IP67 as standard and FoundryPlus 2 as option.
Pay load: 6 kg, 10 kg
Reach: 1.2 m, 1.45 m
The IRB 2600 is the second model in the sharp generation range with enhanced and new capabilities. It is a compact robot with a high payload capacity. The design has been optimized for targeted applications like arc welding, material handling and machine tending. The IRB 2600 is available in three variants, with options for floor, wall, shelf, tilted or inverted mounting onfigurations.
More products:
KUKA robot
1. KR 6 R1820 6KG 6axis welding robot
2. KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3. KR 10 R1420 6 aixs 10kg welding robot
4. KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1. IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2. IRB 1520ID 6 axis 5kg payload for welding
3. IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1. Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2. Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
|
item
|
value
|
|
Warranty
|
1 year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Switzerland
|
|
Brand Name
|
ABB
|
|
Type
|
IRB2600-20/1.65
|
|
Reach
|
1650MM
|
|
Payload
|
20KG
|
|
Robot base
|
676 x 511MM
|
|
Height
|
1382MM
|
|
Weight
|
272KG
|
|
Position repeatability
|
0.04MM
|
|
Path repeatability
|
0.13MM
|
|
Protection
|
Standard IP67; optional Foundry Plus 2
|
|
Controller
|
IRC5 Single Cabinet
|
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Robot/ Robot Positioner/ Robot Track/ Robot Gripper/ Robot Control System
4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken: English, Chinese
