Aluminum Alloy Used ABB Robot
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ABB |
| Certification: | UL / IEC62619 / IEC62477 / EC62040 / CE / UN38.3 / ETL |
| Model Number: | irb 2600ID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets >=1 sets |
| Packaging Details: | One 6 axis robotisc arm industrial ABB irb 2600ID applying as cnc robot payload 10kg packing with fumigation wooden frame, WG: 273 KG<br>Controller and other parts packing with brown box, WG: 75KG<br>Total WG: 348KG(>VG) |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | IRB 2600ID | Number Of Axes: | 6 |
|---|---|---|---|
| Max Payload: | 15 Kg | Maximum Reach: | 1850mm |
| Pose Repeatability(ISO 9283): | 0.026 Mm | Teach Pendant: | IRC5 Single Cabinet |
| Mounting Position: | Floor, Wall, Shelf, Tilted, Inverted | Weight: | 273 Kg |
| Material: | Aluminum Alloy | Protection Rating: | Standard IP67 For Base And Lower Arm IP54 For Upper Arm |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Gearbox |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, France, Germany, Pakistan, Russia, Spain, Japan, Romania |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining | Showroom Location: | United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, India, Mexico, Russia, Spain, Algeria, Japan, Australia, Morocco |
| Warranty: | 1 YEAR | Port: | Shanghai |
| Highlight: | Aluminum alloy Used ABB Robot,Used cnc robot,IRB 2600ID Used ABB Robot |
||
Product Description

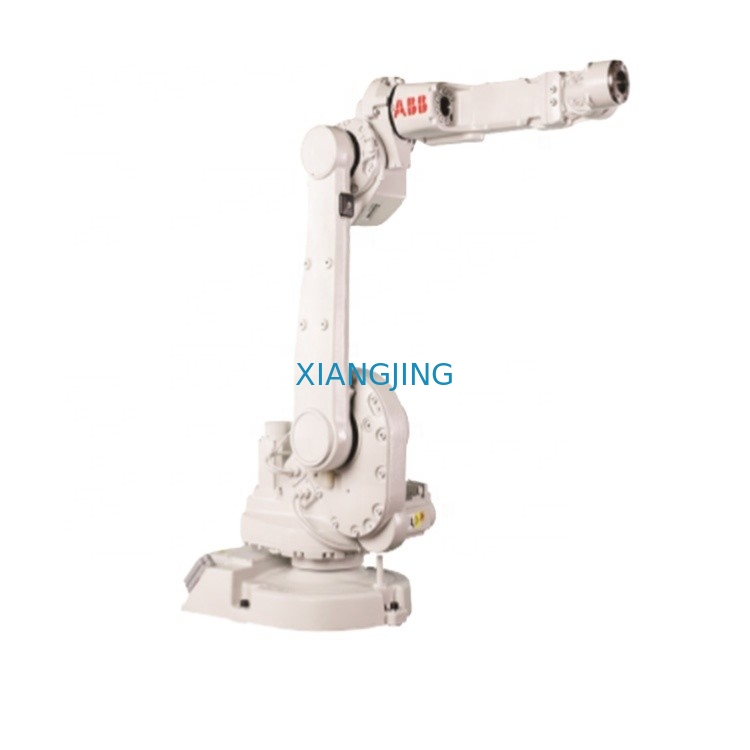

6 axis robotisc arm industrial irb 2600ID applying as cnc robot payload 10kg
Main Specifications
Model: IRB 2600ID-15/1.85
Maximum reach: 1850 mm
Maximum payload:15 kg
Pose repeatabilit: ± 0.04 mm
Number of axis: 6
Weight: 272 kg
Protection rating: IP67
| Axes | 6 |
| Payload | 8.0 kg |
| Reach | 2000 mm |
| Repeatability | 0.023 mm |
| Robot Mass | 276 kg |
The ABB IRB 2600ID-8/2.00 robot is a 6-axis robot arm, it offers a 8.0 kg payload and 2000 mm reach. The repeatability of the ABB IRB 2600ID-8/2.00 robot is 0.023 mm.
Water-Cooled Torch Cable Assembly, ABB IRB 2600ID-8/2.0
Features:
- Cable assembly for a Magnum® Pro Water-Cooled Robotic Torch with a ABB IRB 2600ID-8/2.0
- Compatible with 4R100 and 4R220 wire feeders
- 1/pack
| Production Name | 6 Axis robot arm of ABB IRB 2600 Material Handling robot arm |
| Model | IRB 2600ID-15/1.85 |
| Application | pick and place robot |
| Maximum reach | 1850 mm |
| Maximum payload | 15 kg |
| Pose repeatability (ISO 9283) | ± 0.026 mm |
| Number of axis | 6 |
| Mounting position | Floor, wall, shelf, tilted, inverted |
| Footprint | 676mm x511mm |
| Weight | 273 kg |
| Protection rating | Standard IP67 for base and lower arm IP54 for upper arm |
| Controller | IRC5 Single cabinet |
| Motion range | |
| A1 | 180° to -180° |
| A2 | 155° to -95° |
| A3 | 75° to -180° |
| A4 | +175° to -175°° |
| A5 | 120° to -120° |
| A6 | +400° to -400° |
1. Swift delivery
For common parts, we can deliver the goods within 3 days
2. Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3. Quality Assurance
4. Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5. Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
