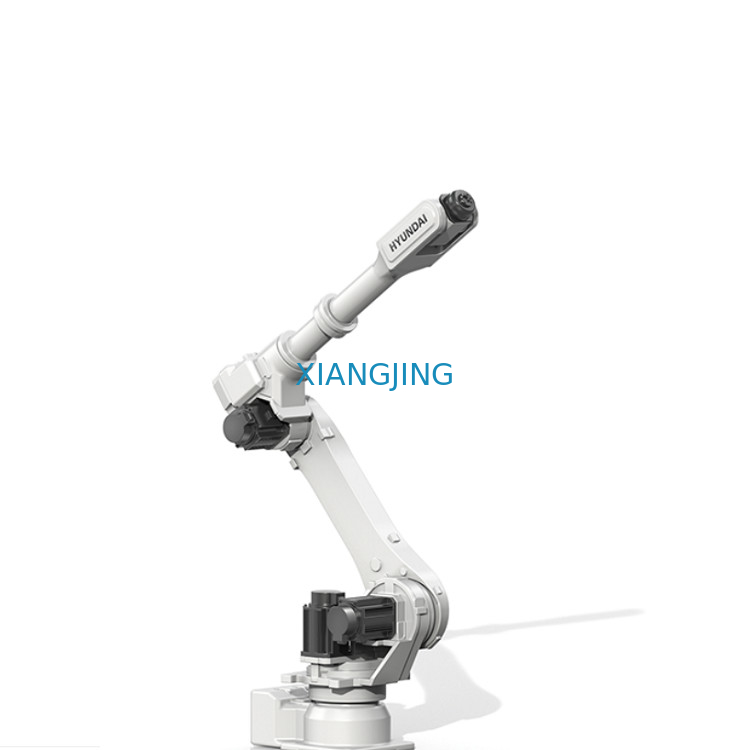

Used Welding Robot Arm 6 Axis Industrial Hyundai HH10L Welding Robot
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Hyundai |
| Certification: | CE |
| Model Number: | HH4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,000.00/sets 1-9 sets |
| Packaging Details: | Packed with fumigation wooden box |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Use: | Medical Treatment | Product Name: | Welding Robot Arm 6 Axis Industrial Hyundai HH10L Welding Robot |
|---|---|---|---|
| Brand: | Hyundai | Model: | HH10L |
| Axis: | 6 | Protection: | IP 54 |
| Mounting: | Any Angle | Controller: | Hi5a-S30,S00,S80/Hi5a-S20 |
| Reach (mm): | 1964 | Payload (kg): | 10 |
| Mass: | 230kg | Port: | Shanghai |
| High Light: | Used Welding Robot Arm HH4,Hyundai HH10L industrial welding robot,Welding Robot Arm 6 Axis HH4 |
||
Product Description
used welding robot arm 6 axis industrial Hyundai HH10L welding robot with welder and welding torch
Product Description
| 1 kg picking cycle | IRB 120 |
| 25 x 300 x 25 mm | 0.58 s |
| 25 x 300 x 25 with 180° axis 6 reorientation |
0.92 s |
| Acceleration time 0-1 m/s | 0.07 s |
| Position repeatability | 0.01 mm |
| Axis movement | Working range | Axis max speed IRB 120 |
| Axis 1 rotation | +165° to -165° | 250 °/s |
| Axis 2 arm | +110° to -110° | 250 °/s |
| Axis 3 arm | +70° to -110° | 250 °/s |
| Axis 4 wrist | +160° to -160° | 320 °/s |
| Axis 5 bend | +120° to -120° | 320 °/s |
| Axis 6 turn |
Default: +400° to -400° Max. rev: +242 to -242 |
420 °/s |
| Robot version | Reach (m) | Payload (kg) | Armload (kg) |
| IRB 120-3/0.6 | 0.58 | 3* | 0.30 |
| Number of axes | 6 | ||
| Protection | IP 30 | ||
| Mounting | Any angle | ||
| Controller | IRC5 Compact / IRC5 Single cabinet | ||
| Integrated signal supply | 10 signals on wrist | ||
| Integrated air supply | 4 air on wrist (5 bar) | ||
Compact and lightweight
IRB 120’s compact design enables it to be mounted virtually anywhere at any angle without any restriction - for example inside a cell, on top of a machine or close to other robots.
IRB 120 is also the most portable and easy to integrate on the market with its 25 kg weight. The smooth surfaces are easy to clean and the cables for air and customer signals are internally routed, all the way from the foot to the wrist, ensuring that integration is effortless.
Multipurpose
IRB 120 is ideal for a wide range of industries including the electronic, food and beverage, machinery, solar, pharmaceutical, medical and research sectors.
The Food Grade Lubrication (NSF H1) option includes Clean Room ISO Class 5, which ensures uncompromising safety and hygiene for food and beverage applications.
Fast, accurate and agile
Designed with a light, aluminum structure, the motors ensure the robot is enabled with a fast acceleration, and can deliver accuracy and agility in any application.
Optimized working range
IRB 120 has a horizontal reach of 580 mm, the best in class stroke, the ability to reach 112 mm below its base and a very compact turning radius.
IRC5 Compact controller – optimized for small robots
ABB’s new IRC5 Compact controller presents the capabilities of the IRC5 controller in a compact format. It brings accuracy and motion control to applications which have been exclusive to large installations and enables easy commissioning through one phase power input, external connectors for all signals and a builtin expandable 16 in, 16 out, I/O system.
RobotStudio for offline programming enables manufacturers to simulate a production cell to find the optimal position for the robot, and provide offline programming to prevent costly downtime and delays to production.
Reduced footprint
The combination of the new lightweight architecture of the IRB 120 with the new IRC5 Compact controller introduces a significantly reduced footprint.
Product image
