Mig Welding OTC FD-B6L Second Hand Robot With DM350 DM500 Welding Machine
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | OTC |
| Certification: | UL / IEC62619 / IEC62477 / EC62040 / CE / UN38.3 / ETL |
| Model Number: | OTC FD-B6L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 6 axis robot arm OTC FD-B6L welding robot solution with DM350 DM500 welding machine for mig welding packing with fumigation wooden frame, WG:1705KG<br>Controller and other parts packing with brown box, WG:75KG<br>Total WG:1780KG(>VG) |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Number Of Axis: | 6 | Maximum Payload Capacity: | 6 Kg |
|---|---|---|---|
| Positional Repeatability: | ± 0.08 Mm | Drive Capacity: | 4832 W |
| Working Range, Arm, J1 (Rotation): | ±170 ° (±50°) | Working Range, Arm, J2 (Lower Arm): | -155 ° To +100° |
| Working Range, Arm, J3 (Upper Arm): | -170° To + 190° | Mass: | 287 Kg |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Gearbox |
| Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Egypt, Turkey, United States, France, Peru, Saudi Arabia, Pakistan, Russia, Spain, Thailand, Japan, Malaysia, Morocco, UAE |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company | Showroom Location: | Egypt, Turkey, United States, Italy, France, Germany, Peru, Pakistan, Spain, Chile, UAE, Colombia |
| Port: | Shanghai | ||
| High Light: | OTC second hand robot DM350,6 axis second hand robot,OTC second hand robot DM500 |
||
Product Description

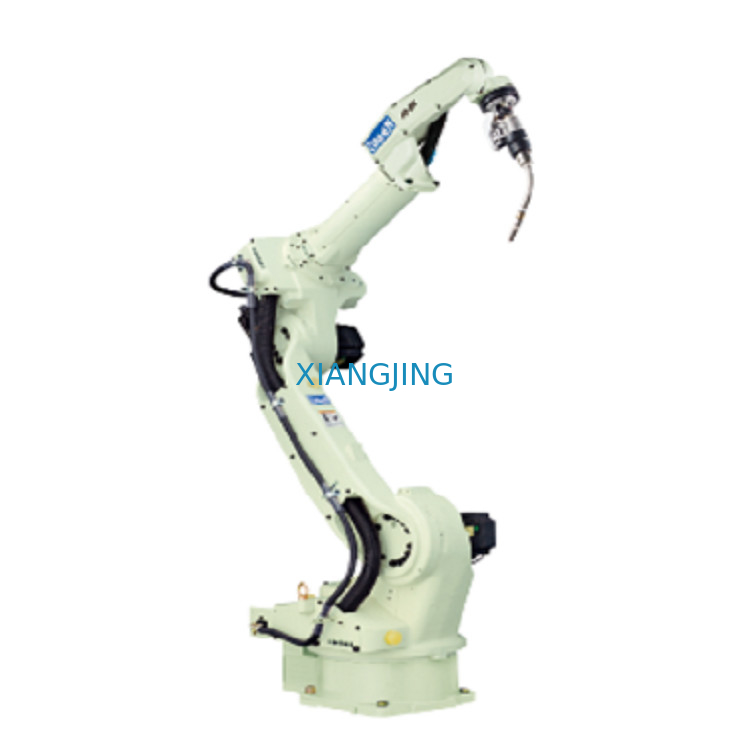

6 axis robot arm OTC FD-B6L used welding robot solution with DM350 DM500 welding machine for mig welding
Due to the industry’s fastest speeds, cycle times are reduced. Built-in wrist motors avoid interference with jigs and workpieces. Designed to avoid interference behind the arm (All cables required for synchro-feed welding are already built into the robot). Maximum payload is 6kg. Can be equipped with various torches and sensors. It is good for handling application.
Feature:
- FD-B6L by extending the range of the arm, P point movement range of up to 2008mm
- It can be applied to a relatively large range of operation
- Long arm structure, higher operating efficiency
- Coaxial cable built structure, to minimize interference between cables and clamps, easier access to weld attitude
- Applied to arc welding, handling and other functions in the field, able to cope with the production and processing of various requirements
| Specification | Value |
|---|---|
| Number of Axes | 6 |
| Maximum Payload Capacity | 6 kg |
| Positional Repeatability | ± 0.08 mm |
| Drive Capacity | 4832 W |
| Working Range, Arm, J1 (Rotation) | ±170 ° (±50°) |
| Working Range, Arm, J2 (Lower Arm) | -155 ° to +100° |
| Working Range, Arm, J3 (Upper Arm) | -170° to + 190° |
| Working Range, Wrist, J4 (Swing) | ±155° (+/- 170°) |
| Working Range, Wrist, J5 (Bending) | -45° to + 225° |
| Working Range, Wrist, J6 (Twist) | ±205 ° (+/ 360°) |
| Maximum Velocity, Arm, J1 (Rotation) | 3.40 rad/s (195°/s) (3.05 rad/s (175°/s) |
| Maximum Velocity, Arm, J2 (Lower Arm) | 3.49 rad/s (200°/s) |
| Maximum Velocity, Arm, J3 (Upper Arm) | 3.49 rad/s (200°/s) |
| Maximum Velocity, Wrist, J4 (Swing) | 7.50 rad/s (430°/s) |
| Maximum Velocity, Wrist, J5 (Bending) | 7.50 rad/s (430°/s) |
| Maximum Velocity, Wrist, J6 (Twist) | 11.0 rad/s (630°/s) |
| Wrist Load, Allowable Moment, J4 (Swing) | 10.5 N*m |
| Wrist Load, Allowable Moment, J5 (Bending) | 10.5 N*m |
| Wrist Load, Allowable Moment, J6 (Twist) | 5.9 N*m |
| Wrist Load, Allowable Moment of Inertia, J4 (Swing) | 0.28 kg*m² |
| Wrist Load, Allowable Moment of Inertia, J5 (Bending) | 0.28 kg*m² |
| Wrist Load, Allowable Moment of Inertia, J6 (Twist) | 0.06 kg*m² |
| Arm operation cross-sectional area | 6.37 m² x 340° |
| Ambient Conditions | (0 to 45 °C), 20 ~ 80% RH (No condensation) |
| Mass | 287 kg |
| Upper arm payload capacity | 44.09 lbs. 20 kg |
| Installation type | Floor / Ceiling / Wall |
| Paint color | White (Munsell notation 10GY 9/1) |
