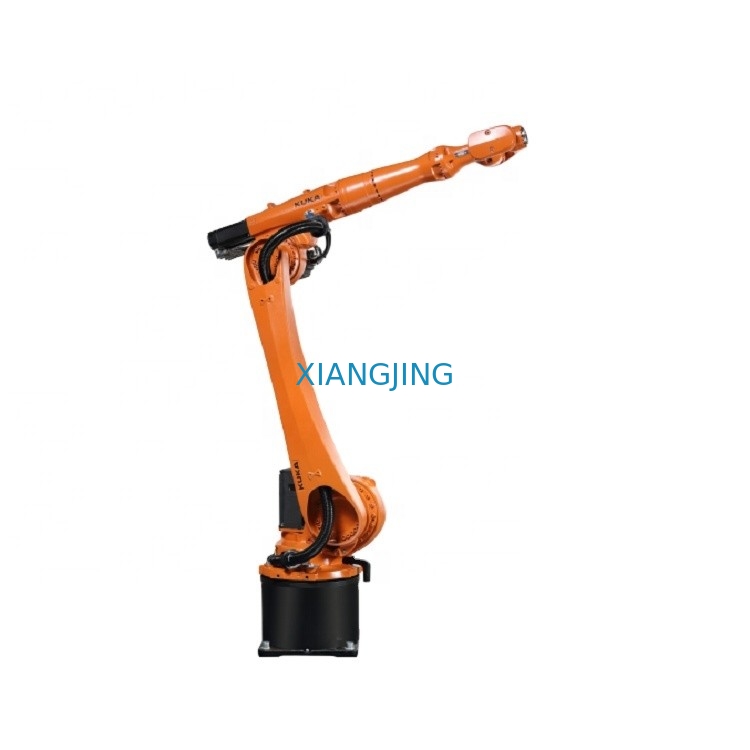

Kuka Industrial Used Welding Robot With Automatic Otc Welding Robot
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | KUKA |
| Certification: | CE |
| Model Number: | KR 16 R1610 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | ONE Kuka industrial robot arm 6 axis robot KR 16 R1610-2 with automatic otc welding robot with maximum payload 20 kg packing with fumigation wooden frame, WG:255KG |
| Supply Ability: | 999 Piece/Pieces per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC | Condition: | New |
| Weight: | 255 Kg, Approx. 255 Kg | Power: | 380v |
| Warranty: | 1 Year | Weight (KG): | 255 Kg |
| Maximum Reach: | 1612 Mm | Payload: | 20 Kg |
| Rated Payload: | 16 Kg | Pose Repeatability: | ± 0.04 Mm |
| Number Of Axes: | 6 | Footprint: | 430.5 Mm X 370 Mm |
| Teach Pendant: | KUKA SmartPAD | Protection Rating (IEC 60529): | IP65 |
| Controller: | KR C4 | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | None | After-sales Service Provided: | Online Support |
| Port: | Shanghai | ||
| High Light: | Industrial Used Welding Robot,Kuka Industrial Robot CE,Kuka Used Welding Robot |
||
Product Description
Used Kuka Industrial Robot Arm 6 Axis Robot KR 16 R1610-2 With Automatic Otc Welding Robot With Maximum Payload 20 Kg
The KR 16 R1610-2 is designed for a rated payload of 16 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used. The specific load case must be verified using KUKA.Load.
Information:
Axes: 6
Payload: 16.00 kg
Maximum extension: 1610.00 mm
Repeatability: 0.0300 mm ±
Controller :KR C4
Mounting: floor, ceiling, corner
Engine speed
J1. + 170 ° - 170 °
J2 + 45 ° - 190 °
J3. +156 ° - 120 °
J4. + 185 ° - 185 °
J5. + 120 ° - 120 °
J6. + 350 ° - 350 °
Robot applications
- Press tending
- Loading and unloading of parts
- Machining
- Handling of parts
- Arc welding
- Assembly of parts
This CYBERTECH KR16 R1610 robot has the latest kuka controller. It is very fast, light and versatile. It covers a very small work space because the overall dimensions are about 1.6 m. Its outreach is 1610 mm and its load on the wrist is 16 kg. Repeatability is about 0.03 mm. It has a short work cycle and a greater accuracy of the route compared to its counterparts.
This is a KR C4 controller, the latest in kuka, and has the characteristics of safety and flexibility.
This revolutionary technology from KUKA incorporates security control, robot control, motion control, logic control and process control into a common database to enhance intelligence sharing. The KR C4 is also easy to control thanks to the improved accessibility of the parts purified from the concepts of the predecessors to encourage conversation. The range of commands has also been improved with the editing functionality.
With its open PC technology, this system is highly compatible with the KR C2 programs. Data consistency is based on real services. Network security software also offers greater protection for communication via Ethernet.
The controller is very small and can be placed in a shelf under the robo
Product Description
Specification
|
item
|
value
|
|
Applicable Industries
|
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
|
|
After Warranty Service
|
Video technical support, Online support
|
|
Local Service Location
|
None
|
|
Showroom Location
|
None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2020
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC
|
|
Condition
|
New
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
KUKA
|
|
Weight
|
255kg
|
|
Power
|
380v
|
|
Certification
|
CE
|
|
Warranty
|
1 Year
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Packing & Delivery
ONE Kuka industrial robot arm 6 axis robot KR 16 R1610-2 with automatic otc welding robot with maximum payload 20 kg packing with fumigation wooden frame, WG:255KG
