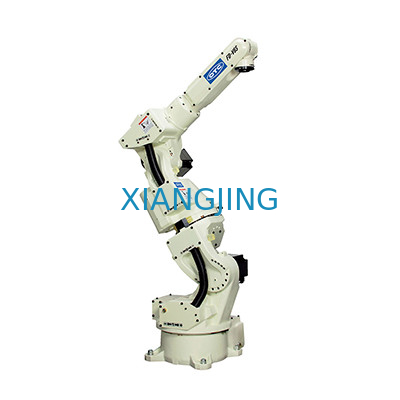

Used Automatic Welding Robot OTC With DM500 Robotic Welding Machine
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | OTC |
| Certification: | CE |
| Model Number: | FD-V6S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Packed with standard packaged |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Welding Robot |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor, Gear | Warranty: | 1 Year |
| Key Selling Points: | Famous Brand PLC | Weight (KG): | 178 |
| Voltage: | 200-600 V | Current: | 40 |
| Rated Duty Cycle: | 60% | Usage: | Welding, For Welding |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Type: | Robot |
| Model: | FD-V6S | Reach: | 1427 Mm |
| Payload: | 6 Kg | Position Repeatability RP (mm): | 0.08 |
| Axes: | 7 | Product Name: | OTC Welding Robot |
| Weight: | 178 Kg | Port: | Shanghai |
| High Light: | Used automatic welding robot OTC,7axis welding robot arm,OTC automated robotic welding |
||
Product Description
Used cnc welding robot OTC FD-V6S 7axis arc-welding with DM500 welder and ST pulse mig welding robot for OTC
| Typ | FD-V6S | ||
| Kinematik | Vertical artic. Type | ||
| Anzahl der Achsen | 7 | ||
| Arbeitsbereich (P-Punkt) | R 1427 mm | ||
| Max. Traglast | 6 kg | ||
| Wiederholgenauigkeit (*1) | +/- 0,08 mm (*1) | ||
| Antriebssystem | AC Servo Motor | ||
| Antriebsleistung | 3600 W | ||
| Arbeitsbereich | Arm | J1 (Drehen) | +/- 170° |
| J2 (Vertikalbew.) | -145° ~+ 70° | ||
| J7 (Drehen) | +/- 90° | ||
| J3 (Drehen) | -170° ~+ 149° | ||
| Gelenk | J4 (Drehen) | +/- 180° | |
| J5 (Neigen, Brenner) | - 50° ~ 230° (*6) | ||
| J6 (Drehen) | +/- 360° (*6) | ||
| Max. Geschwindigkeit | Arm | J1 (Drehen) | 3,66 rad/s {210°} |
| J2 (Vertikalbew.) | 3,66 rad/s {210°} | ||
| J7 (Drehen) | 3,14 rad/s {180°} | ||
| J3 (Drehen) | 3,66 rad/s {210°/s} | ||
| Gelenk | J4 (Drehen) | 7,33 rad/s {420°/s} | |
| J5 (Neigen, Brenner) | 7,33 rad/s {420°/s} | ||
| J6 (Drehen) | 10,82 rad/s {620°/s) | ||
| Zulässige Belastung Handgelenk | Zulässiges Moment | J4 (Drehen) | 11,8 Nm |
| J5 (Neigen, Brenner) | 9,8 Nm | ||
| J6 (Drehen) | 5,9 Nm | ||
| Zulässiges Trägheitsmoment | J4 (Drehen) | 0,30 kg/m² | |
| J5 (Neigen, Brenner) | 0,25 kg/m² | ||
| J6 (Drehen) | 0,06 kg/m² | ||
| Umgebungstemperatur/Luftfeuchte | 0 ~ 45°C, 20 ~ 80 % RH (No condensation) |
||
| Gewicht | 178 kg | ||
| Max. Traglast Oberarm | 10 kg (*7) | ||
| Installationsposition | F | ||
Our FD-V6S 7-axis robot is suitable for arc-welding, air-plasma cutting and material-handling applications. The additional payload supports additional arm attachments such as laser seam tracking or vision guidance cameras.
Click here to download more information.
ROBOT MANIPULATOR
• Rotation of the 7th-axis enables interference avoidance without changing the position and/or attitude of the end-of-arm tool
• Maintains the optimal angle and attitude of the end-of-arm tool at all times, resulting in enhanced weld quality and ease of programming
• Offers a wide working range with an independently articulated arm
• Seamless digital connection with all OTC DAIHEN brand welding power supplies
• Improved vibration restraining control provides smooth robot movement
• Built-in mechanical shock sensor
• Single source technology – all components are manufactured by OTC DAIHEN.
• Highly versatile design supports most welding applications
FD11 ROBOT CONTROLLER
• Windows XP based open architecture
• Large memory capacity and 40 Input / 40 Output control signals
• Advanced PLC functions allow for ladder diagram editing directly through the teach pendant
• Network capabilities – connects to Ethernet, DeviceNet, and PROFIBUS connections (may require additional hardware)
TEACH PENDANT
• Icon displays assist in quick & easy teaching
• 640×480 VGA color screen with LED backlight 65536 color display
• 3 position enable switch provides increased safety
• Multi-screen function allows user to view up to 4 screens simultaneously
• On-screen help function with complete instruction manuals
• Standard touch screen display with jog dial operation
