Used 6 Axis Welding Robot Arm Payload 200kg With IRC5 Single Cabinet
Product Details:
| Place of Origin: | SHG |
| Brand Name: | ABB |
| Certification: | UL / IEC62619 / IEC62477 / EC62040 / CE / UN38.3 / ETL |
| Model Number: | IRB 6700 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $64,454.00/sets 1-9 sets |
| Packaging Details: | ONE ABB large industrial total station robotic 6 axis IRB6700 material handling machine packing with fumigation wooden frame, WG:1705KG<br>Controller and other parts packing with brown box, WG:75KG<br>Total WG:1780KG(>VG) |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Model: | IRB 6700-200/2.6 | Maximum Reach: | 2600mm |
|---|---|---|---|
| Maximum Payload: | 200 Kg | Pose Repeatability (ISO 9283): | ± 0.1 Mm |
| Number Of Axes: | 6 | Mounting Position: | Floor Mounted And Inverted Mounted |
| Footprint: | 1004mm X 720mm | Weight: | 1250 Kg |
| Protection Rating: | IP67 | Controller: | IRC5 Single Cabinet, IRC 5 Panel Mounted Controlle |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel |
| Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Egypt, Canada, United Kingdom, Germany, Brazil, Saudi Arabia, Pakistan, Spain, Thailand, Morocco, Kenya, South Korea, Chile, UAE, Algeria, Sri Lanka |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Food Shop, Printing Shops | Showroom Location: | Egypt, Canada, United States, France, Germany, Brazil, India, Mexico, Russia, Thailand, Argentina, Chile, Colombia, Sri Lanka, Bangladesh, South Africa, Kyrgyzstan, Nigeria |
| Port: | Shanghai | ||
| High Light: | Used Welding Robot Arm ABB 200kg,ABB Used Industrial Robot,6 Axis Welding Robot Arm |
||
Product Description

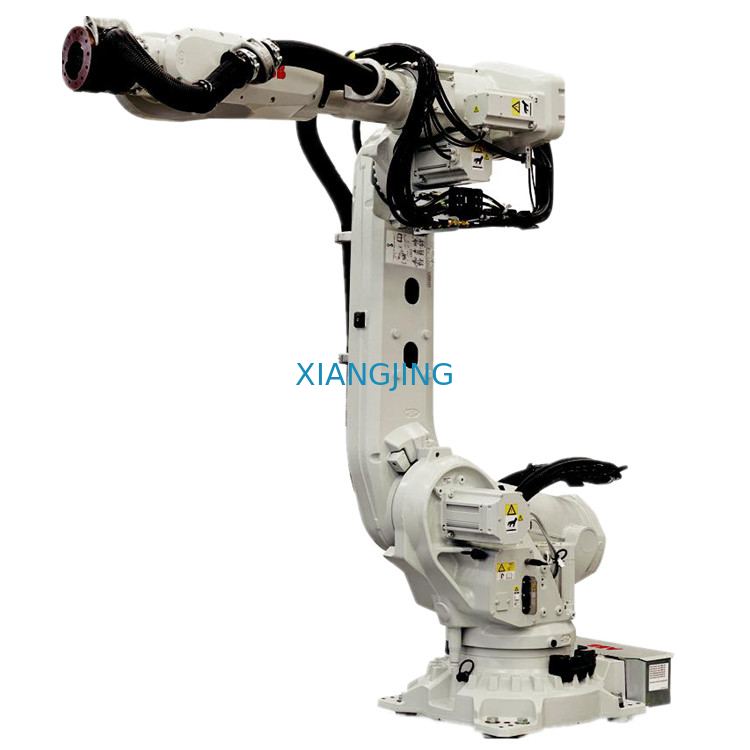

used 6 Axis Robot Arm Used Welding Robot Arm Payload 200kg With IRC5 Single Cabinet Of IRB 6700-200 Industrial Robot
The IRB, 6700 family of robotsis a natural evolution following 40 years of large robot heritage ABB. This 7th generation of largeABB robots features a multitude of next generation improvementderived from intimate customer relationships and exhaustive engineering studies.
| Model | IRB 6700-200/2.6 |
| Maximum reach | 2600mm |
| Maximum payload | 200 kg |
| Pose repeatability (ISO 9283) | ± 0.1 mm |
| Number of axes | 6 |
| Mounting position | Floor mounted and inverted mounted |
| Footprint | 1004mm x 720mm |
| Weight | 1250 kg |
| Protection rating | IP67 |
| Controller | IRC5 Single cabinet, IRC 5 Panel mounted controlle |
| Motion range | |
| A1 | 170° to -170 |
| A2 | 85° to -65° |
| A3 | 70° tp -180° |
| A4 | 300 to -300° |
| A5 | 130 to -130° |
| A6 | 360 to -360° |
