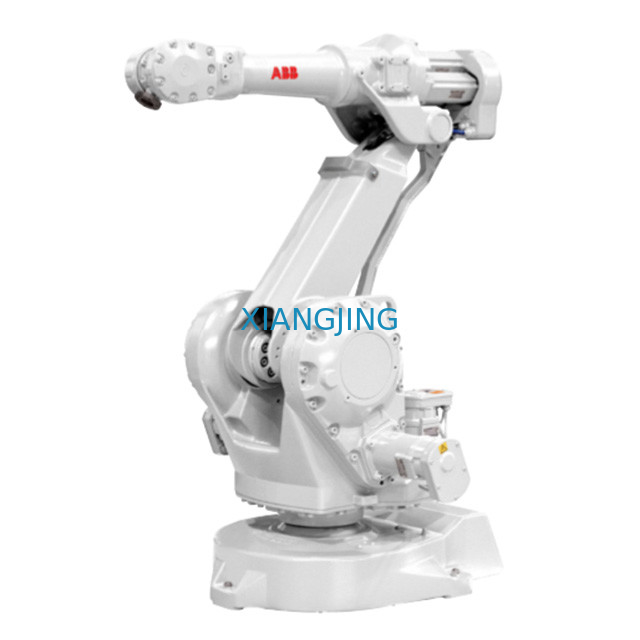

Used ABB polishing robotic IRB 2400 robot arm with 6 axis industrial working robots
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ABB |
| Certification: | UL / IEC62619 / IEC62477 / EC62040 / CE / UN38.3 / ETL |
| Model Number: | IRB 2400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,500.00/sets >=1 sets |
| Packaging Details: | ONE ABB polishing robotic IRB 2400 robot arm with 6 axis industrial working robots packing with fumigation wooden frame, WG:380KG<br>Controller and other parts packing with brown box, WG: 75KG<br>Total WG:455KG(>VG) |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | ABB IRB 2400 | Number Of Axes: | 6 |
|---|---|---|---|
| Max Payload: | 10kg | Maximum Reach: | 1550mm |
| Pose Repeatability(ISO 9283): | ±0.03mm | Teach Pendant: | IRC5 Single Cabinet |
| Mounting Position: | Floor, Wall, Shelf, Tilted, Inverted | Weight: | 380 Kg |
| Footprint: | 723mm X 600mm | Protection Rating: | IP67 |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Gearbox, Motor |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, France, Germany, Pakistan, Russia, Spain, Japan, Romania |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining | Showroom Location: | United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, India, Mexico, Russia, Spain, Algeria, Japan, Australia, Morocco |
| Warranty: | 1 YEAR | Port: | Shanghai |
Product Description
Used ABB polishing robotic IRB 2400 robot arm with 6 axis industrial working robots
Main Specifications
Model:IRB 2400-10/1.55
Maximum reach:1550 mm
Maximum payload:10 kg
Pose repeatabilit: ± 0.03mm
Number of axes :6
Weight:380 kg
Protection rating:IP67
Main applications:
• Arc Welding
• Cutting/Deburring
• Grinding/Polishing
| Production Name | ABB IRB 2400 Robotic arm |
| Model | IRB 2400-12/1.55 |
| Application | grinding and polishing robot arm |
| Maximum reach | 1550 mm |
| Maximum payload | 12kg |
| Pose repeatability (ISO 9283) | ± 0.03 mm |
| Number of axes | 6 |
| Mounting position | Floor mounted and inverted mounted |
| Footprint | 723mm x 660mm |
| Weight | 380 kg |
| Protection rating | IP67 |
| Controller | IRC5 Single cabinet |
| Motion range | |
| A1 | + 180° to - 180° |
| A2 | + 110° to - 100° |
| A3 | + 65° to - 60° |
| A4 | + 200° to - 200° Optional: Unlimited |
| A5 | + 120° to - 120° |
| A6 | + 400° to - 400° Max. rev: +250° to -250° |
