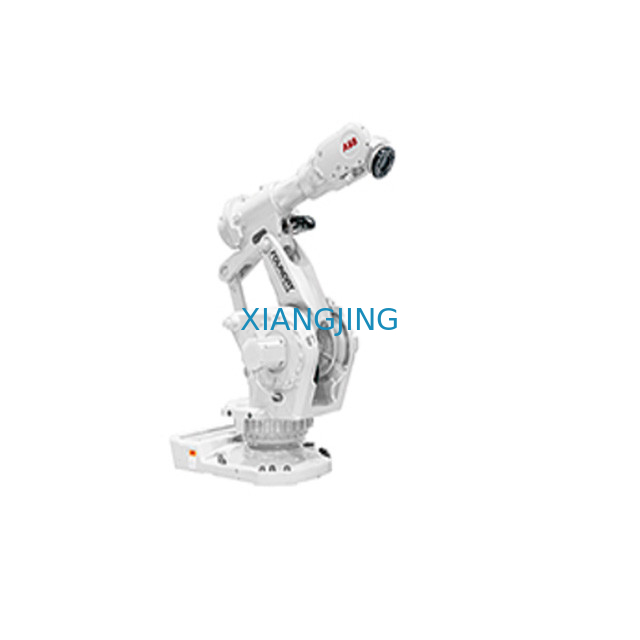

Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ABB |
| Certification: | CE |
| Model Number: | IRB 6660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $56,500.00/sets >=1 sets |
| Packaging Details: | One industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm packing with fumigation wooden frame, WG: 1730 kg<br>Controller and other parts packing with brown box, WG: 75KG<br>Total WG: 1805KG(>VG) |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Weight (KG): | 1800 KG |
| Showroom Location: | United States, Italy, France, Germany, Viet Nam, India | Video Outgoing-inspection: | Not Available |
| Machinery Test Report: | Not Available | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Motor |
| Product Name: | IRB 6660 Grinding Robot | Number Of Axis: | 6 |
| Max Payload: | 205KG | Maximum Reach: | 1900 Mm |
| Pose Repeatability(ISO 9283): | ±0.10 Mm | Teach Pendant: | IRC5 Single Cabinet |
| Mounting Position: | Floor | Weight: | 1730 Kg |
| Material: | Aluminum Alloy | Protection Rating: | IP 67, Optional FoundryPlus And Cable Protection |
| Port: | Shanghai | ||
Product Description
Used industrial robotic 6 axis arm ABB IRB 6660 used as cutting robot arm
Main Specifications
Model:IRB 6660
Maximum reach:1900 mm
Maximum payload:205kg
Pose repeatabilit: ± 0.1 mm
Number of axes :6
Weight:1730 kg
Protection rating: IP 67, Optional FoundryPlus and cable protection
| Production Name | industrial robotic 6 axis ABB IRB 6660 press tending robotic machine |
| Model | IRB IRB 6660 |
| Application | press tending robotic machine |
| Maximum reach | 1900 mm |
| Maximum payload | 205kg |
| Pose repeatability (ISO 9283) | ± 0.10 mm |
| Number of axis | 6 |
| Mounting position | Floor |
| Footprint | |
| Weight | 1730 kg |
| Protection rating |
IP 67, Optional FoundryPlus and cable protection
|
| Controller | IRC5 Single Cabinet |
| Motion range | |
| A1 | 180° to -180° |
| A2 | +85° to -42° |
| A3 | +120° to -20° |
| A4 | +300° to -300° |
| A5 | 120° to -120° |
| A6 | +360° to -360° |
Applications:
- Appliance Automation Robots
- Cutting Robots
- Drilling Robots
- Foundry Robots
- Grinding Robots
- Laser Welding Robots
- Machine Tending Robots
- Milling Robots
- Press Tending Robots
- Sanding Robots
Main features
Maximum Reach: 1.93 m
Repeatability: 0.07 - 0.11 mm
Controller: IRC5 Single cabinet
Robot Motion Speed
Axis 2: 130°/s
Axis 3: 130°/s
Axis 4: 150°/s
Axis 5: 120°/s
Axis 6: 190°/s
Axis working range
Axis 2: +85° to -42°
Axis 3: +120° to -20°
Axis 4: +300° to -300°
Axis 5: +120° to -120°
Axis 6: +360° to -360°
Ejes 2-3: +160° to +20°
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
