Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ABB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $26,500.00/sets >=1 sets |
| Packaging Details: | One industrial robotic arm ABB IRB 4400 die spraying robot 6 axis robotic arm packing with fumigation wooden frame, WG: 1040 kg<br>Controller and other parts packing with brown box, WG: 75KG<br>Total WG: 1115KG(>VG) |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | IRB 4400 | Number Of Axis: | 6 |
|---|---|---|---|
| Max Payload: | 60KG | Maximum Reach: | 1960 Mm |
| Pose Repeatability(ISO 9283): | ± 0.06 Mm | Teach Pendant: | IRC5 Single Cabinet |
| Mounting Position: | Floor | Weight: | 1040 Kg |
| Material: | Aluminum Alloy | Protection Rating: | Standard Version IP 54, Foundry Plus 2 IP 67 |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Bearing, Gearbox, Motor |
| Warranty: | 1 Year | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, Italy, France, Germany, Brazil, Mexico, Russia, Thailand, Japan |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works | Showroom Location: | France, Germany, Brazil, India, Mexico, Russia, Spain, Thailand, Romania, Japan, Australia |
| Port: | Shanghai | ||
Product Description

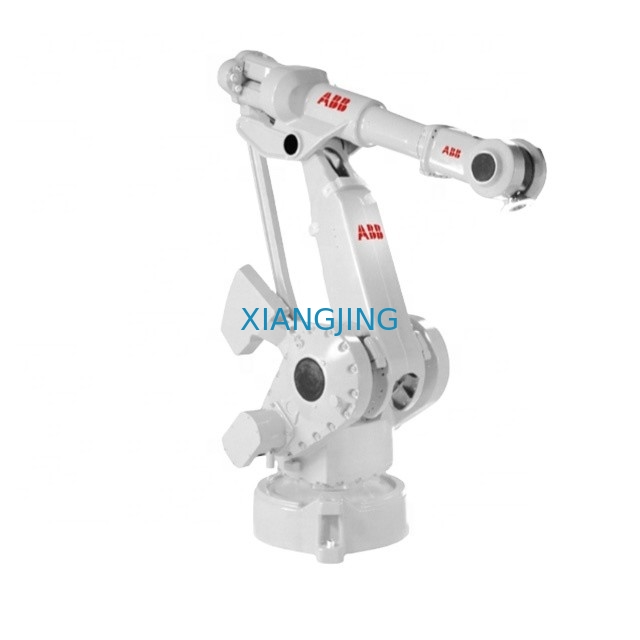

Used Industrial Robotic Arm ABB IRB 4400 Die Spraying Robot 6 Axis Robotic Arm
Main Specifications
The ABB IRB 4400/45 robot is suitable for a variety of manufacturing applications.
It`s load capacityat very high speeds allows the handling of two parts at a time.
Model:IRB 4400
Maximum reach:1960 mm
Maximum payload:60kg
Pose repeatabilit: ± 0.06 mm
Number of axes :6
Weight: 1040 kg
Protection rating: Standard version IP 54, Foundry Plus 2 IP 67
Applications
- Bonding / Sealing Robots
- Cutting Robots
- Deburring Robots
- Dispensing Robots
- Drilling Robots
- Fiberglass Cutting Robots
- Flux Cored Welding Robots
- Foundry Robots
- Grinding Robots
- Laser Cutting Robots
- TOP TIG Welding Robots
- Polishing Robots
- Refueling Robots
- Sanding Robots
- Meat Processing Automation Robots
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
| Production Name | industrial robotic arm ABB IRB 4400 die spraying robot 6 axis robotic arm |
| Model | IRB 4400 |
| Application | die spraying robot |
| Maximum reach | 1960 mm |
| Maximum payload | 60kg |
| Pose repeatability (ISO 9283) | ± 0.06mm |
| Number of axis | 6 |
| Mounting position | Floor |
| Footprint | 920 x 640 mm |
| Weight | 1040 kg |
| Protection rating |
Standard version IP 54, Foundry Plus 2 IP 67 |
| Controller | IRC5 Single Cabinet |
| Motion range | |
| A1 | +165° to -165° |
| A2 | +95° to -70° |
| A3 | +65° to -60° |
| A4 | +200° to -200° |
| A5 | 120° to -120° |
| A6 | +400° to -400° |
