Used Industrial Cutting / Deburring Robots Used ABB Robot IRB 4400 6 Axis
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ABB |
| Certification: | UL / IEC62619 / IEC62477 / EC62040 / CE / UN38.3 / ETL |
| Model Number: | IRB 4400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets >=1 sets |
| Packaging Details: | One industrial cutting/deburring robots ABB IRB 4400 with 6 axis robot arm packing with fumigation wooden frame, WG: 1040 kg<br>Controller and other parts packing with brown box, WG: 75KG<br>Total WG: 1115KG(>VG) |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | IRB 4400 | Number Of Axis: | 6 |
|---|---|---|---|
| Max Payload: | 10KG | Maximum Reach: | 2530 Mm |
| Pose Repeatability(ISO 9283): | ± 0.05 Mm | Teach Pendant: | IRC5 Single Cabinet |
| Mounting Position: | Floor | Weight: | 1040 Kg |
| Material: | Aluminum Alloy | Protection Rating: | Standard Version IP 54, Foundry Plus 2 IP 67 |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Bearing, Gearbox, Motor |
| Warranty: | 1 Year | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, Italy, France, Germany, Brazil, Mexico, Russia, Thailand, Japan |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works | Showroom Location: | France, Germany, Brazil, India, Mexico, Russia, Spain, Thailand, Romania, Japan, Australia |
| Port: | Shanghai | ||
| High Light: | 10KG payload Used ABB Robot,Used Industrial Cutting Deburring Robots IRB 4400,Used ABB Robot IRB 4400 |
||
Product Description

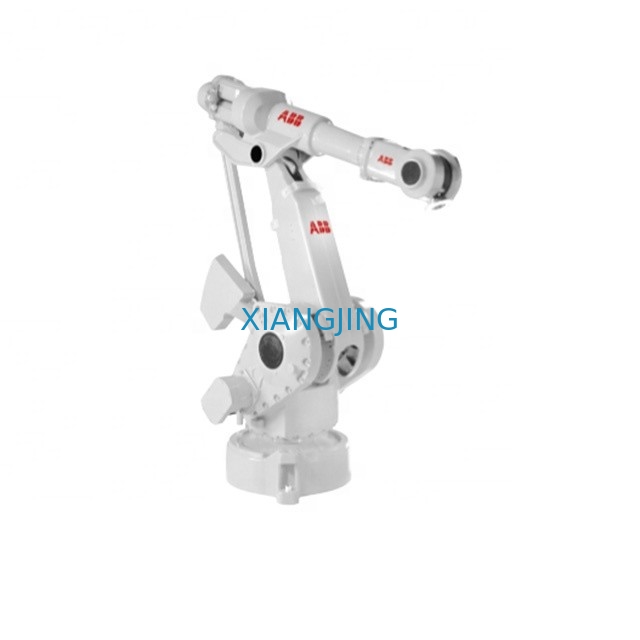

Used Industrial Cutting/Deburring Robots ABB IRB 4400 With 6 Axis Robot Arm
Main Specifications:
Model: IRB 4400
Maximum reach: 2530 mm
Maximum payload: 10kg
Pose repeatabilit: ± 0.05 mm
Number of axes: 6
Weight: 1040 kg
Protection rating: Standard version IP 54, Foundry Plus 2 IP 67
Key features:
IRB 4400 is an extremely fast, compact robot for medium to heavy handling. It has exceptional all-round capabilities which makes it suitable for a variety of manufacturing applications. The load capacity of 60 kg at very high speeds usually permits handling of two parts at a time.Fast, compact and versatile industrial robot
IRB 4400 is a rigid, well-balanced design and patented TrueMoveTM function provide smooth and fast movement throughout the entire working range. This ensures very high quality in applications such as cutting. Rapid maneuverability makes the IRB 4400 perfectly matched for applications where speed and flexibility are important. The compact design and protected versions enables use in situations where conventional robots cannot work, such as foundry and spraying applications. The Foundry Plus 2 version is IP 67 protected and can be washed with high pressure steam, which makes it ideal for use in harsh environments.
Reliability and economy
The robust, rigid construction means long intervals between routine maintenance. Well-balanced steel arms with double bearing joints, a torque-strut on axis 2 and use of maintenance-free gearboxes and cabling also contribute to the very high levels of reliability. The drive train is optimized to give high torque with the lowest power consumption for economic operation.
Extensive communication for easy integration
The extensive communication capabilities include serial links, network interfaces, PLC, remote I/O and field bus interfaces. This makes for easy integration in small manufacturing stations as well as large scale factory automation systems.
Global service and support
For worry-free operation, ABB also offers RemoteService, which gives remote access to equipment for monitoring and support. Moreover, ABB customers can take advantage of the company’s service organization; with more than 35 years of experience in the arc welding sector, ABB provides service support in over 100 locations in 53 countries.
Main Applications:
Cutting / Deburring
Die Spraying
Dispensing
Grinding/Polishing
Measuring
| Production Name | industrial cutting/deburring robots ABB IRB 4400 with 6 axis robot arm |
| Model | IRB 4400 |
| Application | die spraying robot |
| Maximum reach | 2530 mm |
| Maximum payload | 10kg |
| Pose repeatability (ISO 9283) | ± 0.05mm |
| Number of axis | 6 |
| Mounting position | Floor |
| Footprint | 920 x 640 mm |
| Weight | 1040 kg |
| Protection rating |
Standard version IP 54, Foundry Plus 2 IP 67 |
| Controller | IRC5 Single Cabinet |
| Motion range | |
| A1 | +165° to -165° |
| A2 | +95° to -70° |
| A3 | +65° to -60° |
| A4 | +200° to -200° |
| A5 | 120° to -120° |
| A6 | +400° to -400° |
