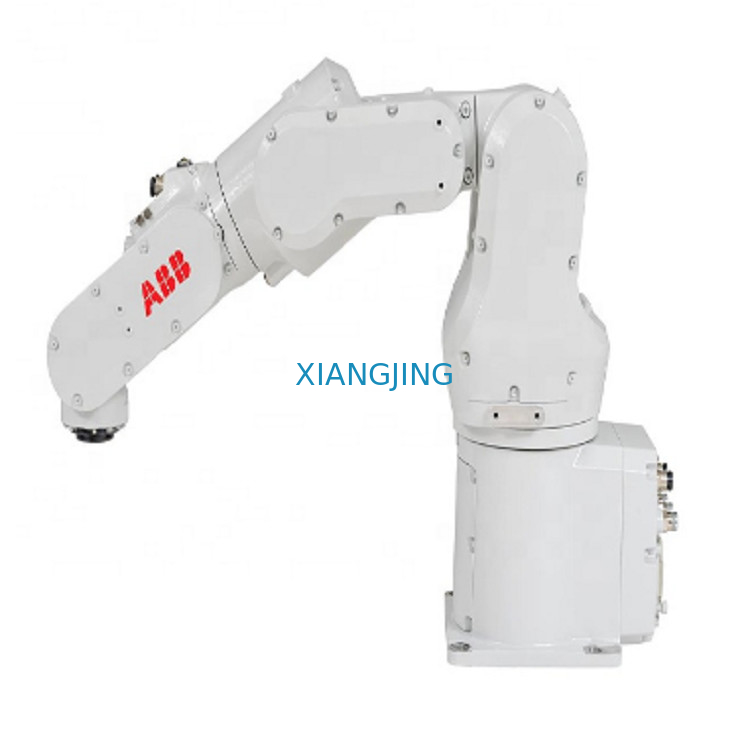

IRB1200 6 Axis Used ABB Robot Arm Flexible For Welding And Handing
Product Details:
| Place of Origin: | SHG |
| Brand Name: | ABB |
| Certification: | UL / IEC62619 / IEC62477 / EC62040 / CE / UN38.3 / ETL |
| Model Number: | IRB1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,010.00/sets 1-9 sets |
| Packaging Details: | The ABB IRB1200 of 6 axis robot arm with flexible and functional as small industrial robot for welding and handing packing with fumigation wooden frame, WG:1705KG<br>Controller and other parts packing with brown box, WG:75KG<br>Total WG:1780KG(>VG) |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Model: | IRB 1200-5/0.9 | Maximum Reach: | 900 Mm |
|---|---|---|---|
| Maximum Payload: | 5 Kg | Pose Repeatability: | ± 0.02 Mm |
| Number Of Axes: | 6 | Mounting Position: | Any Angel |
| Footprint: | 210 Mm X 210 Mm | Weight: | 52 Kg |
| Protection Rating: | IP40 | Controller: | IRC5 Compact |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing |
| Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Egypt, Canada, United Kingdom, United States, Italy, Germany, Viet Nam, Philippines, Pakistan, India, Russia, Spain, Australia, Morocco, Kenya, South Korea |
| Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Printing Shops, Energy & Mining | Showroom Location: | Egypt, Canada, United Kingdom, France, Germany, Saudi Arabia, Pakistan, Spain, Thailand, South Korea |
| Port: | Shanghai | ||
| High Light: | IRB1200 Used ABB Robot,Handing Used Robot Arm,Used ABB Robot 6 Axis |
||
Product Description
used IRB1200 Of 6 Axis Used Robot Arm With Flexible And Functional As Small Industrial Robot For Welding And Handing
| Model | IRB 1200-5/0.9 |
| Maximum reach | 900 mm |
| Maximum payload | 5 kg |
| Pose repeatability (ISO 9283) | ± 0.02 mm |
| Number of axes | 6 |
| Mounting position | Any Angel |
| Footprint | 210 mm x 210 mm |
| Weight | 52 kg |
| Protection rating | IP40 |
| Controller | IRC5 Compact/IRC5 Single Cabinet |
| Motion range | |
| A1 | 170° to -170° |
| A2 | 135° to -100° |
| A3 | 70° to -200° |
| A4 | 270° to -270° |
| A5 | 130° to -130° |
| A6 | 400° to -400° |
Robot Specifications:
Axes: 6
Payload: 5kg
H-Reach: 901mm
Repeatability: ±0.06mm
Robot Mass: 54kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Features and benefits:
- 15% smaller cells that have 10% shorter cycle times
- Available with Food Grade Lubrication
- Optionally with SafeMove functionality
- Available with Foundry Plus 2 protection for harsh environments
- IP40 protection as standard; Clean Room, IP67 and Foundry Plus 2 protection are also available options
- 4 air ducts, 10 customer signals and Ethernet routed internally from wrist flange to foot
- Mountable at any angle
- Large usable working area in a compact footprint
