Second Hand Used ABB Robot IRB4400 6 Axis CNC Robot Arm For Painting
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ABB |
| Certification: | CE |
| Model Number: | IRB4400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | ONE Industrial Robots FD-V6S As OTC Welding Equipment Of 7 Axis Robot Arm Robotic Welding Machine packing with fumigation wooden frame. |
| Delivery Time: | 6-8working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 999 sets/month |
|
Detail Information |
|||
| Name: | Second Hand ABB IRB4400 6 Axis CNC Robot Arm For Painting | Brand: | ABB |
|---|---|---|---|
| Model: | IRB4400 | Production Year: | 2000-2015 |
| Warranty: | 3 Month | Reach: | 1.96m |
| Payload: | 250kg | Reapetability: | 0.04 Mm |
| Axis: | 6 | ||
| High Light: | Used ABB Robot IRB4400,6 Axis CNC Robot Arm,Second Hand Used ABB Robot |
||
Product Description
industrial painting robot IRB4400 6 axis cnc robot arm assembly for small and medium sized parts in a wide range
| Robot version | Reach (m) | Payload (kg) | ||
| IRB 4400-60/1.96 | 1.96 | 60 | ||
| IRB 4400L-10/2.53 | 2.53 | 10 | ||
| Supplementary load | ||||
| on axis 2 | 35 kg | |||
| on axis 3 | 15 kg | |||
| on axis 4 | 0-5 kg | |||
| Number of axes | 6 | |||
| Protection | Standard version IP 54, Foundry Plus 2 IP 67 and high pressure steam washable | |||
| Mounting | Floor | |||
| Controller | IRC5 Single Cabinet | |||
| Integrated signal supply | 23 signals and 10 power on upper arm | |||
| Integrated air supply | Max. 8 bar on upper arm | |||
Performance (according to ISO 9283)
| Robot version | Position repeatability RP (mm) | Path repeatability RT (mm)*: |
| IRB 4400-60/1.96 | 0.06 | 0.09 |
| IRB 4400L-10/2.53 | 0.05 | 0.16 |
Product Description
IRB 4400 is an extremely fast, compact robot for medium to heavy handling. It has exceptional all-round capabilities which makes it suitable for a variety of manufacturing
applications. The load capacity of 60 kg at very high speeds usually permits handling of two parts at a time.
Fast, compact and versatile industrial robot
IRB 4400 is a rigid, well-balanced design and patented TrueMoveTM function provide smooth and fast movement throughout the entire working range. This ensures very high quality in applications such as cutting. Rapid maneuverability makes the IRB 4400 perfectly matched for applications where speed and flexibility are important. The compact design and protected versions enables use in situations where conventional robots cannot work, such as foundry and spraying applications. The Foundry Plus 2 version is IP 67 protected and can be washed with high pressure steam, which makes it ideal for use in harsh environments.

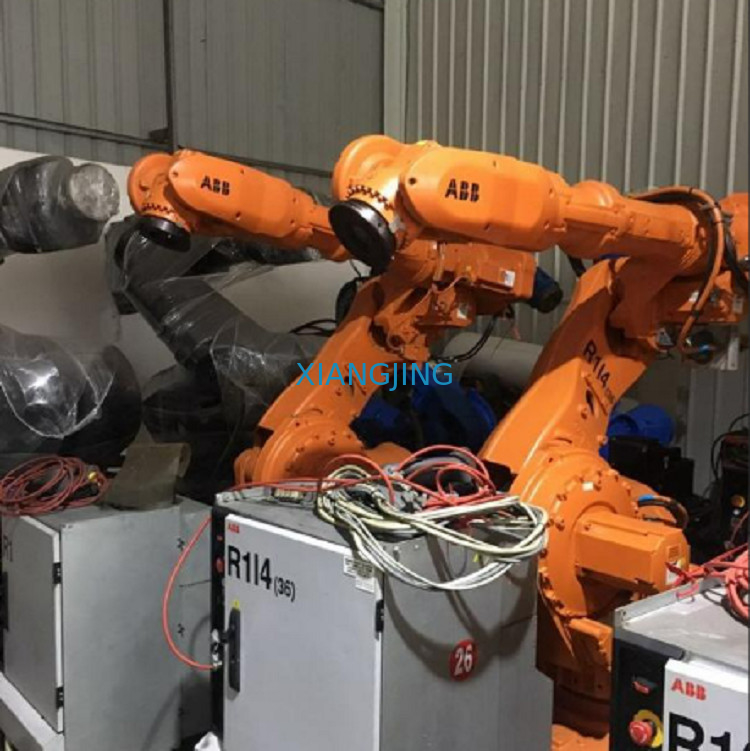

Product image
