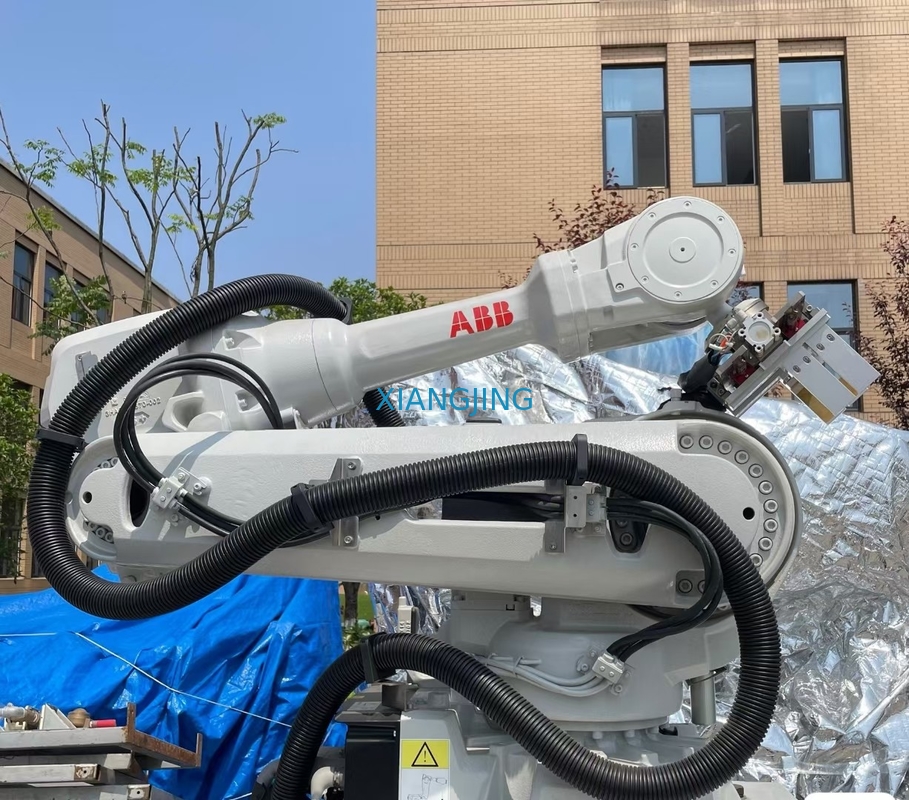

ABB IRB2600 6 Axis Robot Arm With Payload 20kg Reach 1650mm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ABB |
| Certification: | CE |
| Model Number: | IRB2600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | ONE Industrial Robots FD-V6S As OTC Welding Equipment Of 7 Axis Robot Arm Robotic Welding Machine packing with fumigation wooden frame. |
| Delivery Time: | 6-8working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 999 sets/month |
|
Detail Information |
|||
| Name: | Second Hand ABB IRB2600 Made In 2010 With Good Price And Quanlity | Brand: | ABB |
|---|---|---|---|
| Model: | IRB2600 | Production Year: | 2000-2015 |
| Warranty: | 3 Month | Reach: | 1.65cm |
| Payload: | 20kg | Reapetability: | 0.04 Mm |
| Axis: | 6 | ||
| High Light: | IRB2600 6 Axis Robot Arm,Industrial Robot Arm Reach 1650mm,ABB 6 Axis Robot Arm |
||
Product Description
ABB IRB2600 With 6 Axis Robot Arm With Payload 20kg Reach 1650mm Of Industrial Robot
The IRB 2600 is the second model in the sharp generation range with enhanced and new capabilities. It is a compact robot with a high payload capacity. The design has been optimized for targeted applications like arc welding, material handling and machine tending. The IRB 2600 is available in three variants, with options for floor, wall, shelf, tilted or inverted mounting onfigurations.
| Robot version | Reach of 5th axis (m) |
Handling capacity (kg) |
Supplementary load, on axis 3 (kg) |
Supplementary load, on axis 1 (kg) |
| IRB 2600 | 1.64 | 20 | 18 | 19 |
| Number of axes | 6 | |||
| Mounting | Floor mounted | |||
| Controller | IRC5 Single cabinet, IRC5 Compact | |||
| Integrated signal supply |
12 signals on upper arm | |||
| Integrated air supply |
Max. 8 bar on upper arm | |||
rformance (according to ISO 9283)
| Robot version | Position repeatability RP (mm) | Max. TCP velocity (m/s) | Continuous rotation of axis |
| IRB 2600 | 0.04 | 2.10 | 6 |
Sharp accuracy
With the best accuracy in its class, the IRB 2600 can help you increase output with higher process speeds and lower scrap rates, resulting in improved productivity. This is particularly useful in process applications, such as arc welding. The high accuracy is achieved by use of the patented TrueMove motion control software.
Short cycle times
Thanks to the compact and optimized design resulting in a low weight, the IRB 2600 can cut the cycle times of the industry benchmark by up to 25 %. The patented QuickMove motion control software ensures that the maximum acceleration achievable is highest in its class, together with high maximum speeds. The benefit is increased production capacity and high productivity.
Large working range
The combination of large working range and flexible mounting makes it possible to reach machines to be served without interfering with auxiliary equipment. By optimizing the robot placement, you’ll benefit from higher productivity. Flexible mounting is also very useful when you are simulating the best position for your application.
2 as option.
Compact design
The IRB 2600 has the same small foot print as IRB 4600. With the IRB 2600 you can create your production cell with reduced floorspace by placing the robot closer to the served machines. The robots’ design makes it easier for the lower arm to reach straight downwards.
Best protection available
ABB has the most comprehensive protection program for industrial robots on the market. The IRB 2600 has IP67 as standard and FoundryPlus 2 as option.
Main applications:Arc Welding
Assembly
Material Handling
Machine Tending
Material Removal
Cleaning/Spraying
Dispensing
Packing
