ARC Welding 6 Axis Robot Material Handling Automatic Welding Robot
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OTC |
| Certification: | CE |
| Model Number: | FD-V25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | ONE Industrial Robots FD-V6S As OTC Welding Equipment Of 7 Axis Robot Arm Robotic Welding Machine packing with fumigation wooden frame. |
| Delivery Time: | 6-8working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 999 sets/month |
|
Detail Information |
|||
| Name: | Robot Welding Workstation OTC FD-V25 6-axis Robot Is Designed For Arc Welding, Material-handling Automatic Welding Robot | Brand: | OTC |
|---|---|---|---|
| Model: | IRB2600 | Production Year: | 2000-2015 |
| Warranty: | 3 Month | Reach: | 1.71M |
| Payload: | 25kg | Reapetability: | 0.04 Mm |
| Axis: | 6 | Weight: | 600KG |
| High Light: | ARC Welding 6 axis robot,material handling automatic welding robot,6 axis robot OTC |
||
Product Description

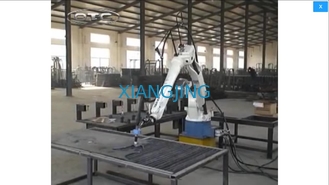

Uesd robot welding workstation OTC FD-V25 6-axis robot is designed for arc welding, material-handling automatic welding robot for OTC
| Specification | Value |
|---|---|
| Number of Axes | 6 |
| Maximum Payload Capacity | 55 lbs. (25 kg) |
| Positional Repeatability | ± 0.003" (± 0.07 mm) (Note 1) |
| Horizontal Reach | 67.32" (1710 mm) |
| Vertical Reach | 117.28" (2979 mm) |
| Drive Capacity | 5600 W |
| Working Range, Arm, J1 (Rotation) | ±170° (±50°) (Note 2) |
| Working Range, Arm, J2 (Lower Arm) | -155 ° to +100 ° |
| Working Range, Arm, J3 (Upper Arm) | -170° to +260° (Note 4) |
| Working Range, Wrist, J4 (Swing) | ± 180° |
| Working Range, Wrist, J5 (Bending) | -50 ° to + 230° |
| Working Range, Wrist, J6 (Twist) | ±360 ° |
| Maximum Velocity, Arm, J1 (Rotation) | 3.40 rad/s (195°/s) [3.05 rad/s (175°/s)] (Note 2) |
| Maximum Velocity, Arm, J2 (Lower Arm) | 3.32 rad/s (190°/s) |
| Maximum Velocity, Arm, J3 (Upper Arm) | 3.14 rad/s (180°/s) |
| Maximum Velocity, Wrist, J4 (Swing) | 6.98 rad/s (400°/s) |
| Maximum Velocity, Wrist, J5 (Bending) | 6.98 rad/s (400°/s) |
| Maximum Velocity, Wrist, J6 (Twist) | 10.47 rad/s (600°/s) |
| Wrist Load, Allowable Moment, J4 (Swing) | 52.6 N⋅m |
| Wrist Load, Allowable Moment, J5 (Bending) | 52.6 N⋅m |
| Wrist Load, Allowable Moment, J6 (Twist) | 24.5 N⋅m |
| Wrist Load, Allowable Moment of Inertia, J4 (Swing) | 1.09 kg⋅m² |
| Wrist Load, Allowable Moment of Inertia, J5 (Bending) | 1.09 kg⋅m² |
| Wrist Load, Allowable Moment of Inertia, J6 (Twist) | 0.24 kg⋅m² |
| Arm operation cross-sectional area | 5.27 m² x 340° |
| Environmental Conditions | 32 to 113 ºF (0 to 45 °C), 20 ~ 80% RH |
| Mass | 613 lbs. (278 kg) |
| Upper arm payload capacity | 22 lbs. (10 kg) |
| Installation type | Floor / Ceiling / Wall |
| Paint color | White (Munsell notation 10GY 9/1) |
Our FD-V25, 6-axis robot is designed for arc welding, cutting and material-handling applications that require a larger payload. Built-in application signal cable simplifies integration and installation.
ROBOT MANIPULATOR
• Offers a wide working range with an independently articulated arm
• Seamless digital connection with all OTC DAIHEN brand welding power supplies
• Improved vibration restraining control provides smooth robot movement
• Single source technology – all components are manufactured by OTC DAIHEN.
• Highly versatile design supports welding, cutting and material-handling applications
FD11 ROBOT CONTROLLER
• Windows XP based open architecture
• Large memory capacity and 40 Input / 40 Output control signals
• Advanced PLC functions allow for ladder diagram editing directly through the teach pendant
• Network capabilities – connects to Ethernet, DeviceNet, and PROFIBUS connections (may require additional hardware)
TEACH PENDANT
• Icon displays assist in quick & easy teaching
• 640×480 VGA color screen with LED backlight 65536 color display
• 3 position enable switch provides increased safety
• Multi-screen function allows user to view up to 4 screens simultaneously
• On-screen help function with complete instruction manuals
• Standard touch screen display with jog dial operation
