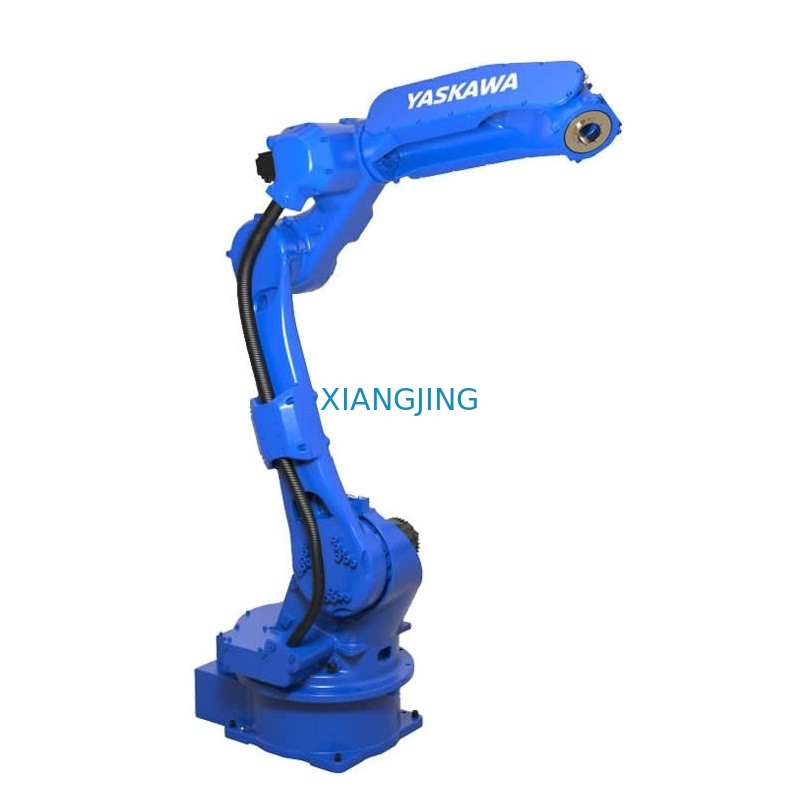

GP25 Die Cast, Dispensing, Material Cutting Trimming Used Robot Arm 6 Axis

used GP25 Die Cast, Dispensing, Material Cutting Trimming 6-axis industrial robot with YRC1000 controller for Yaskawa

Fast and Efficient Handling

Achieve high transfer capability with highest payload, speed, and wrist allowable moment in its class. Ideal for high-volume handling and packaging applications. Reduced-interference design permits close proximity to other robots and the GP25 can be programmed and controlled using IEC61131-3 and PLCopen programming standards.

Main Specifications:

Model:GP25
Maximum reach:1730mm
Maximum payload:25kg
Pose repeatability:± 0.06mm
Number of axes:6
Weight:180 kg

GP25 Introduction:

Key Benifits:

1. High payload, axis speed and wrist allowable moment ratings.

2. Space-efficient design

3. Engineered for easy installation, operation and maintenance.

Achieve high transfer capability with highest payload, speed and wrist allowable moment in its class. Ideal for high-volume handling and packaging applications. Reduced-interference design permits close proximity to other robots and process equipment.

The GP-series robots offer improved acceleration/deceleration control for all robot positions resulting in overall improved productivity. The small footprint, slim arm design allows for minimum installation space and minimizes interference with peripheral devices. Installation is quick and efficient. A single cable is all that is needed to connect the manipulator to the controller, resulting in easy setup and reduced expenses for maintenance and spare parts inventory.

YASKAWA GP25 advantage:

 · Increase your productivity with the fast and efficient GP25 robot.

. All axis speeds have been increased, some Over 40%, surpassing otherrobots in its class.

. Minimum acceleration/deceleration times provide high performance.

. Reduced interference design allows close proximity placement Of robots.

. Hollow upper arm provides optimal cable protection and longer life while simplifying programming. A 50 mm clearance through axes 4-6encloses the cable and protects it from wear, interference Or snagging.

. Patented double yoke upper arm design provides additional strength if the robot is crashed. Much stronger than other six-axis integrated cable designs.

· High wrist allowable moment for accurate and repeatable handling.

. Increased 25 kg payload, as well as increased moment and inertia ratings over previous models, allow larger and heavier loads to be carried by the robot.

. Single power and control cable reduces wiring time and increases work efficiency.

. New robot harness design for improved diagnostics and maintenance.

. Home position data can be saved without battery connection for easy maintenance.

. The GP25 has an lP67-rated wrist and an IP54 body standard. An XP (extra Protection) package that increases the body protection rating to IP65 is available.

. An anti-corrosive paint option is available for environments where harsh acidic Or alkaline cleaners are used, such as food processing facilities.

· The GP25 can be floor-, wall- or ceiling-mounted. Brakes are included on all axes.

· Compact YRC controller utilizes the light weight standard teach pendant with intuitive programming.

Applications:
Assembly, Die Cast, Dispensing, Material Removal, Material Cutting/Trimming, Material Handling, Pick and Place, IP65-67
