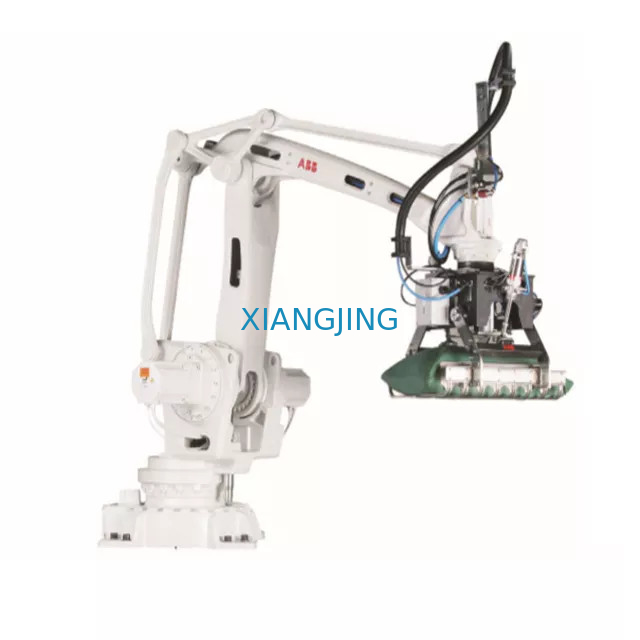

4 Axis Used Robot Arm ABB IRB 460 Humanoid Machine Robot
Product Details:
| Place of Origin: | Swiss |
| Brand Name: | ABB |
| Certification: | CE |
| Model Number: | IRB460 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wodden cartons or meet customers' requirements |
| Delivery Time: | 2 weeks |
|
Detail Information |
|||
| Model: | IRB 460 | Payload: | 110KG |
|---|---|---|---|
| Reach: | 2400mm | Repeatabilit: | ±0.04mm |
| Product Name: | 4 Axis Used Robot Arm | Protection Rating: | IP67 |
| High Light: | 4 Axis Used Robot Arm ABB,Used 4 axis robotic arm ABB,Used Robot Arm ABB IRB 460 |
||
Product Description
used 4-axis robotic arm ABB IRB 460 used as bag palletizing applications humanoid machine robot with low price
Main Specifications
Model: IRB 460-110/2.4
Maximum reach:2400 mm
Maximum payload:110kg
Pose repeatabilit: ± 0.2 mm
Number of axes :4
Weight:925 kg
Protection rating: IP67
Main features:
Maximum Load of Robot: 110 kg
Maximum Reach: 2.4 m
Repeatability: 0.20 mm
Path repeatability:0.11 mm
Controller variants: IRC5 Single cabinet
Maximum Reach: 2.4 m
Repeatability: 0.20 mm
Path repeatability:0.11 mm
Controller variants: IRC5 Single cabinet
Robot Motion Speed
Axis 1: 145°/s
Axis 2: 110°/s
Axis 3: 120°/s
Axis 4: 400°/s
Axis 2: 110°/s
Axis 3: 120°/s
Axis 4: 400°/s
Axis working range
Axis 1: +165° to -165°
Axis 2: +85° to - 40°
Axis 3: +120° to - 20°
Axis 4: +300° to - 300°
Axis 2: +85° to - 40°
Axis 3: +120° to - 20°
Axis 4: +300° to - 300°
Applications:
Palletising , Handling of parts
Product Description
| Production Name | ABB IRB 460-110/2.4 |
| Model | IRB 460-110/2.4 |
| Application | palletizing robot |
| Maximum reach | 2400 mm |
| Maximum payload | 110 kg |
| Pose repeatability (ISO 9283) | ± 0.2 mm |
| Number of axis | 4 |
| Mounting position | Floor |
| Footprint | |
| Weight | 925 kg |
| Protection rating | IP67 |
| Controller | IRC5 Single Cabinet |
| Motion range | |
| A1 | +165° to -165° |
| A2 | +85° to -40° |
| A3 | +120° to -20° |
| A6 | +300° to -300° |

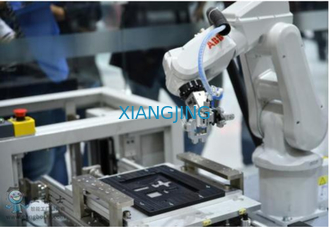

Detailed Images
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
Want to Know more details about this product
