Versatile Used Robot Arm Painting Robot Arm Dispensing Robot Arm For Yaska
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | YASKAWA Motoman |
| Certification: | CE |
| Model Number: | EPX1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | YASKAWA EPX1250 industrial robot arm standard packing, WG:120 KG<br>NX100-FM Controller standard packing, WG: 120 KG |
| Supply Ability: | 10 Piece/Pieces per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support | Product Name: | EPX1250 High-Speed Precision Painting Robot Arm For Yaskawa Motoman |
| Number Of Axes: | 6 | Max Payload: | 5 Kg |
| Maximum Reach Range: | 1256mm | Pose Repeatability(ISO 9283): | ±0.15mm |
| Controller: | NX100-FM | Mounting Position: | Floor, Wall, Ceiling |
| Warranty: | 1 Year | Port: | Shanghai |
| High Light: | Versatile Used Robot Arm,painting robot arm EPX1250,Yaska Used Robot Arm |
||
Product Description

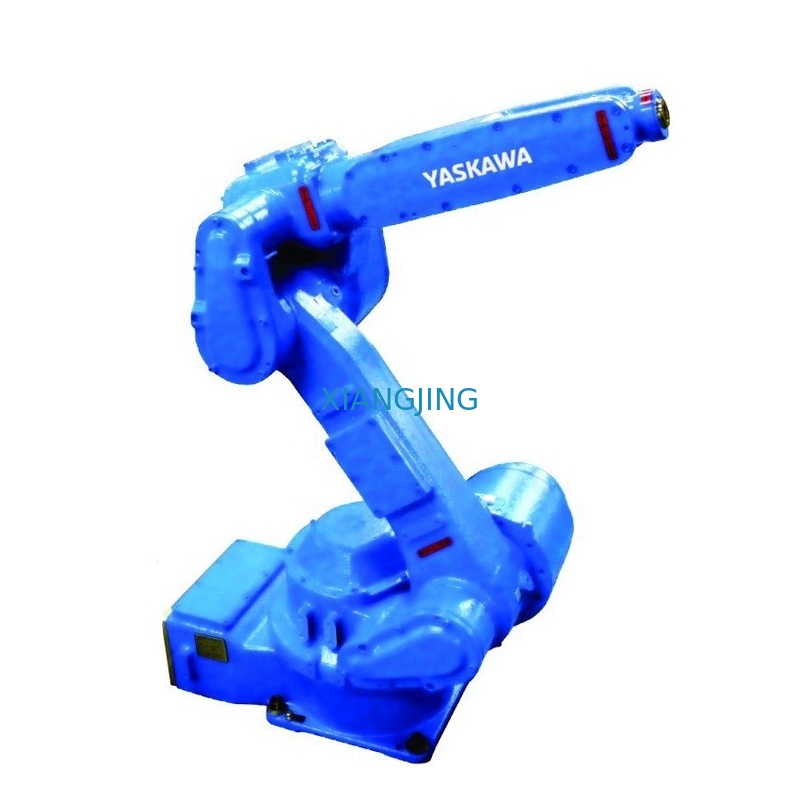

used EPX1250 Versatile 6-Axis High-Speed Precision Painting Robot Arm/Dispensing Robot Arm with NX100-FM Controller for Yaskawa Motoman
Main Specifications:
Model:EPX1250
Maximum horizontal range:1256mm
Maximum vertical range:1852mm
Maximum payload:5kg
Pose repeatability:± 0.15mm
Number of axes:6
Weight:110 kg
EPX1250 Introduction:
1. Large global install base backed by Yaskawa’s experience and reliability
2. Easy-to-use touch screen teach pendant
3. MotoSim EG simulation software (optional)
industrial coating applications.
• Offers superior performance and creates smooth, consistent finish with outstanding efficiency for painting and dispensing applications.
• Broadest motion range in its class. Proven effective in painting multiple small parts simultaneously, as well as items such as instrument panels and headlamp assemblies.
• Factory Mutual (FM) approved for Class 1, Div. 1 use in hazardous environments.
• Versatile design can be floor, wall or ceiling mounted for layout flexibility.
• 5 kg payload capacity allows use of air spray gun, electrostatic spray gun or compact bell. Provides the ability for higher efficiency and quality of surface coating.
• MotoFeeder part positioner and integral air panels (optional.)
• Compact controller design reduces installation space.
• Coordinates operation of robot and painting devices, including spray gun.
• Supports standard networks (such as EtherNet/IP, DeviceNet, ControlNet, Profibus-DP and Interbus-S), enabling connection to paint equipment controllers and
production line controllers.
• Supports gun control instructions such as spray start/stop and painting conditions.
• All painting position parameters can be filed and saved.
• Intrinsically safe pendant (optional).
Applications:
Dispensing, Painting
