YASKAWA GP600 Used Robot Arm For Pick And Place 600kg Payload
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | GP600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Industrial robot arm YASKAWA GP600 for pick and place 600kg Payload 2942mm Arm robots<br>ONE YASKAWA GP600 industrial robot 6 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:3205KG<br>Controller and other parts packing wi |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Industrial Robot Arm YASKAWA GP600 For Pick And Place 600kg Robots | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 6 | Max. Payload: | 600kg |
| Repeatability: | ±0.1mm | Max. Working Range R: | 2942mm |
| Temperature: | 0-45 ℃ | Humidity: | 20%-80% |
| Weight: | 3035kg | Power Supply, Average: | 7.0KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | GP600 Used Robot Arm,600kg Payload Industrial robot arm,YASKAWA Used Robot Arm |
||
Product Description

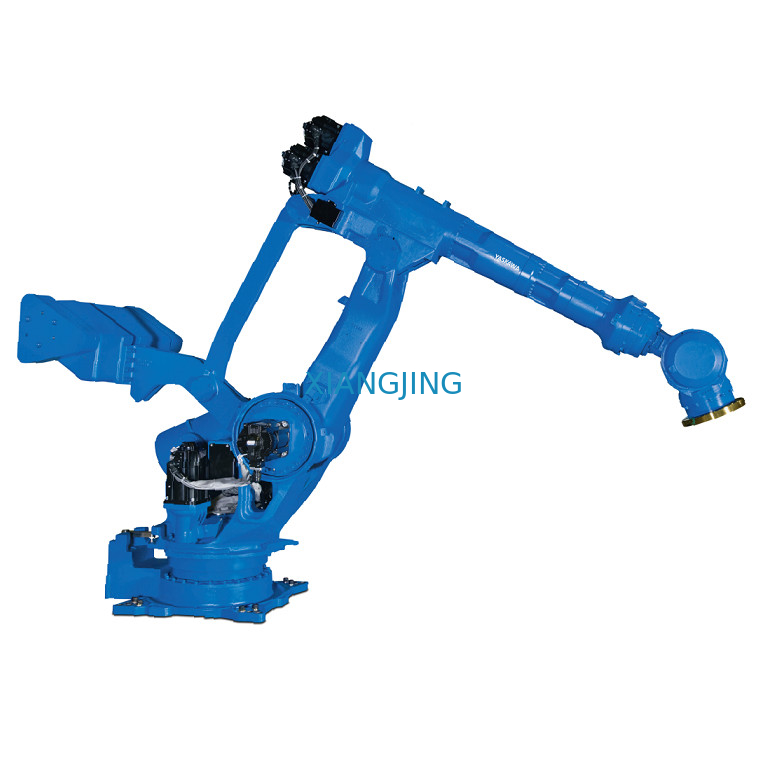

Industrial robot arm YASKAWA GP600 for pick and place 600kg Payload 2942mm Arm robots
The powerful MOTOMAN GP600 handling robot provides an impressive payload of 600 kg and a maximum reach of 2,942 mm. Due to its parallel link design, the outstanding repeatability is better than +/- 0.1 mm.
Designed with extremely fast axis speeds and parallel-link construction to expertly perform heavy-payload tasks, the six-axis GP600 is ideal for heavy part handling, machine and press tending, as well as “jigless” applications. Engineered for simple installation, easy operation and minimal maintenance, this robot features a wide work envelope, along with high moment and inertia ratings for the accommodation of large, heavy parts. A streamlined upper arm provides easy access to parts in tight spaces, and a reduced interference design allows the robot to be placed closer to workpieces and machines, optimizing floorspace. Equipped with heavy-duty bearings for smooth arm rotation, the GP600 is a smart choice to fulfill a variety of heavy-payload needs.
Main Specifications:
Model:GP600
Maximum reach:2942mm
Maximum payload:600kg
Pose repeatability:± 0.1mm
Number of axes:6
Weight:3035kg
KEY BENEFITS
• Ideal for handling of large work pieces
• High payload: 600 kg
• Wide motion range: 2942 mm
• Fast, flexible and powerful
• Parallel-link construction
• Heavy-duty bearings for smooth arm rotation
• Enhanced safety functions
| Product Name | Industrial robot arm YASKAWA GP600 for pick and place 600kg Payload 2942mm Arm robots |
| Model | GP600 |
| Application | Handling & General Application |
| Maximum reach | 2942mm |
| Maximum payload | 600kg |
| Pose repeatability (ISO 9283) | ± 0.1mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Weight | 3035kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller |

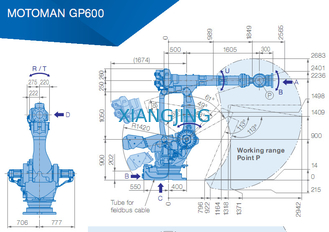

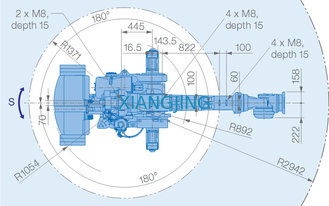

| Motion range | |
| S | 180° to -180° |
| L | 61° to -55° |
| U | 18° tp -113° |
| R | 360° to -360° |
| B | 115° to -115° |
| T | 360° to -360° |
GP600 Introduction:
The 6-axis MOTOMAN GP600 is a versatile, powerful robot offering superior performance for a variety of applications. It provides a high payload of 600 kg and a wide motion range, which especially enables the handling of large and heavy work pieces.
The robot features a parallel-link construction for strength, rigidity and stabilization of high moment and inertia loads. The GP600 also has heavy-duty bearings which provide a smooth arm rotation.
The MOTOMAN GP600 is available with the PLd Category 3 Functional Safety Unit (FSU).
KEY BENEFITS
• Ideal for handling of large work pieces
• High payload: 600 kg
• Wide motion range: 2942 mm
• Fast, flexible and powerful
• Parallel-link construction
• Heavy-duty bearings for smooth arm rotation
• Enhanced safety functions
Applications:
Handling & General Application
