YASKAWA GP165R Used Robot Arm 165kg Payload 3143mm Arm Robots
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | GP165R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Industrial robot arm YASKAWA GP165R for pick and place 165kg Payload 3143mm Arm robots<br>ONE YASKAWA GP400R industrial robot 6 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:1905KG<br>Controller and other parts packing |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Industrial Robot Arm YASKAWA GP165R For Pick And Place Robots | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 6 | Max. Payload: | 165kg |
| Repeatability: | ±0.2mm | Max. Working Range R: | 3143mm |
| Temperature: | 0-45 ℃ | Humidity: | 20%-80% |
| Weight: | 1760kg | Power Supply, Average: | 5.0KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | Used Robot Arm 165kg Payload,Industrial robot arm YASKAWA,GP165R Used Robot Arm |
||
Product Description

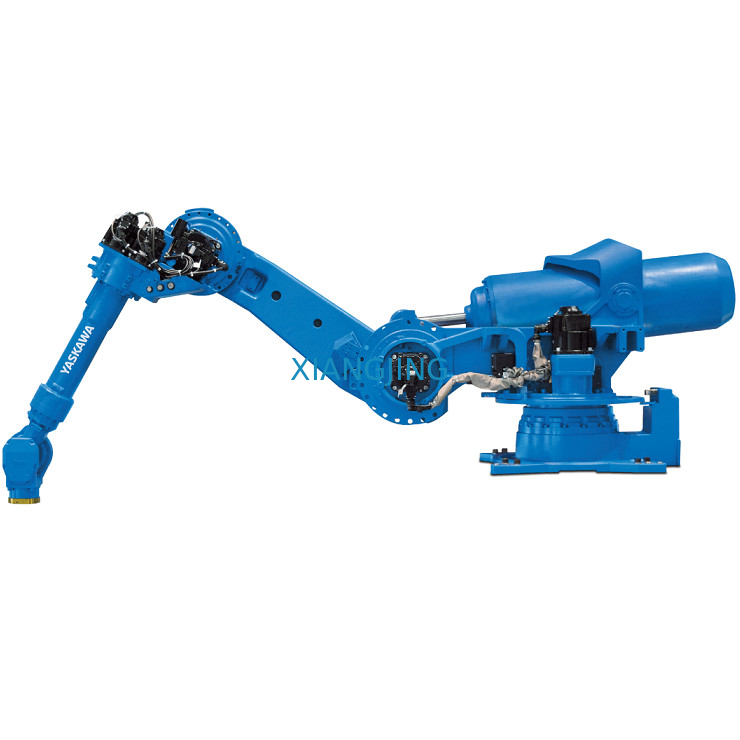

Industrial robot arm YASKAWA GP165R for pick and place 165kg Payload 3143mm Arm robots
The flexible, shelf-mounted GP165R is a 6 axis robot and provides a payload of 165 kg.
Due to this higher position they are able to unload work pieces from above. This saves precious floor space and ensures that the space required for tool changing is kept free.
They offer high productivity, reliability and maximum performance in the areas of handling, machine tending and press brake tending.
These robots are controlled by the compact high performance YRC1000 controller which is available with the optional Functional Safety Unit (FSU) that offers a wide range of new safety functions.
KEY BENEFITS
- Flexible and powerful (120 – 400 kg payload)
- Minimum space requirements
- Shelf-mounted: Extended working range, Simple gripping of components
- Possibility of mounting on machine
Main Specifications:
Model:GP165R
Maximum reach:3140mm
Maximum payload:165kg
Pose repeatability:± 0.2mm
Number of axes:6
Weight:1760kg
| Product Name | Industrial robot arm YASKAWA GP165R for pick and place 165kg Payload 3143mm Arm robots |
| Model | GP165R |
| Application | Handling & General Application |
| Maximum reach | 3143mm |
| Maximum payload | 165kg |
| Pose repeatability (ISO 9283) | ± 0.2mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Weight | 1760kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller |

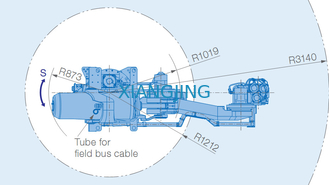

| Motion range | |
| S | 180° to -180° |
| L | 80° to -130° |
| U | 78° tp -79.4° |
| R | 360° to -360° |
| B | 130° to -130° |
| T | 360° to -360° |
GP165R Introduction:
The flexible MOTOMAN GP165R are 6-axis shelf-mounted robots. Due to this higher position they are able to unload work pieces from above. This saves precious floor space and ensures that the space required for tool changing is kept free.
Furthermore, the internal cable routing extends the service life of the robots, increases safety and reduces cycle times. They offer high productivity, reliability and maximum performance in the areas of handling, machine tending and press brake tending.
These robots are controlled by the compact high performance MOTOMAN YRC1000 controller. It is available with the optional Functional Safety Unit (FSU) that offers a wide range of new safety functions.
KEY BENEFITS
• Flexible and powerful (165 kg payload)
• Minimum space requirements
• Shelf-mounted:
– Extended working range
– Simple gripping of components
• Possibility of mounting on machine
Applications:
Handling & General Application
