YASKAWA GP35L Industrial Robot Arm 35kg Payload 2538mm Arm Robots
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | GP35L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Industrial robot arm YASKAWA GP35L for pick and place 35kg Payload 2538mm Arm robots<br>ONE YASKAWA GP35L industrial robot 6 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:705KG<br>Controller and other parts packing with |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Industrial Robot Arm YASKAWA GP35L For Pick And Place Robots | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 6 | Max. Payload: | 35kg |
| Repeatability: | ±0.07mm | Max. Working Range R: | 2538mm |
| Temperature: | 0-45 ℃ | Humidity: | 20%-80% |
| Weight: | 600kg | Power Supply, Average: | 4.0KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | YASKAWA Industrial robot arm,2538mm pick and place robot arm,GP35L Industrial robot arm |
||
Product Description

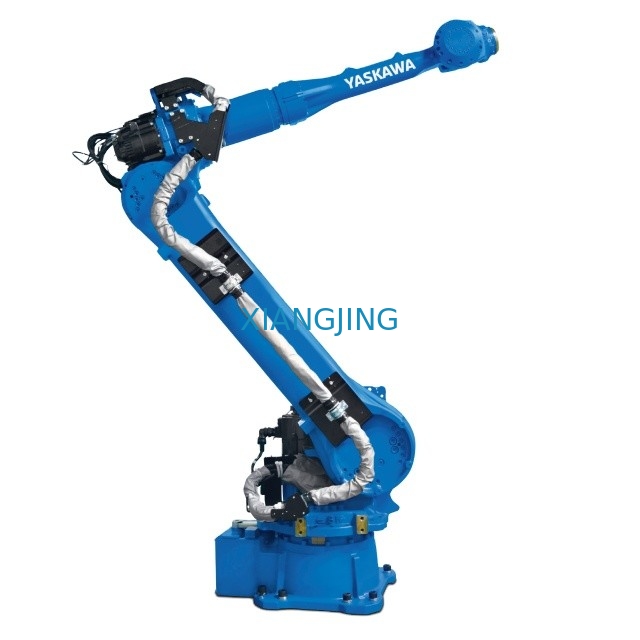

Industrial robot arm YASKAWA GP35L for pick and place 35kg Payload 2538mm Arm robots
The flexible GP35L handling robot provides a payload of 35 kg and a maximum reach of 2538 mm.
It has a long and streamlined upper arm that optimizes its range, is exceptionally powerful, efficient and fast, and increases productivity for a wide range of applications.
Main Specifications:
Model:GP35L
Maximum reach:2538mm
Maximum payload:35kg
Pose repeatability:± 0.07mm
Number of axes:6
Weight:600kg
Technical specifications:
- Controlled axes - 6
- Load capacity - 35 kg
- Working area - 2538 mm
- Repeatability - 0.07 mm
- Weight - 600 kg
- Rated power - 4 kVA
- Controller - YRC1000
- Mounting options - floor, wall, ceiling
- S axis : ±180 º
- L axis : +135/-90 º
- U axis : +206/-80 º
- R axis : ±360 º
- B axis : ±125 º
- T axis : ±360 º
Speed of the axes:
- S axis : 180 º/sec
- L axis : 140 º/sec
- U axis : 178 º/sec
- R axis : 250 º/sec
- B axis : 250 º/sec
- T axis : 360 º/sec

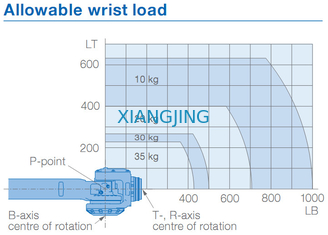

Allowable loads:
- R axis : 147 Nm
- B axis : 147 Nm
- T axis : 78 Nm
- R axis : 10 kg·m2
- B axis : 10 kg·m2
- T axis : 4 kg·m2
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
| Product Name | Industrial robot arm YASKAWA GP35L for pick and place 35kg Payload 2538mm Arm robots |
| Model | GP35L |
| Application | Handling & General Application |
| Maximum reach | 2538mm |
| Maximum payload | 35kg |
| Pose repeatability (ISO 9283) | ± 0.07mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Weight | 600kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller |

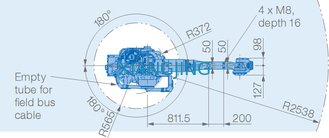

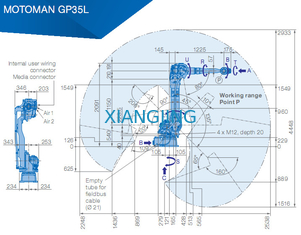

| Motion range | |
| S | 180° to -180° |
| L | 135° to -90° |
| U | 206° tp -80° |
| R | 360° to -360° |
| B | 125° to -125° |
| T | 360° to -360° |
GP35L Introduction:
The MOTOMAN GP35L is a dynamic, high-speed robot featuring an extended reach for large parts. It offers superior performance in laser welding, coating, dispensing, gluing, material cutting and material handling applications.
KEY BENEFITS
• High repeatability: ±0.07 mm
• Ideal for a variety of applications, multi-purpose robot
• Wide motion range
• Small interference radius reduces floorspace requirements
• Specifically designed for processing large parts
• Protection class IP54/67 as standard
Applications:
Handling & General Application
