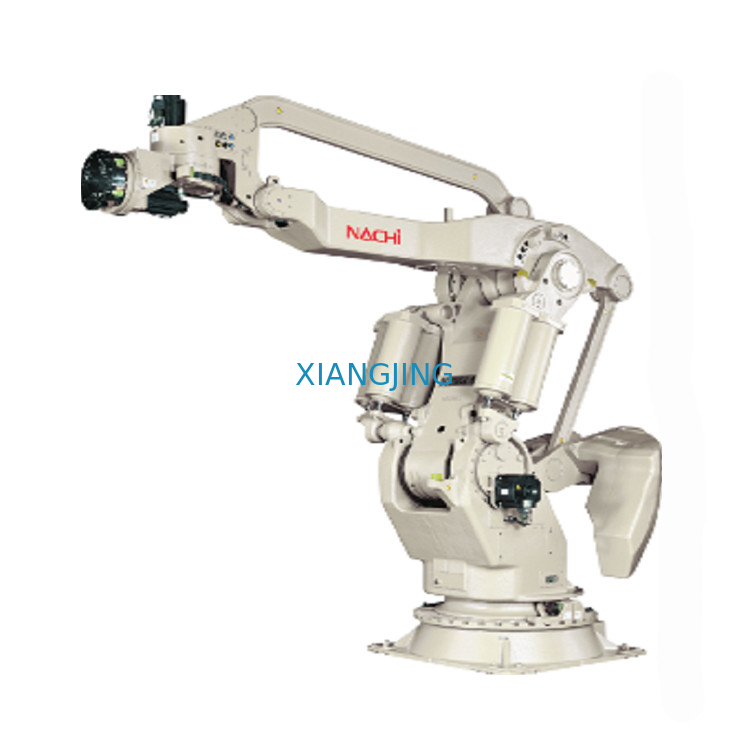

Used SC Heavy Duty NACHI Industrial Robot SC700
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | NACHI |
| Certification: | CE |
| Model Number: | SC700 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $37,000.00 - $38,000.00/sets |
| Packaging Details: | Packing type: cardboard box/non-fumigation wooden box |
| Delivery Time: | 6-8 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Application: | Load | Weight: | 1620kg |
|---|---|---|---|
| Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Product Name: | NACHI SC Heavy Duty Industrial Robot SC700 | Usage: | For Industry |
| Payload: | 350kg | Robot Mass: | 1620kg |
| Position Repeat Accuracy: | ±0.2mm | Port: | Shanghai Port |
| High Light: | Heavy Duty Industrial Robot,Used Industrial Robot CE,NACHI Industrial Robot SC700 |
||
Product Description
Used NACHI SC Heavy Duty Industrial Robot SC700
| Robot model | SC700 | |||
|---|---|---|---|---|
| Construction | Articulated construction | |||
| Number of axes | 6 | |||
| Drive system | AC servo system | |||
| Max. operating area | Arm | J1 | Swivel | +/-2.79rad |
| J2 | Forward/ backward |
+1.48 to -0.79rad | ||
| J3 | Upward/ downward |
+0.70 to -1.57rad | ||
| Wrist | J4 | Rotation2 | +1.57 to -0.17rad | |
| J5 | Bending | +/-2.18rad | ||
| J6 | Rotation1 | +/-0.17rad | ||
| Max. speed | Arm | J1 | Swivel | 0.79rad/s |
| J2 | Forward/ backward |
0.52rad/s | ||
| J3 | Upward/ downward |
0.52rad/s | ||
| Wrist | J4 | Rotation2 | 0.52rad/s | |
| J5 | Bending | 0.87rad/s | ||
| J6 | Rotation1 | 0.52rad/s | ||
| Payload | 700kg | |||
| wrist torque | J4 | Rotation2 | 13800N·m | |
| J5 | Bending | 3920N·m | ||
| J6 | Rotation1 | 2940N·m | ||
| wrist moment of inertia | J4 | Rotation2 | 3000kg·m2 | |
| J5 | Bending | 1800kg·m2 | ||
| J6 | Rotation1 | 1000kg·m2 | ||
| Position repeat accuracy | +/-0.5mm | |||
| Ambient temperature | 0 to 45°C | |||
| Installation parameters | Floor mounted | |||
| Robot mass | 7000kg | |||
Additional advanced material handling functions are available to provide a comprehensive solution to all needs:
- Conveyor Synchronization
- Palletizing
- Force Feedback
- Vision
- Adaptive Motion
Nachi Robotics provides:
- Conveyor Synchronization
- Palletizing
- Force Feedback
- Vision
- Adaptive Motion
Masterpiece of NACHI. One of the largest 6 axis industrial robot available on the market is the NACHI SC700. It was developed primarily for the automotive industry, however due significant working range exceeding 4000mm in horizontal and 4928mm in vertical direction and extreme 700kg payload the SC700 is successfully asserting in any other ultra heavy handling application. With a robot size 3372 x 3064 x 2712 mm (LxHxW) and robot body weight 7tons (without any load) the SC700 robot is definitely on top of the heavy robotics technology.
Technical highlights
Ultra Heavy robot
