SC Used NACHI Robots Heavy Duty Industrial Robot SC700
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | NACHI |
| Certification: | CE |
| Model Number: | SC700 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | ONE Industrial Robots FD-V6S As OTC Welding Equipment Of 7 Axis Robot Arm Robotic Welding Machine packing with fumigation wooden frame. |
| Delivery Time: | 6-8working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 999 sets/month |
|
Detail Information |
|||
| Name: | Robot Welding Workstation OTC FD-V25 6-axis Robot Is Designed For Arc Welding, Material-handling Automatic Welding Robot | Brand: | NACHI |
|---|---|---|---|
| Model: | IRB2600 | Production Year: | 2000-2015 |
| Warranty: | 3 Month | Reach: | 2100mm |
| Payload: | 350kg | Reapetability: | 0.04 Mm |
| Axis: | 6 | Weight: | 1620kg |
| High Light: | SC Used NACHI Robot,NACHI used industrial robot,SC700 Used NACHI Robot |
||
Product Description
Used SC Heavy Duty Industrial Robot SC700 for NACHI
- Packaging Details
- Packing type: cardboard box/non-fumigation wooden box
- Port
- Shanghai port

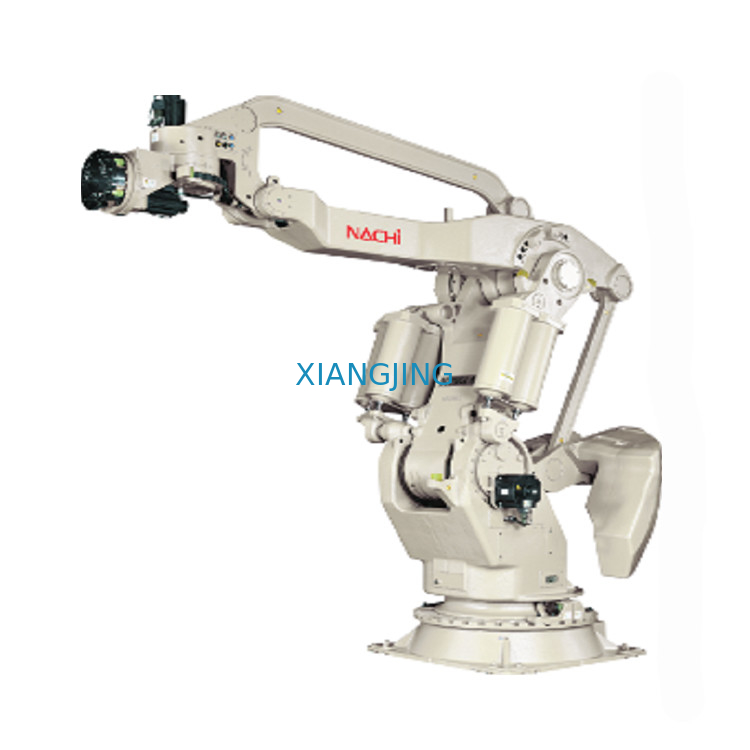

NACHI SC Heavy Duty Industrial Robot SC700
Masterpiece of NACHI. One of the largest 6 axis industrial robot available on the market is the NACHI SC700. It was developed primarily for the automotive industry, however due significant working range exceeding 4000mm in horizontal and 4928mm in vertical direction and extreme 700kg payload the SC700 is successfully asserting in any other ultra heavy handling application. With a robot size 3372 x 3064 x 2712 mm (LxHxW) and robot body weight 7tons (without any load) the SC700 robot is definitely on top of the heavy robotics technology.
Technical highlights
Ultra Heavy robot
Our service:
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
| Robot model | SC700 | |||
|---|---|---|---|---|
| Construction | Articulated construction | |||
| Number of axes | 6 | |||
| Drive system | AC servo system | |||
| Max. operating area | Arm | J1 | Swivel | +/-2.79rad |
| J2 | Forward/ backward |
+1.48 to -0.79rad | ||
| J3 | Upward/ downward |
+0.70 to -1.57rad | ||
| Wrist | J4 | Rotation2 | +1.57 to -0.17rad | |
| J5 | Bending | +/-2.18rad | ||
| J6 | Rotation1 | +/-0.17rad | ||
| Max. speed | Arm | J1 | Swivel | 0.79rad/s |
| J2 | Forward/ backward |
0.52rad/s | ||
| J3 | Upward/ downward |
0.52rad/s | ||
| Wrist | J4 | Rotation2 | 0.52rad/s | |
| J5 | Bending | 0.87rad/s | ||
| J6 | Rotation1 | 0.52rad/s | ||
| Payload | 700kg | |||
| wrist torque | J4 | Rotation2 | 13800N·m | |
| J5 | Bending | 3920N·m | ||
| J6 | Rotation1 | 2940N·m | ||
| wrist moment of inertia | J4 | Rotation2 | 3000kg·m2 | |
| J5 | Bending | 1800kg·m2 | ||
| J6 | Rotation1 | 1000kg·m2 | ||
| Position repeat accuracy | +/-0.5mm | |||
| Ambient temperature | 0 to 45°C | |||
| Installation parameters | Floor mounted | |||
| Robot mass | 7000kg | |||
Additional advanced material handling functions are available to provide a comprehensive solution to all needs:
- Conveyor Synchronization
- Palletizing
- Force Feedback
