KR 470 PA Used Kuka Robot Robot Palletizing 6 Axis With Payload 470kg
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | KUKA |
| Certification: | CE |
| Model Number: | KR 470 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $75,937.00/sets >=1 sets |
| Packaging Details: | ONE Kuka KR 470 PA robot palletizing robot arm 6 axis with payload 470kg palletizing robot arm packing with fumigation wooden frame, WG:2,331 kg |
| Supply Ability: | 999 Piece/Pieces per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC | Condition: | New |
| Weight: | 2331 Kg | Dimension(L*W*H): | Optional |
| Power: | 380V | Warranty: | 1 Year |
| Weight (KG): | 2331 Kg | Payload: | 470 Kg |
| Maximum Reach: | 3,150 Mm | Suppl. Load, Arm/link Arm/rotating Col: | . 50 Kg |
| Suppl. Load, Arm Link Arm, Max: | 50 Kg | Maximum Total Load: | 520 Kg |
| Number Of Axes: | 5 | Mounting Position: | Floor |
| Weight (excluding Controller), Approx: | 2,331 Kg | Protection Classification: | IP 65 |
| Robot Footprint: | 1,240 Mm X 1,240 Mm | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | None | After-sales Service Provided: | Online Support |
| Port: | Shanghai | ||
| High Light: | KR 470 PA Used Kuka Robot KUKA,6 Axis robot palletizing,Palletizing Robot Arm Payload 470kg |
||
Product Description

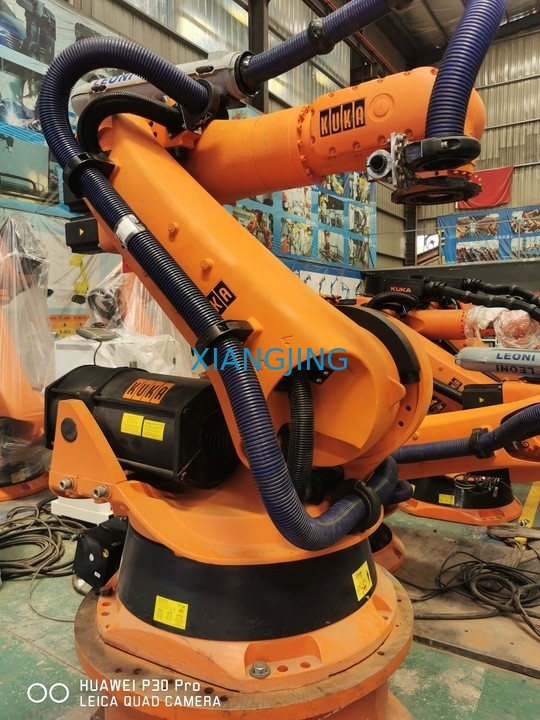

Kuka KR 470 PA robot palletizing robot arm 6 axis with payload 470kg palletizing robot arm
The KR 470-2 PA features a compact design, low weight and high speed in the heavy-duty category. It is optimally suited to
handling tasks with payloads of up to 470 kilograms. The palletizer can be flexibly adapted to its specific task by means of
booster frames of different heights.
handling tasks with payloads of up to 470 kilograms. The palletizer can be flexibly adapted to its specific task by means of
booster frames of different heights.
Advantage:
- Dynamic heavyweightThe KR 470-2 PA is ideally suited to high working speed in the heavy-duty category. It massively shortens cycle times and offers maximum process efficiency thanks to its compact design and low weight.
- Spacious master of transformationThe KR 470-2 PA enables protected routing through the wrist and fast exchange of all commonly used energy supply systems. The hollow-wrist design features an opening with a diameter of 60 millimeters.
- Tireless workerThanks to its compact design, the KR 470-2 PA works reliably and enables long maintenance intervals. Its protection against dust and water spray conforms to standard protection rating IP 65.
- Far-reaching space-saverWith a reach of up to 3,150 millimeters, the KR 470-2 PA can access even the remotest angles and corners. It optimally uses the available space and works with the utmost precision.
Applications:
- Material Handling Robots
- Order Picking Robots
- Packaging Robots
- Palletizing Robots
| KR 470-2 PA | |
|---|---|
|
Payload
|
470 kg
|
|
Maximum reach
|
3150 mm
|
|
Construction type
|
Palletizing Robots
|
|
Version environment
|
Standard
|
|
Mounting positions
|
Floor
|
|
Protection class
|
IP 65
|
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
Product Description
Specification
|
item
|
value
|
|
Applicable Industries
|
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
|
|
After Warranty Service
|
Video technical support, Online support
|
|
Name
|
Kuka KR 470 PA robot palletizing robot arm 6 axis with payload 470kg palletizing robot arm
|
|
Showroom Location
|
None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2020
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC
|
|
Condition
|
New
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
KUKA
|
|
Weight
|
2kg
|
|
Dimension(L*W*H)
|
Optional
|
|
Power
|
380V
|
|
Certification
|
CE
|
|
Warranty
|
1 Year
|
|
|
Online support
|
|
Payload
|
470 kg
|
|
Maximum reach
|
3,150 mm
|
|
Suppl. load, arm/link arm/rotating col
|
. 50 kg
|
|
Suppl. load, arm link arm, max
|
50 kg
|
|
Maximum total load
|
520 kg
|
|
Number of axes
|
5
|
|
Mounting position
|
Floor
|
|
Weight (excluding controller), approx
|
2,331 kg
|
|
Protection classification
|
IP 65
|
|
Robot footprint
|
1,240 mm x 1,240 mm
|
