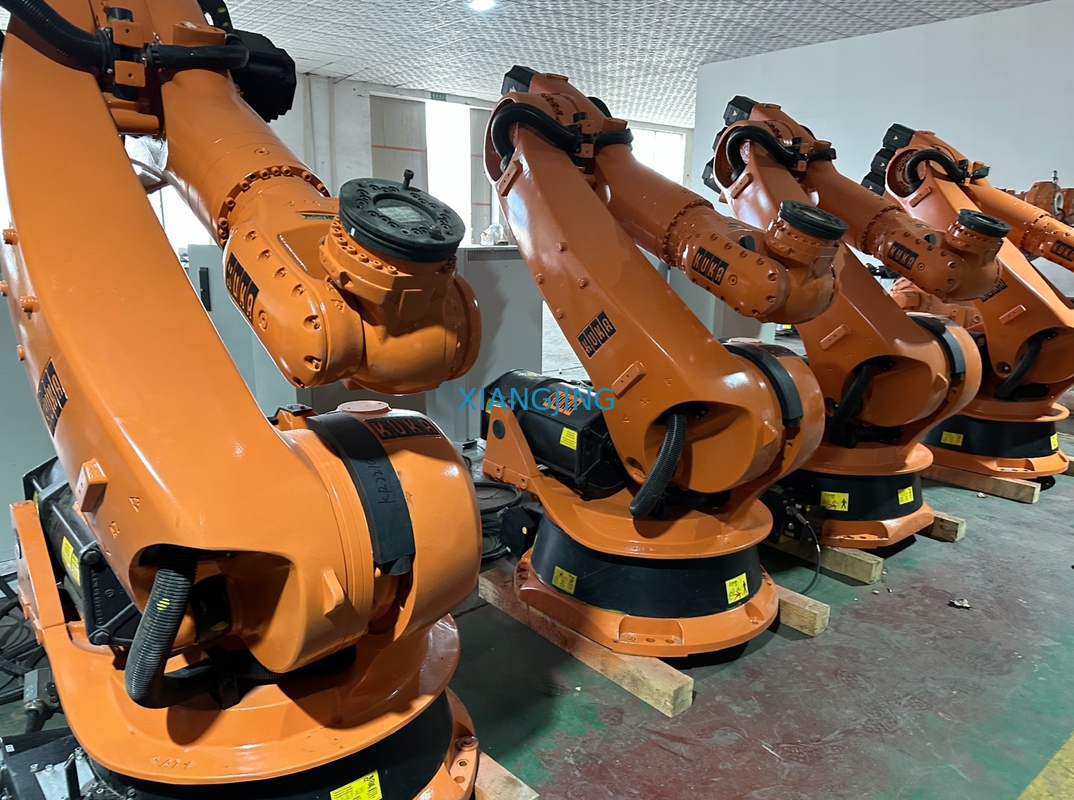

Used KUKA Industrial Robot Arm 6 Axis KR 360 R2830 For Palletizer Robot
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | kuka |
| Certification: | CE |
| Model Number: | KR 360 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $92,812.00/sets >=1 sets |
| Packaging Details: | ONE KUKA Industrial Robot Arm 6 Axis KR 360 R2830 For Palletizer Robot With Rated Payload Of 360 kg Palletizing Robot packing with fumigation wooden frame, WG: 2385 kg |
| Supply Ability: | 999 Piece/Pieces per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Showroom Location: | Mexico, Thailand, Chile, Kazakhstan, None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC | Condition: | New |
| Weight: | 2385 Approx.kg, Approx. 2385 Kg | Dimension(L*W*H): | 1050 Mm X 1050 Mm |
| Power: | 80V | Warranty: | 1 Year |
| Weight (KG): | 2385 Kg | Maximum Reach: | 2826 Mm |
| Maximum Payload: | 472 Kg | Rated Payload: | 360 Kg |
| Pose Repeatability (ISO 9283): | ± 0.08 Mm | Number Of Axes: | 6 |
| Footprint: | 1050 Mm X 1050 Mm | Mounting Position: | Floor |
| Controller: | KR C4 | Teach Pendant: | KUKA SmartPAD |
| Port: | Shanghai | ||
| High Light: | Used Industrial Robot Arm KR 360,6 Axis industrial palletizing robot,KUKA Industrial Robot Arm |
||
Product Description
used KUKA Industrial Robot Arm 6 Axis KR 360 R2830 For Palletizer Robot With Rated Payload Of 360 kg Palletizing Robot
The KUKA KR 360 FORTEC comes in a few variants to better cater to your specific automationneeds. Most all are also available as foundry-versions. These variants include:
The KUKA KR 360 R3080: Payload – 360 kg Reach – 3080 mm
The KR 360 R2830 is designed for a rated payload of 360 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used. The specific load case must be verified using KUKA.Load.
Specifications:
| Axes 6 |
| Payload: 360 KG (793 lbs) |
| Reach: 2826 MM (111.25 in) |
| Repeatability: ±0.15mm (.0059 in) |
| Robot Mass: 2350 KG (5,180 lbs) |
| Structure: Articulated |
| Robot Motion Speed |
| A1 - 89 °/s (1.55 rad/s) |
| A2 - 89 °/s (1.55 rad/s) |
| A3 - 93 °/s (1.62 rad/s) |
| A4 - 109 °/s (1.90 rad/s) |
| A5 - 112 °/s (1.95 rad/s) |
| A6 - 157 °/s (2.74 rad/s) |
| Robot Motion Range |
| A1 - ±185° |
| A2 - -110/40° |
| A3 - -184/60° |
| A4 - ±350° |
| A5 - ±118° |
| A6 - ±350° |
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
Product Description
Specification
|
item
|
value
|
|
Applicable Industries
|
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
|
|
Showroom Location
|
Mexico, Thailand, Chile, Kazakhstan, None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2020
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC
|
|
Condition
|
New
|
|
Place of Origin
|
China
|
|
Name
|
KUKA Industrial Robot Arm 6 Axis KR 360 R2830 For Palletizer Robot With Rated Payload Of 360 kg Palletizing Robot
|
|
Brand Name
|
kuka
|
|
Weight
|
2385approx.kg
|
|
Dimension(L*W*H)
|
1050 mm x 1050 mm
|
|
Power
|
80V
|
|
Warranty
|
1 Year
|
|
Weight (KG)
|
2385kg
|
|
Maximum reach
|
2826 mm
|
|
Maximum payload
|
472 kg
|
|
Rated payload
|
360 kg
|
|
Pose repeatability (ISO 9283)
|
± 0.08 mm
|
|
Number of axes
|
6
|
|
Footprint
|
1050 mm x 1050 mm
|
|
Mounting position
|
Floor
|
|
Controller
|
KR C4
|
|
Weight
|
approx. 2385 kg
|
|
Teach pendant
|
KUKA smartPAD
|
Packing & Delivery
ONE KUKA Industrial Robot Arm 6 Axis KR 360 R2830 For Palletizer Robot With Rated Payload Of 360 kg Palletizing Robot packing with fumigation wooden frame, WG: 2385 kg
