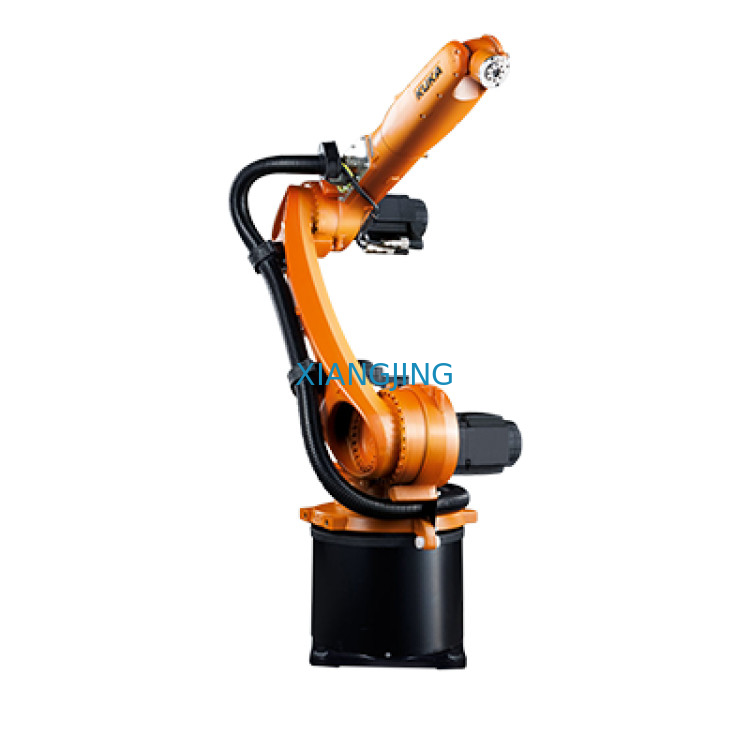

KR 10 R1420 Used Industrial Robot 6 Axis With Mig Welding Machine
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | KUKA |
| Certification: | CE |
| Model Number: | KR 10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $21,000.00/sets 1-9 sets |
| Packaging Details: | ONE Industrial robot KR 10 R1420 with 10kg payload robot arm 6 axis other welding equipment with mig welding machine packing with fumigation wooden frame<br>WG:160KG |
| Supply Ability: | 999 Piece/Pieces per Month |
|
Detail Information |
|||
| Maximum Reach: | 1420 Mm | Rated Payload: | 10 Kg |
|---|---|---|---|
| Teach Pendant: | KUKA SmartPAD | Pose Repeatability (ISO 9283): | ± 0.04 Mm |
| Number Of Axes: | 6 | Footprint: | 333.5 Mm X 307 Mm |
| Weight: | Approx. 160 Kg | Protection Rating (IEC 60529): | IP54 |
| After Warranty Service: | Online Support | Local Service Location: | None |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
| Showroom Location: | None | Weight (KG): | 160 |
| Port: | Shanghai | ||
| High Light: | R1420 used Industrial robot,robot arm 6 axis 10 kg payload,KR 10 used Industrial robot R1420 |
||
Product Description
used Industrial robot KR 10 R1420 with 10kg payload robot arm 6 axis other welding equipment with mig welding machine
The KR 10 R1420 is designed for a rated payload of 10 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used. The specific load case must be verified using KUKA.Load. For further consultation, please contact KUKA Support.
Advantage:
- Agile in every environmentNo matter how dirty, wet or sterile – the KR AGILUS achieves top performance in every production environment. A wide range of variants, such as Cleanroom, Hygienic Machine, EX – for potentially explosive environments – and Waterproof make it a specialist for many different tasks.
- Extreme precision with any cycle timeThanks to its robust design, the KR AGILUS achieves maximum repeatability and continuous precision. With its extreme speed, it reduces cycle times – and increases production quality, without ever getting out of step.
- Permanently robustThanks to its lifetime lubrication, the KR AGILUS never needs a change of lubricant in the gear units and has minimal maintenance requirements. The robust design ensures continuous productivity.
- Extremely compact Inverted on the ceiling, sideways on the wall or firmly on the floor: the KR AGILUS adapts to any installation position. We have integrated the energy supply system so that you can integrate the six-axis robot into your space-saving cell concepts.
| Axes | 6 |
| Payload | 11 kg |
| Reach | 1101 mm |
| Repeatability | 0.02 mm |
| Robot Mass |
56 kg |
Applications
- Assembly Robots
- Cutting Robots
- Machine Loading Robots
- Material Handling Robots
- Palletizing Robots
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
Product Description
Specification
|
item
|
value
|
|
Condition
|
New
|
|
Machine Type
|
Welding Manipulator
|
|
Applicable Industries
|
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
|
|
Showroom Location
|
None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
KUKA
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Patented Product
|
|
Weight (KG)
|
160KG
|
|
Voltage
|
380V
|
|
Dimensions
|
333.5 mm x 307 mm
|
|
Usage
|
Forging Load Welding Other
|
|
Maximum reach
|
1420 mm
|
|
Rated payload
|
10 kg
|
|
Teach pendant
|
KUKA smartPAD
|
|
Pose repeatability (ISO 9283)
|
± 0.04 mm
|
|
Number of axes
|
6
|
|
Footprint
|
333.5 mm x 307 mm
|
|
Weight
|
approx. 160 kg
|
|
Protection rating (IEC 60529)
|
IP54
|
|
After Warranty Service
|
Online support
|
|
Local Service Location
|
None
|
Packing & Delivery
ONE Industrial robot KR 10 R1420 with 10kg payload robot arm 6 axis other welding equipment with mig welding machine packing with fumigation wooden frame WG:160KG
