6 Axis Used KAWASAKI Robot Automatic Welding Robot Welding Manipulator
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | YASKAWA |
| Certification: | CE,ROHS |
| Model Number: | AR1440 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Regular packing ,100% Factory Sealed. |
| Supply Ability: | 10 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Welding Manipulator |
|---|---|---|---|
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works | Showroom Location: | Turkey, United States, Viet Nam, Brazil, India, Russia, Argentina, South Africa, Australia |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Weight (KG): | 68Kg | Voltage: | 220v |
| Current: | 15A | Rated Capacity: | 3500 W |
| Rated Duty Cycle: | Full Day | Dimensions: | 250*150*150cm |
| Usage: | Welding | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Canada, United Kingdom, United States, Viet Nam, Brazil, Peru, Indonesia, Russia, Argentina | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| Product Name: | 6 Axis Arc Welding Robot From China | Number Of Axes: | 6 |
| Max Payload: | 12 Kg | Maximum Reach: | 1440 Mm |
| Repeatability(ISO 9283): | ±0.06mm | Teach Pendant: | YRC1000 Controller |
| Mounting Position: | Floor Mounted | Weight: | 150 Kg |
| Material: | Aluminum Alloy | Protection Rating: | IP40 |
| Port: | Shanghai | ||
| High Light: | 6 Axis Used KAWASAKI Robot AR1440,second hand automatic welding robot,Automatic arc welding robot |
||
Product Description

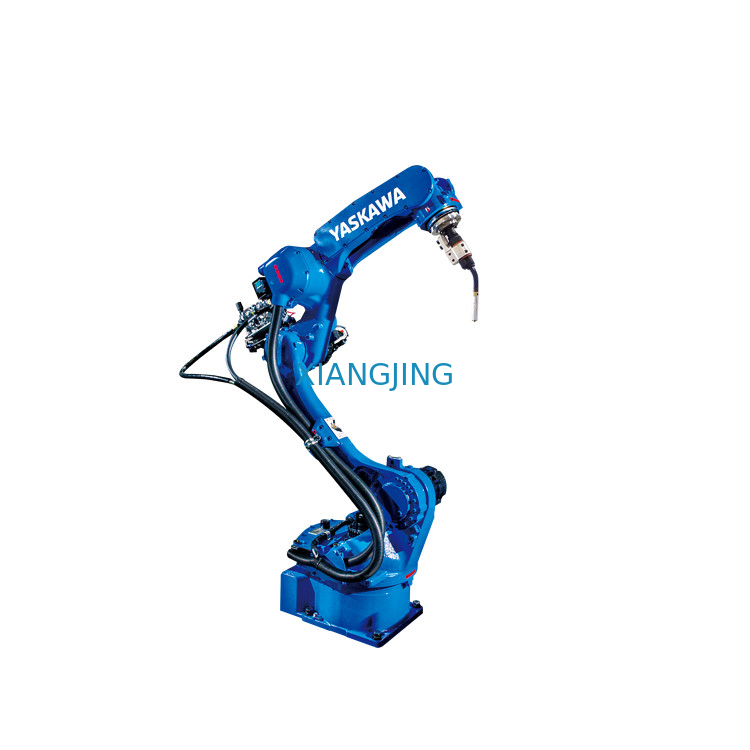

used AR1440 6-axis automatic welding robot and fast and accurate arc welding robot with YRC1000 Robot Controller
Main Specifications:
Maximum reach:1440 mm
Maximum payload:12 kg
Number of axes:6
Protection rating:IP40
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
Key Benefits
1.Increased payload, axis speeds and wrist inertia improve throughput and quality
2.Streamlined arm design reduces interference
3.Expanded wrist range improvesapplication flexibility
4.Single robot-to-controller cableconnection enables fast setup
5.Proven torch cable reliability;backed by industry's first two-year torch cable warranty.
Features
. Slim, fast, six-axis AR1 440 welding robot achieves unrivaled welding performance and productivity.
. Axis composite speed increased by 11 % over previous model.
· 12 kg payload supports a wide variety of motorized torches andsensors.
· Slim profile design allows close proximity placement of robots for high-density work cells.
. Contoured arm allows easy access to parts in tight spots and avoids potential interference with fixtures.
· Symmetric wrist profile, with ample range, provides equal torch access to both sides of part.
. High allowable moment and inertia ratings provide wrist rigidity and consistent weld quality.
.50mm thru-hole for torch cabling, hoses and sensor wires reducescable interference and wear.
. Minimal U-axis cable protrusion and S-axis internal cable managementprolongs cable life and maximizespart access.
. Optimized feeder mounting area on arm reduces equipment interference.
. Single power and control cable reduces wiring time and increases work efficiency.
. New robot harness designfor improved diagnostics andmaintenance.
. Home position data can be saved without battery connection for easy maintenance.
. Variety of advanced, exclusiveprogramming functions maximizeweld quality and speed.
. Floor-mounted model is standard. Wall-, tilt- or ceiling-mounted versions are available.
. Compact YRC controller utilizes the lightweight standard teach pendant with intuitive programing.
| Product Name | 6-axis AR1440 arc welding robot providing fast and accurate performance to boost productivity supplier from China |
| Model | AR1440 |
| Application | 6 axis welding robot;welding robot China;robotic arms for weld; |
| Maximum reach | 1440 mm |
| Maximum payload | 12 kg |
| Pose repeatability (ISO 9283) | ± 0.06 mm |
| Number of axes | 6 |
| Mounting position | Floor mounted |
| Footprint | 620 mm x 450 mm |
| Weight | 150 kg |
| Protection rating | IP40 |
| Controller | YRC1000 |
