5 Axis Second Hand Palletizing Robot M-410iB / 140H
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Fanuc |
| Certification: | CE |
| Model Number: | M-410iB /140H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Delivery Time: | 6-8working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 999 sets/month |
|
Detail Information |
|||
| Name: | Second Hand Palletizing Robot M-410iB /140H 5 Axis | Brand: | Fanuc |
|---|---|---|---|
| Model: | M-410iB /140H | Production Year: | 2000-2015 |
| Warranty: | 3 Month | Drive Method: | Electric |
| Payload: | 140kg | Reapetability: | 0.05 Mm |
| Axis: | 6 | ||
| High Light: | 5 Axis Palletizing Robot Arm,Second Hand Palletizing Robot,M-410iB Used Fanuc Robot |
||
Product Description
palletizing robot M-410iB /140H 5 axis pick and place robot arm drive by AC servo motor ipayload robot arm

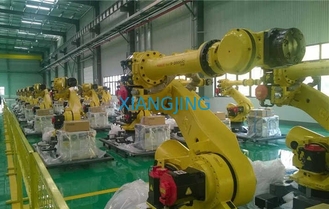

Product image
Product Description
| Product name | palletizing robot M-410iB /140H 5 axis pick and place robot arm drive by AC servo motor ipayload robot arm | |
| Model | M-410iB /140H | |
| Controlled axes | 5 | |
| Reach | 2850mm | |
| Installation | Floor | |
| Motion range | J1 | 360°/140° 6.28ad/2.44rad |
| J2 | 155°/115° 2.71ad/2.01rad | |
| J3 | 112° 1.95rad | |
| J4 | 20° 0.35rad | |
| J5 | 720° 12.57rad | |
| Max.load capacity at wrist | 140kg | |
| Allowable load moment at wrist | J4 | 3381N.m |
| J5 | 3381.m | |
| Allowable load inertia at wrist | J4 | 147kg.m2 |
| J5 | 53kg.m2 | |
| Repeatability | ±0.05mm | |
| Mass | 1200kg | |
