Used COMAU Robot Arm Industrial Welding Robot 1m Reach
Product Details:
| Place of Origin: | China |
| Brand Name: | COMAU |
| Certification: | CE |
| Model Number: | Racer-7-1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 6 axis industrial robot KR 210 R2700 EXTRA industrial welding robot arm with KR C4 controller and KUKA smartPAD Teach pendant is packed with fumigative wood case<br>ng approx. 1068 kg |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Food Shop, Other, Advertising Company |
|---|---|---|---|
| Weight (KG): | 173 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Gearbox, Motor | Warranty: | 1 Year |
| Product Name: | Comau Industrial Welding Robot Racer-7-1.06 Axis Robot Arm | Model: | Racer-7-1.0 |
| Pose Repeatability: | ± 0.06 Mm | Number Of Axes: | 6 |
| Mounting Position: | Floor / Ceiling / Sloping / Wall | Footprint: | 830 Mm X 830 Mm |
| Weight: | 173KG | Protection Rating: | (IEC 60529) IP65 |
| Payload: | 7KG | Reach: | 1m |
| Port: | Shanghai | ||
| High Light: | used COMAU Robot Arm COMAU,industrial welding robot CE,COMAU Robot Arm 1m Reach |
||
Product Description

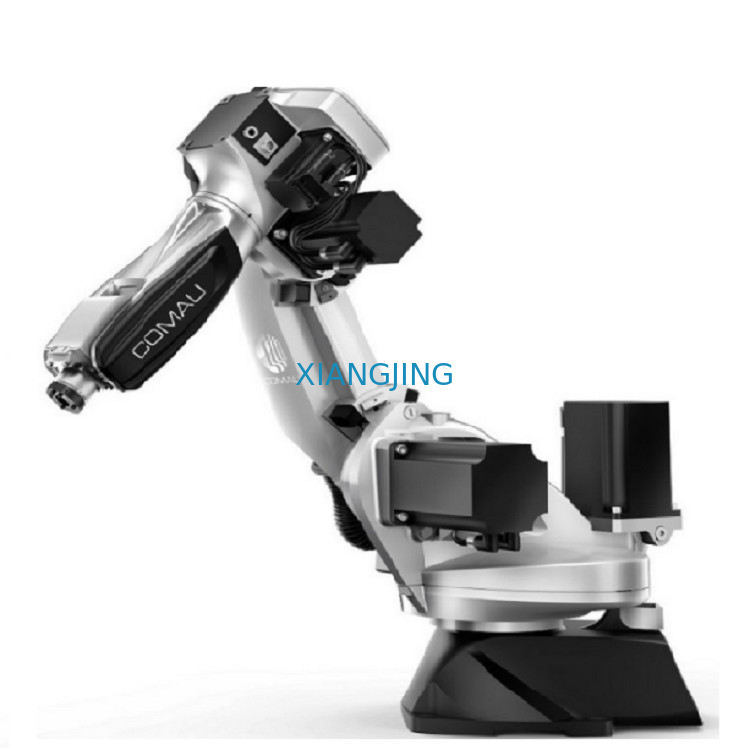

Used Comau industrial welding robot Racer-7-1.0 with 1m reach and 7kg payload 6 axis robot arm
A world-class robot that doesn’t skimp on style. With their unmatched pace and movement fluidity, Racer robots deliver optimal efficiency and technological excellence wrapped up in a sharp new design.
| Number of axes | 6 |
| Maximum wrist payload (Kg) | 7 |
| Additional load on forearm (Kg) | 10 |
| Maximum horizontal reach (mm) | 999 |
| Torque on axis 4 (Nm) | 13 |
| Torque on axis 5 (Nm) | 13 |
| Torque on axis 6 (Nm) | 7.5 |
| Stroke (Speed) on Axis 1 | +/- 165° (250 °/s) |
| Stroke (Speed) on Axis 2 | -65°/ +150° (250 °/s) |
| Stroke (Speed) on Axis 3 | -165°/ -37° (300 °/s) |
| Stroke (Speed) on Axis 4 | +/- 210° (550 °/s) |
| Stroke (Speed) on Axis 5 | +/- 137° (550° /s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (600° /s) |
| Repeatability (mm) | 0.05 |
| Tool coupling flange | ISO 9409 – 1 – A – 40 |
| Robot weight (Kg) | 173 |
| Protection class | IP65 |
| Mounting position | Floor / Ceiling / Sloping / Wall |
| Operating Areas A (mm) | 1279 |
| Operating Areas B (mm) | 999 |
| Operating Areas C (mm) | 904 |
| Operating Areas D (mm) | 554 |
| Operating Areas E (mm) | 385 |
Application:
- Assembly
- Machine Tending
- Cosmetic Sealing
- Handling / Packaging
- Measuring Testing
- Polishing Deburring
