AR2010 Used Yaskawa Robot 12kg Payload 2010mm Arm Industrial Robot
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
Payment & Shipping Terms:
| Price: | $21,764.00/sets >=1 sets |
|---|---|
| Packaging Details: | 6 axis robot arm YASKAWA AR2010 for robot arm welding 12kg Payload 2010mm arm Industrial robot<br>ONE YASKAWA MOTOMAN AR2010 industrial spot welding robot arm 6 Axis for Arc Welding machine packing with fumigation wooden frame, WG:1705KG<br>Controller and |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | 6 Axis Robot Arm YASKAWA AR2010 For Robot Arm Welding Industrial Robot | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 6 | Max. Payload: | 12kg |
| Repeatability: | ±0.08mm | Max. Working Range R: | 2010mm |
| Temperature: | 0-45 ℃ | Humidity: | 20%-80% |
| Weight: | 260kg | Power Supply, Average: | 2.0KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | AR2010 Used Yaskawa Robots,used 6 axis Arm Industrial Robot,Used Yaskawa Robot 12kg Payload |
||
Product Description

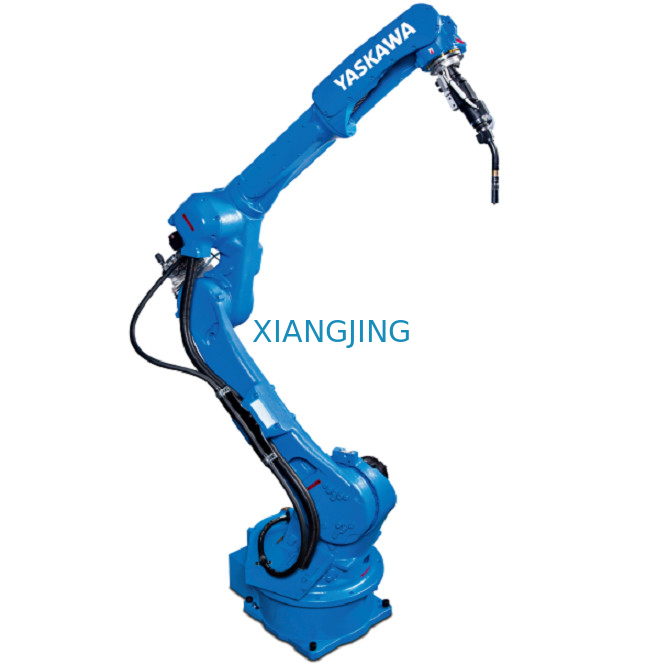

used 6 axis robot arm YASKAWA AR2010 for robot arm welding 12kg Payload 2010mm arm Industrial robot
The Yaskawa arc welding robot AR2010, with an arm span of 2010 mm, can carry a weight of 12KG, which maximizes the robot’s speed, freedom of movement and welding quality! The main installation methods of this arc welding robot are: floor type, upside-down type, wall-mounted type, and inclined type, which can meet the needs of users to the greatest extent.
Main
Specifications:
Model:AR2010
Maximum reach:2010mm
Maximum payload:12kg
Pose repeatability:± 0.08mm
Number of axes:6
Weight:260kg
| Product Name | YASKAWA AR2010 industrial robot 6 Axis robot arm for robot arm welding 12kg Payload 2010mm Arm |
| Model | AR2010 |
| Application | Arc Welding tasks |
| Maximum reach | 2010mm |
| Maximum payload | 12kg |
| Pose repeatability (ISO 9283) | ± 0.08mm |
| Number of axes | 6 |
| Mounting position | Floor, Wall, Ceiling |
| Weight | 260 kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |
| Motion range | |
| S | 180° to -180° |
| L | 155° to -105° |
| U | 160° tp -86° |
| R | 200° to -200° |
| B | 150° to -150° |
| T | 455° to -455° |
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
AR2010 Introduction:
The 6-axis robot MOTOMAN AR2010 of our AR series, thanks to its high path accuracy, is an optimal robot for arc welding applications.
With a payload of up to 12 kg and a wide working range of 2010 mm this robot supports welding of bulky workpieces. Its hollow arm design enables leading the welding cables and wire feeding through the arm to the wrist, which saves valuable space around it. The MOTOMAN AR2010 allows easy programming and enables high freedom of motion.
The wire feeder can be mounted in the prepared space at axis 3, supporting short distance and centric supply of the welding wire to the weld torch. The streamlined, slightly bowed arm structure reduces the interference area between the jigs and work pieces.
The robot is controlled by the YRC1000 controller which facilitates both programming and use with a wide range of functions specially designed for arc welding applications.
KEY BENEFITS
Wide motion range
High path accuracy
Easy programming
Less interferences due to optimized design
Applications:
Welding and simple machining of bulky and hard-to-access workpieces
