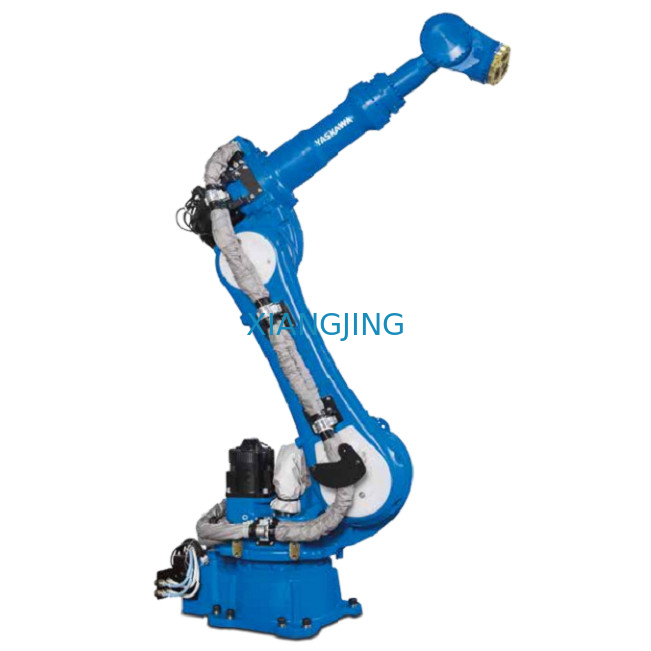

YASKAWA GP110 Pick And Place Machine 110kg Payload 2236mm Arm Industrial Robot
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | GP110 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 6 axis robot arm YASKAWA GP110 pick and place machine 110kg Payload 2236mm arm industrial robot<br>ONE YASKAWA GP110 industrial robot 6 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:805KG<br>Controller and other parts p |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | 6 Axis Robot Arm YASKAWA GP110 Pick And Place Machine Industrial Robot | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 6 | Max. Payload: | 110kg |
| Repeatability: | ±0.07mm | Max. Working Range R: | 2236mm |
| Temperature: | 0-45 ℃ | Humidity: | 20%-80% |
| Weight: | 660kg | Power Supply, Average: | 5.0KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | YASKAWA pick and place machine,2236mm Arm Industrial Robot,GP110 pick and place machine |
||
Product Description
used 6 axis robot arm YASKAWA GP110 pick and place machine 110kg Payload 2236mm arm industrial robot
The GP110 is perfect for a wide range of applications, including machine tending, material handling, material removal, assembly, additive manufacturing, dispensing and grinding/polishing.
The flexible MOTOMAN GP110 handling robot provides a payload of 110 kg and a maximum reach of 2236 mm.
This robot is also available with protection class IP65/67 to operate in harsh environments.
Main Specifications:
Model:GP110
Maximum reach:2236mm
Maximum payload:110kg
Pose repeatability:± 0.07mm
Number of axes:6
Weight:660kg
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
| Product Name | 6 axis robot arm YASKAWA GP110 pick and place machine 110kg Payload 2236mm arm industrial robot |
| Model | GP110 |
| Application | material handling, machine and press tending tasks |
| Maximum reach | 2236mm |
| Maximum payload | 110kg |
| Pose repeatability (ISO 9283) | ± 0.07mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Weight | 660 kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |

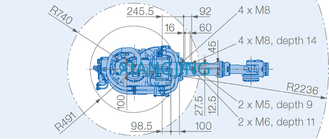

| Motion range | |
| S | 180° to -180° |
| L | 155° to -90° |
| U | 90° tp -80° |
| R | 360° to -360° |
| B | 125° to -125° |
| T | 360° to -360° |
GP110 Introduction:
The 6-axis MOTOMAN GP110 is a versatile, high speed robot offering superior performance for a variety of applications, for example material handling, machine and press tending.
Despite of providing a wide motion range and high payload of 110 kg, the MOTOMAN GP110 has a streamlined design, which allows extremely close positioning of several robots. Also the slim cable inlet reduces the robots width, therefore valuable floor space can be saved.
The MOTOMAN GP110 is available with the PLd Category 3 Functional Safety Unit (FSU).
KEY BENEFITS
Fast and flexible
Wide motion range: 2236 mm
High payload: 110 kg
Compact design
Slim cable inlet
Enhanced safety functions
Applications:
for a variety of applications, like material handling, machine and press tending
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
