6 Axis GP7 Used Yaskawa Robot Pick And Place Machine 7kg Payload 927mm
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | GP7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 6 axis robot arm YASKAWA GP7 pick and place machine 7kg Payload 927mm Arm industrial robot<br>ONE YASKAWA GP7 industrial robot 6 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:205KG<br>Controller and other parts packing |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | 6 Axis Robot Arm YASKAWA GP7 Pick And Place Machine Industrial Robot | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 6 | Max. Payload: | 7kg |
| Repeatability: | ±0.03mm | Max. Working Range R: | 927mm |
| Temperature: | 0-45 ℃ | Humidity: | 20%-80% |
| Weight: | 34kg | Power Supply, Average: | 1.0KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | 6 axis Used Yaskawa Robot,Pick And Place Machine 7kg Payload,GP7 Used Yaskawa Robot |
||
Product Description

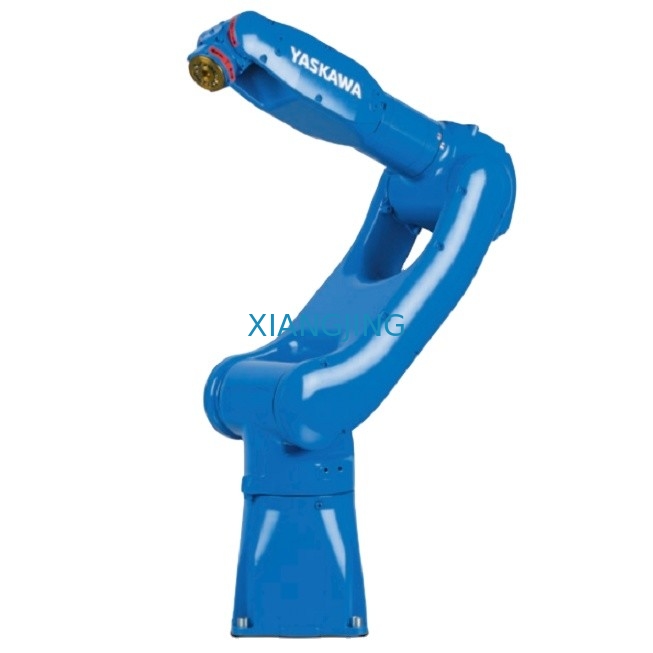

used 6 axis robot arm YASKAWA GP7 pick and place machine 7kg Payload 927mm Arm industrial robot
The MOTOMAN GP7 is an extremely fast and precise 6-axis industrial robot with a payload capacity of up to 7 kg. With a reach of 927 mm and a high repeatability of ± 0.01 mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. Its smooth and streamlined modern industrial design is attractive and minimizes the space requirements at the installation site. Cable entry is optionally from the side at the pedestal or from underneath through the base plate, thus enabling space-saving and uncluttered integration into its environment, irrespective of the intended installation position. The prepared routing of the supply lines in the arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package. A world of possibilities is open to the MOTOMAN GP7 with the numerous functions of the MOTOMAN YRC1000 controller or the compact MOTOMAN YRC1000micro controller. In conjunction with the conventional teach pendant, this robot is a reliable mechanical engineering partner. With the innovative operator control concept of the SmartPendant, it provides an excellent point of entry into the world of robotics. As standard, the MOTOMAN GP7 is designed with the high protection classification IP67. Other variants (e.g. with foodcompatible grease in the food industry, special anti-corrosion coating for applications in aggressive ambient conditions, or as a cleanroom version CR5) are optionally available.
KEY BENEFITS
• Extremely fast and powerful
• Compact and flexible
• Large working range: 927 mm
• Reduced interference contours due to optimized design
• Simple commissioning and maintenance
Main Specifications:
Model:GP7
Maximum reach:927mm
Maximum payload:7kg
Pose repeatability:± 0.03mm
Number of axes:6
Weight:34kg
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
| Product Name | 6 axis robot arm YASKAWA GP7 pick and place machine 7kg Payload 927mm Arm industrial robot |
| Model | GP7 |
| Application | Handling & General Application |
| Maximum reach | 927mm |
| Maximum payload | 7kg |
| Pose repeatability (ISO 9283) | ± 0.03mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Weight | 34kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |
| Motion range | |
| S | 170° to -170° |
| L | 145° to -65° |
| U | 190° tp -70° |
| R | 190° to -190° |
| B | 135° to -135° |
| T | 360° to -360° |
GP7 Introduction:
The MOTOMAN GP7 is an extremely fast and precise 6-axis industrial robot with a payload capacity of up to 7 kg. With a reach of 927 mm and a high repeatability of ± 0.03 mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. Its smooth and streamlined modern industrial design is attractive and minimizes the space requirements at the installation site.
Cable entry is optionally from the side at the pedestal or from underneath through the base plate, thus enabling space-saving and uncluttered integration into its environment, irrespective of the intended installation position. The prepared routing of the supply lines in the arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package.
A world of possibilities is open to the MOTOMAN GP7 with the numerous functions of the MOTOMAN YRC1000 controller or the compact MOTOMAN YRC1000micro controller. In conjunction with the conventional teach pendant, this robot is a reliable mechanical engineering partner. With the innovative operator control concept of the SmartPendant, it provides an excellent point of entry into the world of robotics.
As standard, the MOTOMAN GP7 is designed with the high protection classification IP67. Other variants (e.g. with foodcompatible grease in the food industry, special anti-corrosion coating for applications in aggressive ambient conditions, or as a cleanroom version) are optionally available.
KEY BENEFITS
• Extremely fast and powerful
• Compact and flexible
• Large working range: 927 mm
• Reduced interference contours due to optimized design
• Simple commissioning and maintenance
Applications:
Handling & General Application
1.Swift delivery
For common parts, we can deliver the goods within 3 days
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
Including inspection,repair and maintenance, we can give all kinds of technical support.
Our staffs will keep 24h online and answer your question very quickly.
