YASKAWA SIA20F Used 7 Axis Robot Arm Pick And Place Machine 910mm
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | YASKAWA SIA20F |
Payment & Shipping Terms:
| Price: | $28,818.00/sets >=1 sets |
|---|---|
| Packaging Details: | 7 axis robot arm YASKAWA SIA20F pick and place machine 20kg Payload 910mm Arm industrial robot<br>ONE YASKAWA SIA20F industrial robot 7 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:205KG<br>Controller and other parts p |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | 7 Axis Robot Arm SIA20F Pick And Place Machine Industrial Robot | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 7 | Max. Payload: | 20kg |
| Repeatability: | ±0.1mm | Max. Working Range R: | 910mm |
| Temperature: | 0-40 ℃ | Humidity: | 20%-80% |
| Weight: | 120kg | Power Supply, Average: | 2.2KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | used 7 axis robot arm,Pick And Place Machine 910mm,YASKAWA 7 axis robot arm |
||
Product Description
used 7 axis robot arm YASKAWA SIA20F pick and place machine 20kg Payload 910mm Arm industrial robot
The 7-axis actuator-based design and best-in-class wrist performance characteristics for the SIA20D provide amazing freedom of movement, coupled with ability to maneuver in very tight areas. Superior dexterity enables robot to reorient elbow(s) without affecting hand position or causing self-interference.
Yaskawa Motoman SIA20 Compact 7 Axis Robot Equipped with NX100 Controller, Teach Pendant, and all Cables included. Pulled from a working environment. Previously used for a machine tending application.
- Robot Model: SIA20
- Control Cabinet Model: NX100
- Control Cabinet Part Number: ERCR-SIA20-AB00
- Voltage: 480Vac 3 Phase
- MFG Date: 12-2008
- Teach Pendant Model: JZRCR-NPP01B-1
Main Specifications:
Model:SIA20F
Maximum reach:910mm
Maximum payload:20kg
Pose repeatability:± 0.1mm
Number of axes:7
Weight:120kg
| Product Name | 7 axis robot arm YASKAWA SIA20F pick and place machine 20kg Payload 910mm Arm industrial robot |
| Model | SIA20F |
| Application | Flexible applications |
| Maximum reach | 910mm |
| Maximum payload | 20kg |
| Pose repeatability (ISO 9283) | ± 0.1mm |
| Number of axes | 7 |
| Mounting position | Floor, ceiling, wall |
| Weight | 120kg |
| Protection rating | IP67 |
| Controller | FS100 |
| Motion range | |
| S | 180° to -180° |
| L | 110° to -110° |
| U | 130° tp -130° |
| R | 180° to -180° |
| B | 110° to -110° |
| T | 180° to -180° |
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload

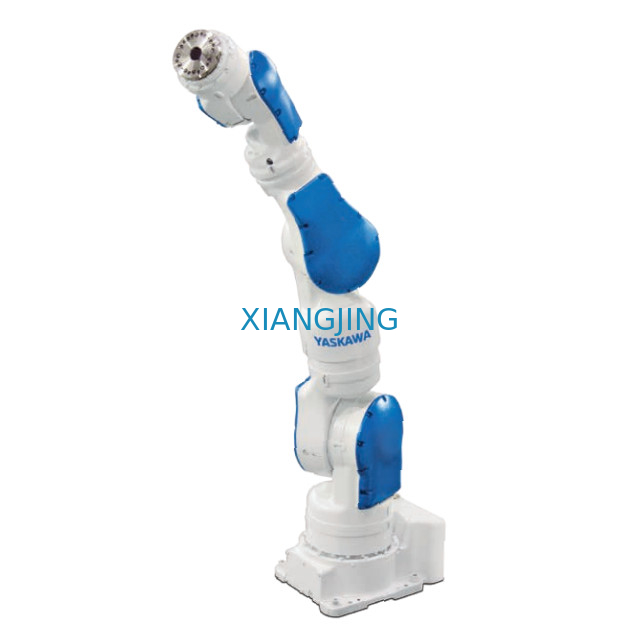

SIA20F Introduction:
The SIA-series are small and agile 7-axis robots providing "human-like" flexibility of movement and fast acceleration.They distinguish themselves through slim and lightweight design. They offer high payload and big working ranges.
These agile and versatile robots open up a wide range of industrial applications: ideal for assembly, injection moulding, inspection, machine tending and a host of other operations.
This robots are driven by the compact MOTOMAN FS100 controller.
KEY BENEFITS
• 7 axes
• Flexible applications
• Compact design allows maximum performance
Applications:
Flexible applications
1.Swift delivery
For common parts, we can deliver the goods within 3 days
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
Including inspection,repair and maintenance, we can give all kinds of technical support.
Our staffs will keep 24h online and answer your question very quickly.
