MPX1950 Used Yaskawa Robot For Painting 7kg Payload 1450mm Arm Robots
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | MPX1950 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Industrial robot arm YASKAWA MPX1950 for painting 7kg Payload 1450mm Arm robots<br>ONE YASKAWA MXP1950 industrial robot 6 Axis robot arm for painting machine packing with fumigation wooden frame, WG:105KG<br>Controller and other parts packing with brown bo |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Industrial Robot Arm YASKAWA MPX1950 For Painting Robots | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 6 | Max. Payload: | 7kg |
| Repeatability: | ±0.15mm | Max. Working Range R: | 1450mm |
| Temperature: | 0-40 ℃ | Humidity: | 20%-80% |
| Weight: | 265kg | Power Supply, Average: | 2.5KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | MPX1950 Used Yaskawa Robot,1450mm Arm Robots,painting Used Yaskawa Robot |
||
Product Description

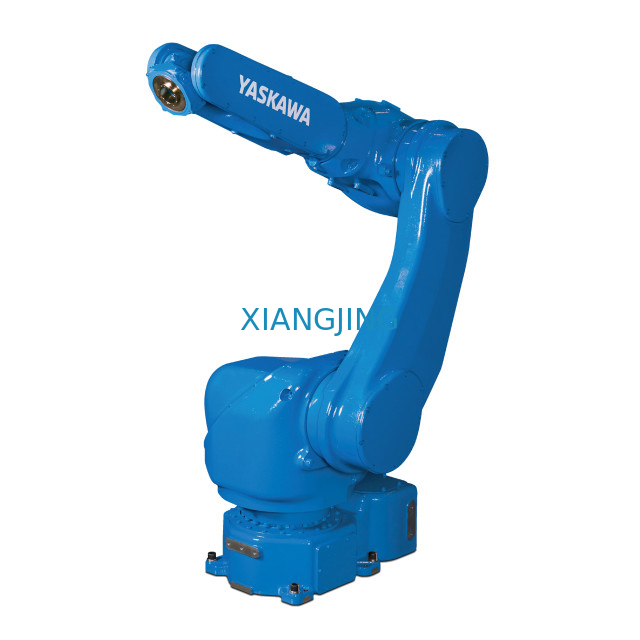

second hand Industrial robot arm YASKAWA MPX1950 for painting 7kg Payload 1450mm Arm robots
The MPX1950 is a medium-sized painting robot which provides a payload of 7 kg.
The smooth arm design with a large hollow diameter is optimal for tubing and can prevent interferences among paint and air tubes.
| Product Name | Industrial robot arm YASKAWA MPX1950 for painting 7kg Payload 1450mm Arm robots |
| Model | MXP1950 |
| Application | Painting |
| Maximum reach | 1450mm |
| Maximum payload | 7kg |
| Pose repeatability (ISO 9283) | ± 0.15mm |
| Number of axes | 6 |
| Mounting position | Floor, celling, wall |
| Weight | 265kg |
| Protection rating | IP65 |
| Controller | DX200 controller |

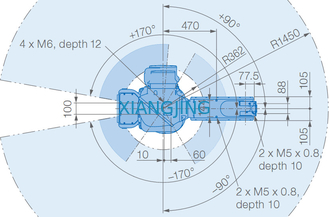

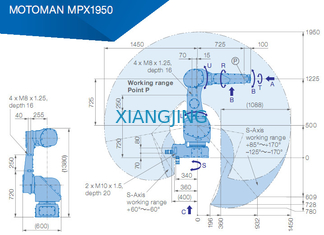

| Motion range | |
| S | 170° to -170° |
| L | 140° to -100° |
| U | 235° tp -62° |
| R | 200° to -200° |
| B | 150° to -150° |
| T | 400° to -400° |
Main Specifications:
Model:MXP1950
Maximum reach:1450mm
Maximum payload:7kg
Pose repeatability:± 0.15mm
Number of axes:6
Weight:265kg
KEY BENEFITS
• Payload up to 7 kg for mounting multiple guns and large bells
• Elegant design for optimal tubing and prevention of interferences
• Optimized accuracy
• Pressurized enclosure for explosion protection
– Leakage compensation method to achieve positive pressure
– Requires less air than other air flow methods
• Flexible mounting options
– Floor, wall, ceiling
– Two selectable access points for power cables
(from back and bottom)
• Optimized range of motion
S/L axis designed with no offset for
– Effective use of area under the arm and
– Closer installation of the robot arm to a work piece
Applications:
Painting
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
MPX1950 Introduction:
The MOTOMAN MPX1950 painting robot provides a payload of 7 kg, which enables mounting of multiple guns and bells on this medium-sized robot. The smooth arm design with a large hollow diameter is optimal for tubing and can prevent interferences among paint and air tubes. On the U-Axis and L-Arm can be mounted up to 3 kg additionally paint equipment.
Using the leakage compensation method to achieve positive pressure inside the enclosure, less air during operation is required, compared to the conventional air flow method. The MOTOMAN MPX1950 can be mounted on the floor, wall or ceiling and has two selectable access points for power cables. The S/L axis is designed with no offset to enable the effective use of the area under the arm and closer installation to a work piece.
The MOTOMAN MPX1950 is controlled by the high-performance MOTOMAN DX200 controller, which is available with optional Functional Safety Unit (FSU) that offers a wide range of new safety functions.
