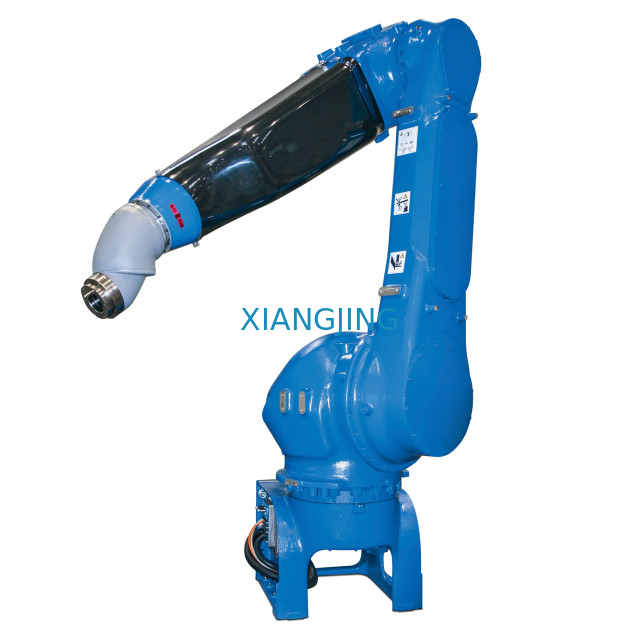

MPX3500 Used Yaskawa Robot For Painting 15kg Payload 2700mm Arm Robots
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | YASKAWA MPX3500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Industrial robot arm YASKAWA MPX3500 for painting 15kg Payload 2700mm Arm robots<br>ONE YASKAWA MPX3500 industrial robot 6 Axis robot arm for painting machine packing with fumigation wooden frame, WG:705KG<br>Controller and other parts packing with brown b |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Industrial Robot Arm YASKAWA MPX3500 For Painting Robots | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 6 | Max. Payload: | 15kg |
| Repeatability: | ±0.15mm | Max. Working Range R: | 2700mm |
| Temperature: | 0-40 ℃ | Humidity: | 20%-80% |
| Weight: | 560kg | Power Supply, Average: | 3.0KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | 2700mm Used Yaskawa Robot,Painting robot arm 6 axis,MPX3500 Used Yaskawa Robot |
||
Product Description
used Industrial robot arm YASKAWA MPX3500 for painting 15kg Payload 2700mm Arm robots
| Axes | 6 |
| Payload | 15 kg |
| Reach | 2000 mm |
| Repeatability | 0.2 mm |
| Robot Mass | 485 kg |
| Product Name | Industrial robot arm YASKAWA MPX3500 for painting 15kg Payload 2700mm Arm robots |
| Model | MPX3500 |
| Application | Painting |
| Maximum reach | 2700mm |
| Maximum payload | 15kg |
| Pose repeatability (ISO 9283) | ± 0.15mm |
| Number of axes | 6 |
| Mounting position | Floor, celling, wall |
| Weight | 560kg |
| Protection rating | IP65 |
| Controller | DX200 controller |
| Motion range | |
| S | 150° to -150° |
| L | 140° to -65° |
| U | 90° tp -65° |
| R | 720° to -720° |
| B | 720° to -720° |
| T | 720° to -720° |
The MPX3500 is a high-speed, compact six-axis robot ideal for painting contoured parts such as interior/exterior surfaces.
Its hollow wrist design has an inside diameter of 70 mm, making it well-suited for mounting spray equipment applicators.
Offers superior performance and creates smooth, consistent finish with outstanding efficiency for painting and dispensing applications.
Can be floor, wall or ceiling mounted for layout flexibility.
Features of the DX200-FM paint robot controller coordinates operation of robot and painting devices, including spray gun, color changer and gear pump. It also supports gun control instructions and is compatible with standard networks for connection to paint equipment controllers and production line.
Main Specifications:
Model:MPX3500
Maximum reach:2700mm
Maximum payload:15kg
Pose repeatability:± 0.15mm
Number of axes:6
Weight:560kg
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
MPX3500 Introduction:

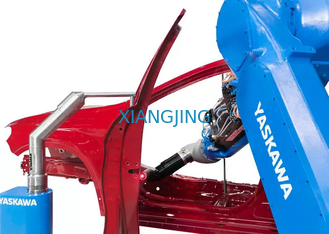

The fast and flexible MOTOMAN MPX3500 offers high performance in painting automobile bodies, bumpers, construction equipment and further more. A high-density layout saves space by reducing the size of the painting booth. The L axis is designed with no offset to enabled installation of the manipulator closer to a work piece, which saves space.
The time required for teaching large cells can be shortened by converting the data created for the robot on one side for the robot on the opposite side. The hoses and tubes of the MOTOMAN MPX3500 can be routed inside the wrist section to prevent interferences. The process arm and high payload of this robot allows the mounting of large bell applicators, which enable multi-color painting.
The MOTOMAN MPX3500 is controlled by the high-performance MOTOMAN DX200 controller, which is available with the optional Functional Safety Unit (FSU) that offers a wide range of new safety functions.
KEY BENEFITS
• Flexible, fast and versatile
• Compact design
• Large motion range: Front area 2700 mm; wall mounted 3500 mm
• High Payload of wrist: 15 kg
• Process arm with enough space for potential separator and process technology
• Easy programming and installation
• Great availability
Applications:
Painting
