Industrial YASKAWA AR2010 6 axis welding robot arm manipulator and 12 kg payload 2010 reach wire feed system and welder
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | YASKAWA |
| Certification: | ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Packed with fumigation wooden box |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Welding Robot |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor, Gear | Warranty: | 1 Year |
| Key Selling Points: | Famous Brand PLC | Weight (KG): | 178KG |
| Voltage: | 200-600 V | Current: | 40 |
| Rated Duty Cycle: | 60% | Usage: | Welding, For Welding |
| After-sales Service Provided: | YASKAWA AR2010 Welding Robot With 12 Kg Payload And 1440mm, Video Technical Support, Online Support | Type: | Robot |
| Model: | AR 2010 | Reach: | 2010MM |
| Payload: | 12 Kg | Position Repeatability RP (mm): | 0.06 |
| Axes: | 6 | Product Name: | YASKAWA Welding Robot |
| Weight: | 260 Kg | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | None | Port: | Shanghai |
Product Description
Used Industrial YASKAWA AR2010 6 axis welding robot arm manipulator and 12 kg payload 2010 reach wire feed system and welder source

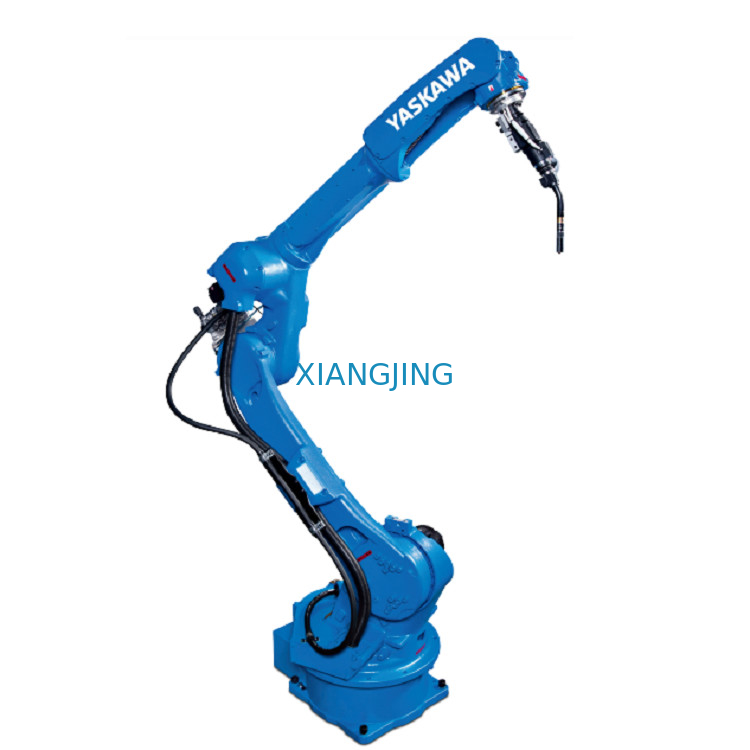

The 6-axis robot MOTOMAN AR2010 of our AR series, thanks to its high path accuracy, is an optimal robot for arc welding applications. With a payload of up to 12 kg and a wide working range of 2010 mm this robot supports welding of bulky workpieces. Its hollow arm design enables leading the welding cables and wire feeding through the arm to the wrist, which saves valuable space around it. The MOTOMAN AR2010 allows easy programming and enables high freedom of motion. The wire feeder can be mounted in the prepared space at axis 3, supporting short distance and centric supply of the welding wire to the weld torch. The streamlined, slightly bowed arm structure reduces the interference area between the jigs and work pieces. The robot is controlled by the YRC1000 controller which facilitates both programming and use with a wide range of functions specially designed for arc welding applications.
| Specification | |
| Product name | Industrial YASKAWA AR2010 6 axis welding robot arm manipulator and 12 kg payload 2010 reach wire feed system and welder source |
| Model | AR 2010 |
| Maximum reach | 2010mm |
| Maximum payload | 12 kg |
| Pose repeatability (ISO 9283) | ± 0.06 mm |
| Number of axes | 6 |
| Mounting position | Floor/ Ceiling/Wall |
| Footprint | 179 mm x 179 mm |
| Weight | approx. 260 kg |
| Protection rating | IP67 |
| Controller | YRC1000 |
| Motion range | |
| A1 | ±170° |
| A2 | (+155/–90) |
| A3 | (+155/–85) |
| A4 | ±200° |
| A5 | ±150° |
| A6 | ±450° |
