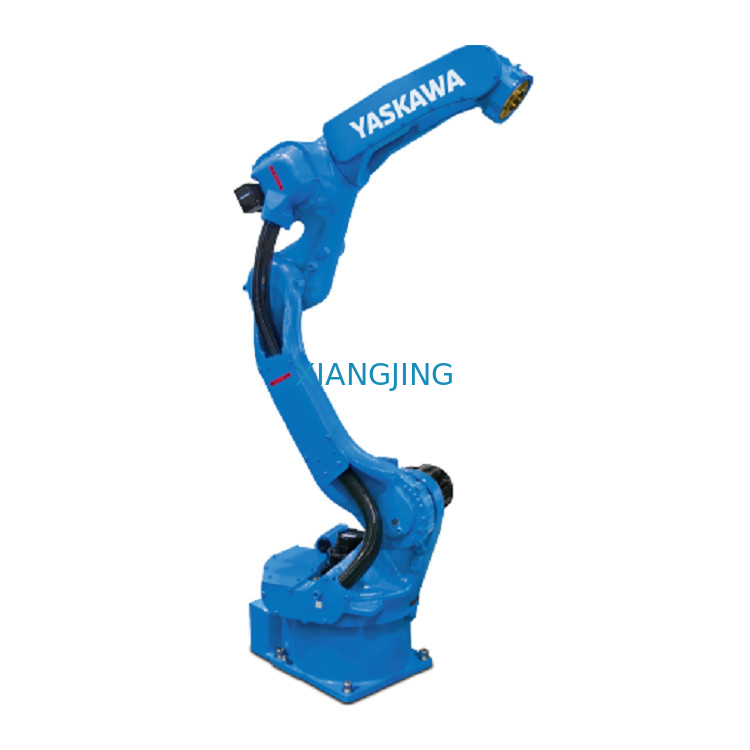

Used YASKAWA GP12 6 Axis Industrial Robotic Arm For Packing Milling Assembly
Product Details:
| Place of Origin: | China |
| Brand Name: | YASKAWA |
| Certification: | ISO |
| Model Number: | GP12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | YASKAWA GP12 6 axis industrial robotic arm for packing,milling,welding,assembly,painting robots Packed with fumigation wooden box |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction Works , Energy & Mining, Other, Advertising Company | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Horizonal Travel(mm): | 1440MM | Weight: | 150 Kg, 150 Kg |
| Power: | 380V | Warranty: | 1 Year |
| Weight (KG): | 160 Kg | After-sales Service Provided: | YASKAWA GP12 Industrial Robotic Arm, Online Support |
| Type: | Robot | Usage: | Acking,milling,welding,assembly,painting |
| Model: | GP12 | Reach: | 1440 |
| Payload: | 12 Kg | Position Repeatability RP (mm): | 0.06 |
| Axes: | 6 | Product Name: | YASKAWA Industrial Robot |
| After Warranty Service: | Video Technical Support, Spare Parts | Local Service Location: | None |
| Port: | Shanghai | ||
| High Light: | YASKAWA industrial robotic arm,GP12 used Robot Arms,6 axis industrial robotic arm |
||
Product Description
used YASKAWA GP12 6 axis industrial robotic arm for packing,milling,welding,assembly,painting robots
The MOTOMAN GP12 is a fast and precise 6-axis industrial robot with a payload capacity of up to 12 kg. With a reach of 1440 mm and a high repeatability of ± 0.02 mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. Its streamlined modern industrial design minimizes the space requirements at the installation site. The prepared routing of the supply lines through the hollow arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package. This reduces also interference contours. With the MOTOMAN GP12 and numerous functions of the MOTOMAN YRC1000 controller or the compact MOTOMAN YRC1000 micro controller a wide range of applications can be realized. In conjunction with the conventional teach pendant, this robot is a reliable mechanical engineering partner. With the innovative operator control concept of the Smart Pendant, it provides an excellent point of entry into industrial automation.
| Specification | |
| Product name | YASKAWA GP12 6 axis industrial robotic arm for packing,milling,welding,assembly,painting robots |
| Model | GP12 |
| Maximum reach | 1440mm |
| Maximum payload | 12 kg |
| Pose repeatability (ISO 9283) | ± 0.06 mm |
| Number of axes | 6 |
| Mounting position | Floor/ Ceiling/Wall |
| Footprint | 179 mm x 179 mm |
| Weight | approx. 160 kg |
| Protection rating | IP67 |
| Controller | YRC1000 |
| Motion range | |
| A1 | ±170° |
| A2 | (+155/–90) |
| A3 | (+155/–85) |
| A4 | ±200° |
| A5 | ±150° |
| A6 | ±450° |
